BatterIes and chargIng
The TEN-RALLY X RTR uses rechargeable Ni-MH or Li-Po batteries. These batteries
all have special requirements to preserve performance and last.
• Read all instructions provided by the manufacturer of the batteries.
• Never allow minors to charge battery packs.
• Always check to ensure the polarity of the battery connection is correct.
• Never leave batteries unattended while charging. • Never charge a battery while it is installed in the TEN-RALLY X RTR.
• Do not charge any battery that appears to have any damage.
• If there are exposed wires, do not charge or use the battery until you install shrink-wrap
or replace the complete wire.
When charging Ni-MH or Li-Po batteries, select a charger to meet your requirements. You need
a charger that is a 100–240V wall charger or one which requires a 12V power supply. Follow
the charger manufacturer’s instructions and precautions during each use.
BAck
mIDDLE
FORWARD
three-posItIon Battery tray

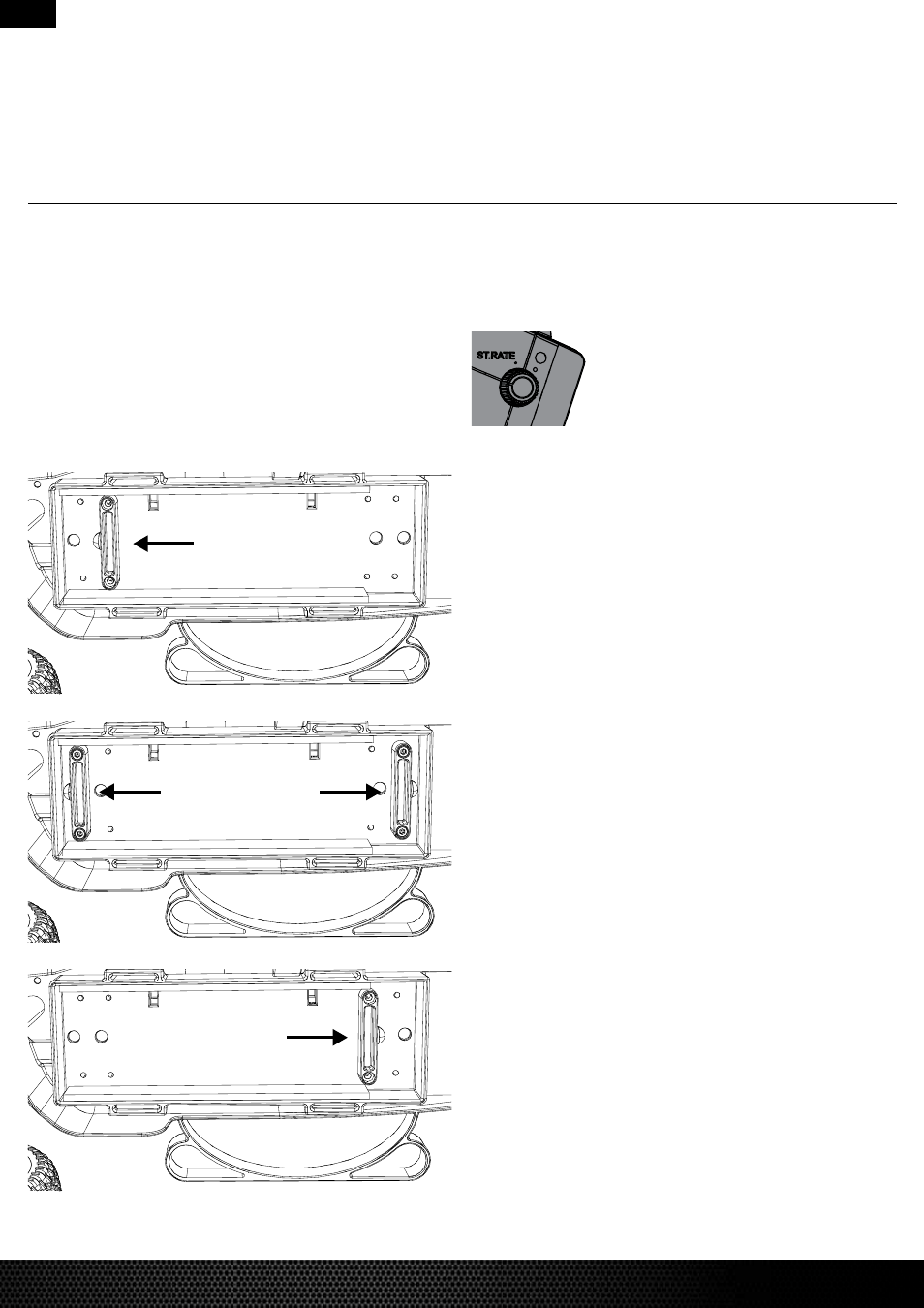

Your TEN-RALLY X RTR comes with a three-position battery tray to alleviate the need for foam
blocks. You can move the included battery stops in order to run the battery in a back, middle,
or forward position. Please see the pictures as follows:
LOSI TEN-RALLY X RTR • INSTRucTION mANuAL 6
poWerIng on the VehIcle
1. Center the ST TRIM and TH TRIM dials on the transmitter.
2. Power on the transmitter.
3. Remove the body from the vehicle.
4. Connect a fully charged battery pack to the ESC.
5. Power on the ESC. The vehicle and receiver MUST remain motionless for at least 2 seconds.
6. Re-install the body on the vehicle.
aVc sensItIVIty
The ST RATE dial adjusts the sensitivity, or stability, value in the receiver. If you increase the
sensitivity, the AVC system becomes more sensitive to the vehicle drifting left or right. You
would use maximum sensitivity during high speed driving or drag racing, when you want
the vehicle to stay in a straight line. As the sensitivity value increases, the amount of
steering travel decreases.
Turn the ST RATE knob counter-clockwise to reduce the sensitivity.
Turn the ST RATE knob clockwise to increase the sensitivity.
ImPORTANT: The ST RATE knob will only adjust the sensitivity
when the transmitter is bound to a DSMR receiver. When the
transmitter is bound to a DSM, DSM2 or DSM Marine receiver,
the ST RATE knob controls the steering dual rate.
130a sensorless Brushless esc
(dyn4955)
ESc PROGRAmmING PROcEDuRE
Programming can be accomplished using the SET button on the on/off switch or Digital
Program Box (DYN3748).
1. Connect a battery to the ESC.
2. Power on the ESC using the ESC switch.
3. Hold the SET button for 1 second until the green LED blinks, then release the SET
button to enter programming mode.
4. Press and release the SET button as needed to get to the desired menu option (the
Green LED will blink corresponding to the menu item number). Programming menu
items 1 through 9 are accessible using the SET button on the ESC. Programming menu
items 10 and above are only accessible using the optional ESC programming card.
Programming of menu items 10 and 11 is only possible after firmware updates
to the ESC programming card.
5. When at the desired menu item, press the SET button for 3 seconds until
the red LED blinks.
6. Press the SET button to move among the settings based on how many times
the red LED blinks (Refer to the table for more information).
7. Save the setting by pressing the SET button for 3 seconds.
8. Power off the ESC switch and repeat instructions above to change other settings.
Tip: If desired, the ESC programming can be returned to default settings by powering
on the ESC switch and pressing the SET button for 5 seconds.
