7. System Overview
KBox C-101 – User’s Guide (Version 2.00)
7.7.1. Integrated COMe Module
Depending on the ordered system configuration, your KBox C-101 accommodates a baseboard with either a COMe-bHL6
i5-4402E or a COMe-bHL6 i7-4700EQ module.
9
8
1
2
4
5
6
3
7

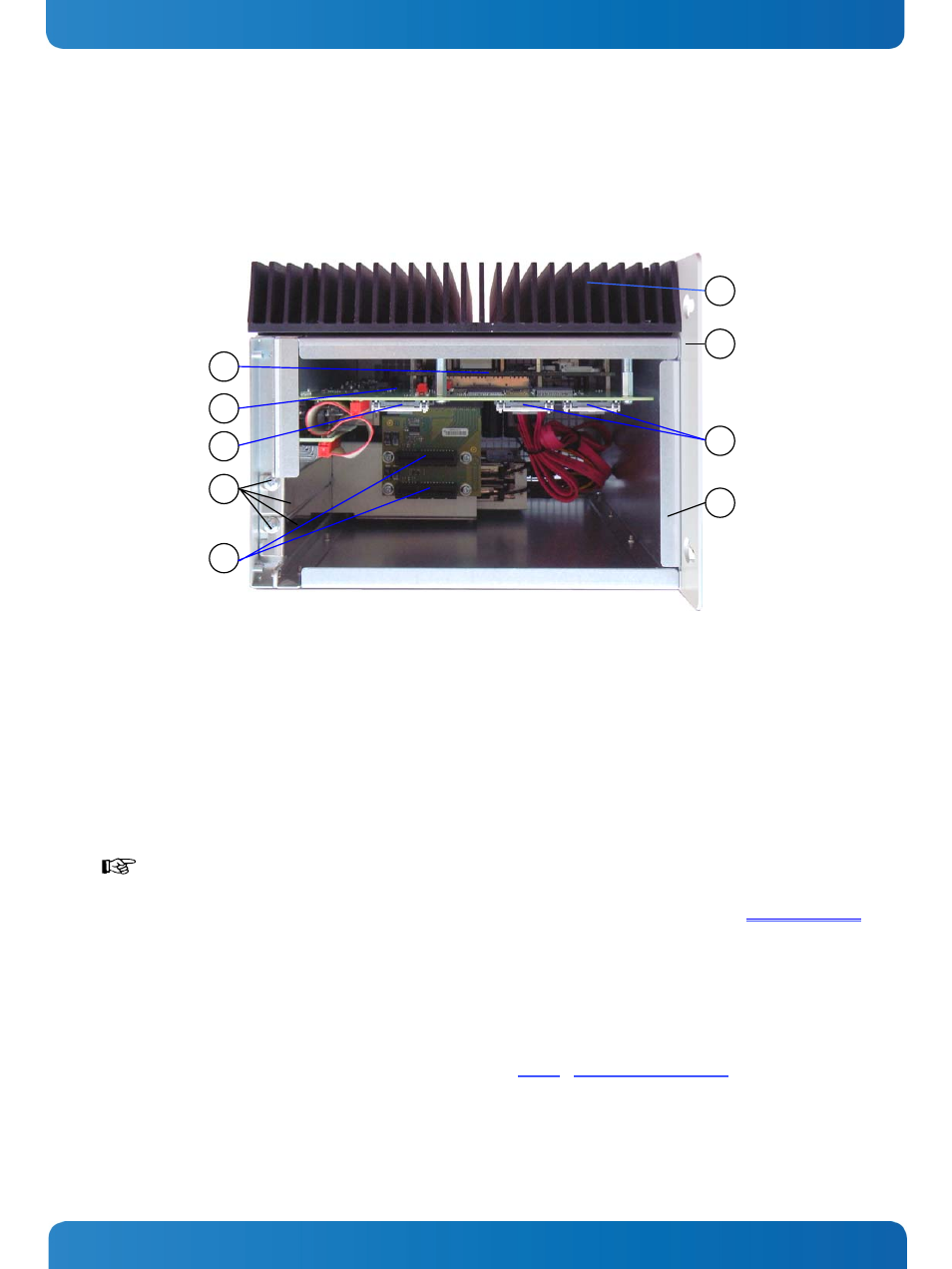

Fig. 28: KBox C-101 - internal view with COM Express module
1 COM Express module
2 Baseboard
3 Mechanical fixing assemblies for 1x PCIe Mini card;
(two fixing bolts for each PCIe Mini card)
4 Screws that secure the PCIe slot brackets
5 Riser card with 2x PCIe x4 slots
6 Cover retaining plate on the rear side
7 Mechanical fixing assemblies for 2x 2.5" mSATA SSD
(two fixing bolts for each mSATA SSD)
8 Upper mounting bracket with key holes
9 Cooling fins
Refer to the information and technical data in the user manual of the installed COMe-bHL6 i5-4402E / i7-
4700EQ Module.
The user’s manual of the installed COMe Module can be downloaded from our web page
.
Search for the name of the installed board.
7.7.2. mSATA Socket
Depending on the system configuration ordered your KBox C-101 can be extended with up to two mSATA SSD.
For installation/removing of the mSATA SSD refer to the subsection 10.2.3, “Installing an mSATA SSD”.
