Installing a Solid-State Drive on the Server Board
1. Remove the back chassis cover. For instructions, see “Removing the Back Cover” in
Section 3.2.
2. Remove the riser card assembly. For instructions, see “Removing the Riser Card
Assembly” in Section 3.2.
3. Remove the processor air duct. For instructions, see “Removing the Processor Air
Duct” in Section 3.2.
4. Locate the white plastic standoff on the server board. (Figure 52, “A”)
5. Insert the drive module onto the server board by connecting the drive module to
the standoff on the server board and the USB connector on the drive module onto the
server board USB header. (“B”)
6. If this is the last task you are performing, re-install the processor air duct, the
riser card assembly, and the back chassis cover. Reconnect all external devices and
the power cord(s).

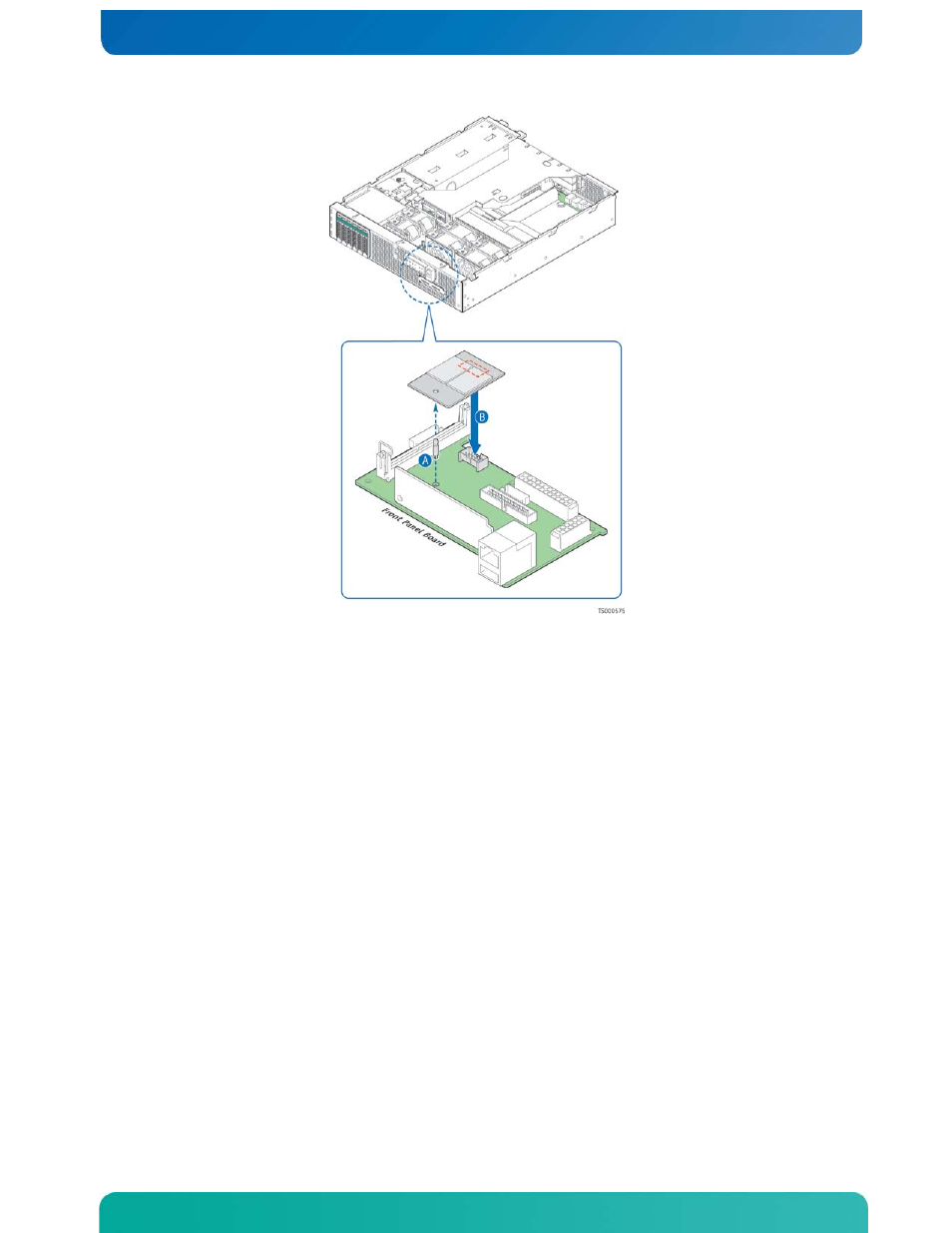

Figure 52. Installing the SSD on the Server Board
