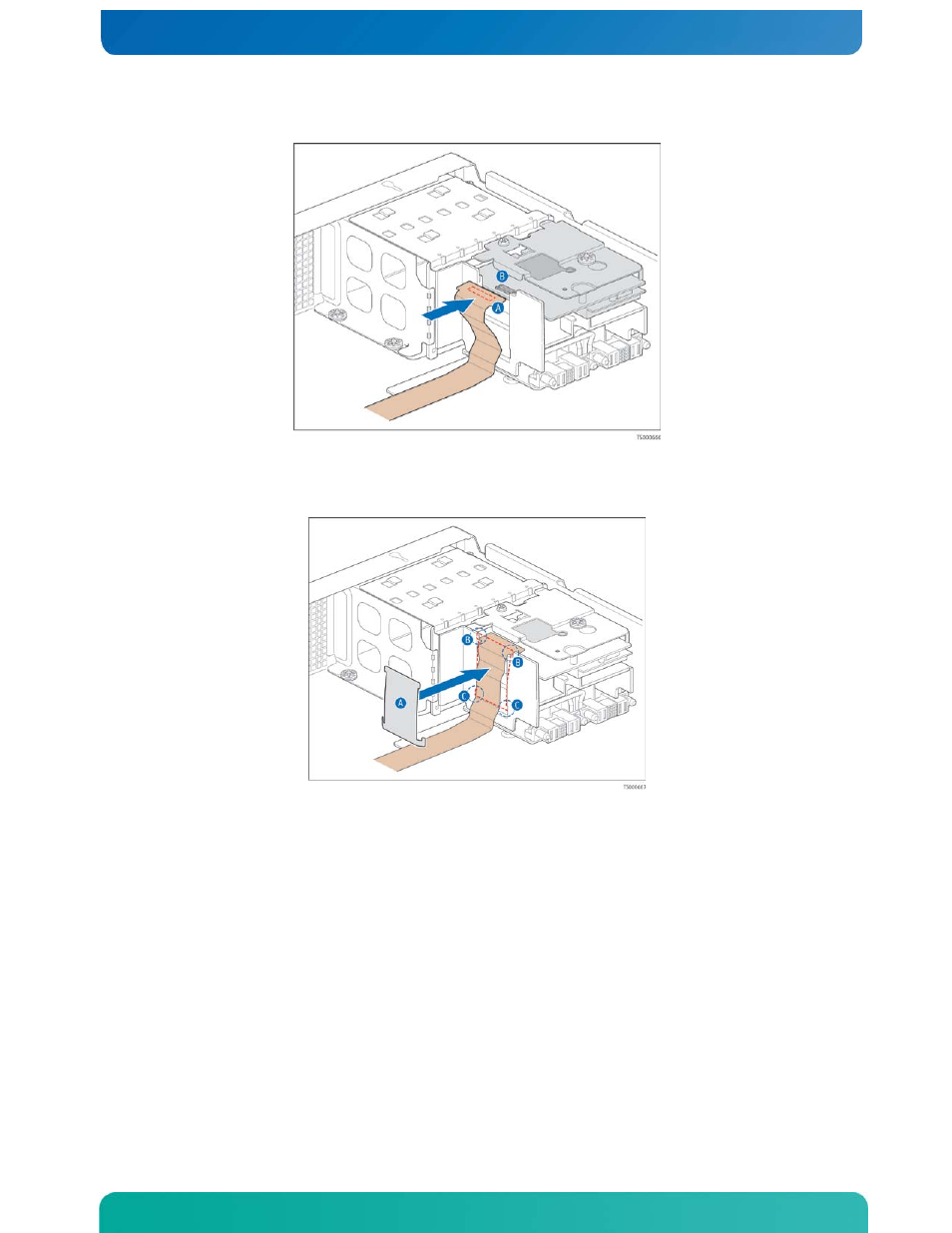

Figure 33. Attaching the Flex Circuit Cable

8.

Place the plastic protective cover (Figure 34, “A”) over the flex cable and snap it

into the grooves on the side wall (“B” and “C”)

Figure 34. Installing the Flex Circuit Cable Cover

9.

Place the metal retention clip over the flex circuit cable connector. (Figure 35,

“A”) and secure it with the screw (“B”).
