54
6. Connect the USB cable to the 2x3 USB connector on the front panel board (Figure 49,
“A”)

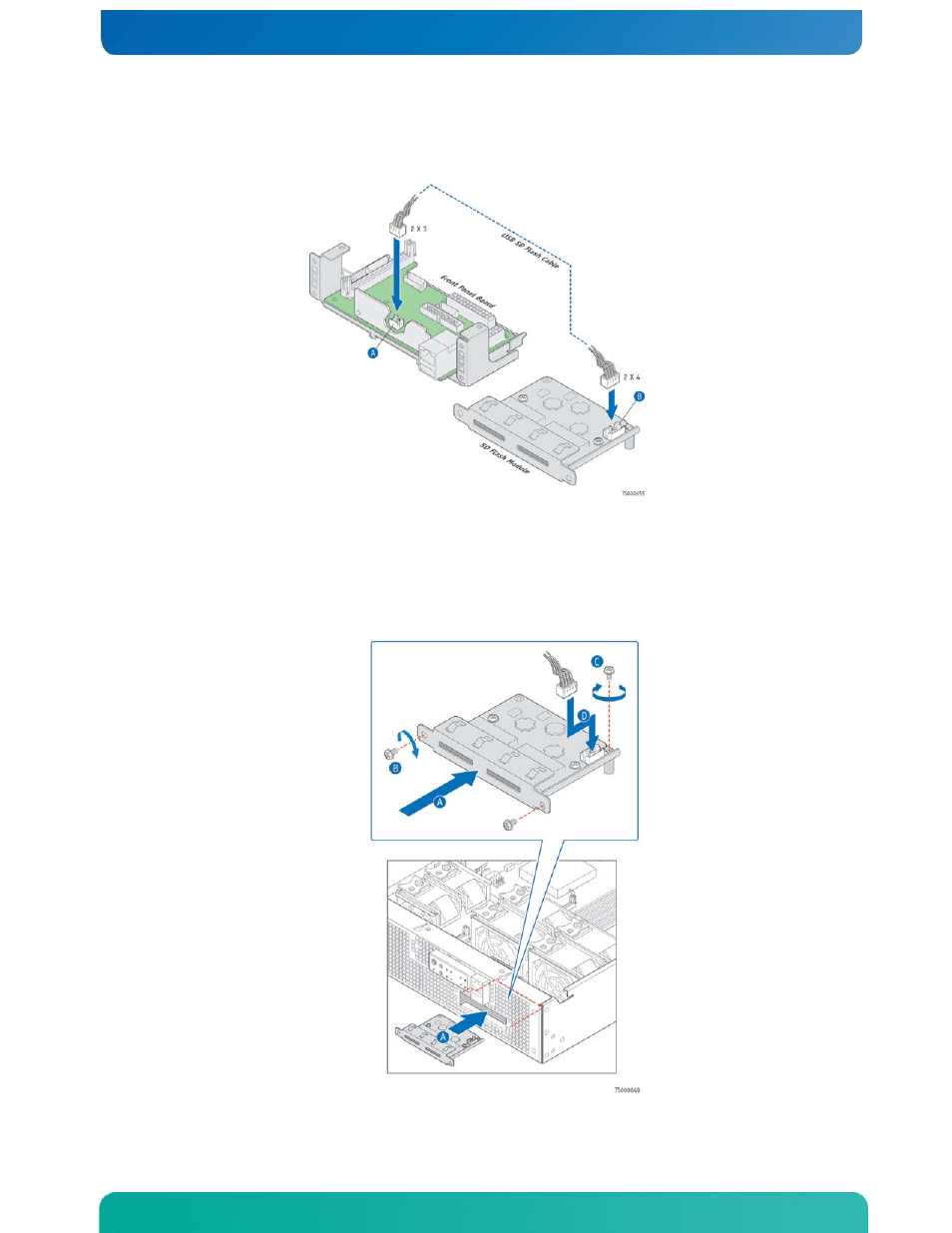

Figure 49. Connecting the USB Cable
7. Insert the SD flash module bracket from the front of the chassis. (Figure 50, “A”)
8. Fasten the bracket with the two screws that were used to attach the filler panel
originally. (“B”)
Figure 50. Attaching the SD Module Bracket to the Front Panel
9. Secure the SD flash module to the FP board with the screw provided. (“C”)
