11. Slide Rails (Option) KISS 4U V2 EATX – User's Guide (Version 1.02)
11.
Slide Rails (Option)
Kontron offers slide rails for installing the KISS 4U V2 EATX platform into a 19" industrial cabinet. These can be ordered
separately.
The KISS 4U V2 EATX system should be installed into a 19" industrial cabinet with slide rails
(PN: 1016-5807). Use therefore the rack slide rails mounting kit for KISS 1U and KISS 2U/4U V2 systems
(PN: 1051-7200).

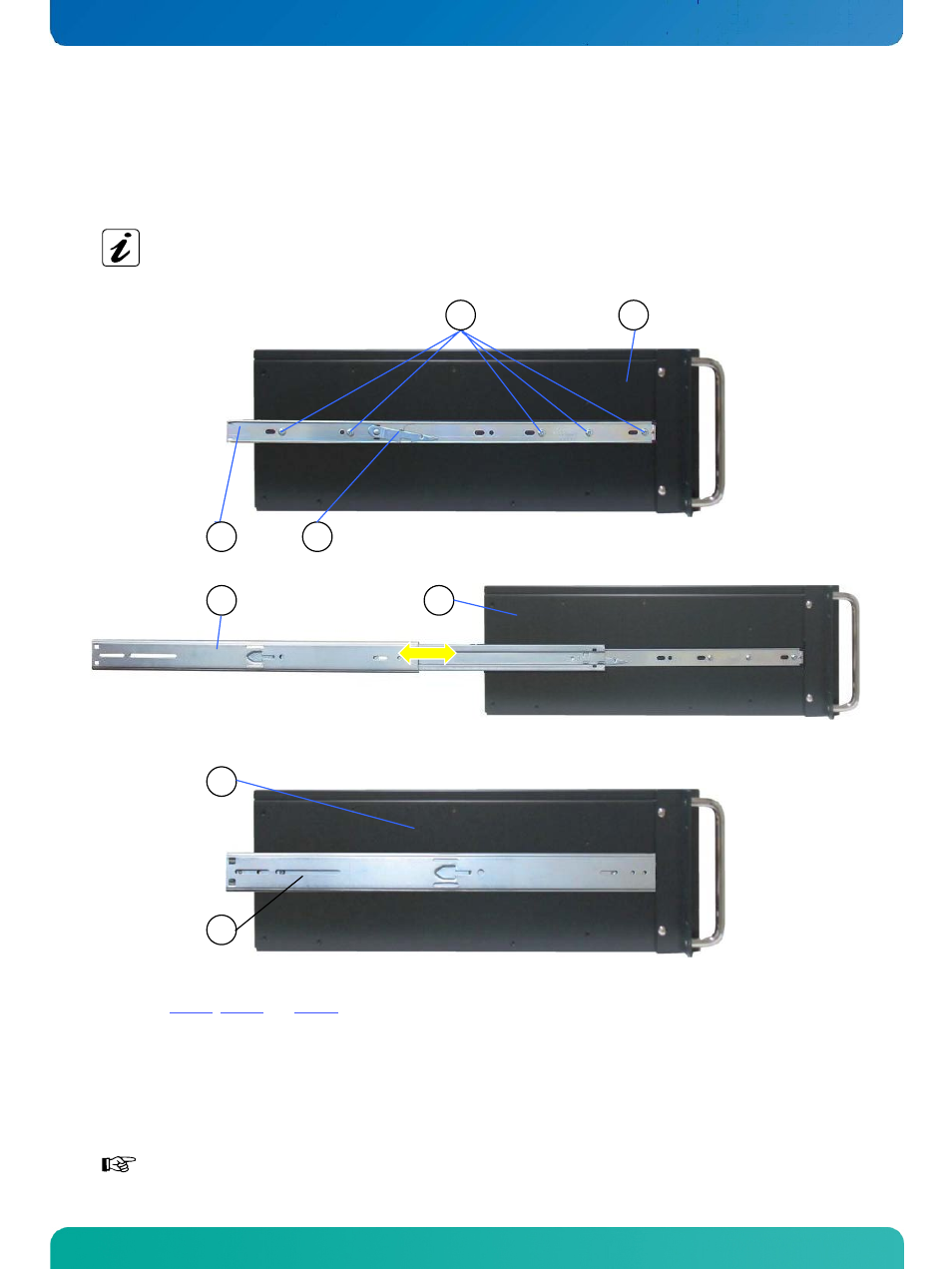

Fig. 51: Attaching the inner part to a KISS 4U V2 EATX platform
Fig. 52: KISS 4U V2 EATX platform with slide rail in pulled-out position
1
4
5 1
1
6
3
2
Fig. 53: KISS 4U V2 EATX platform with slide rail in pushed-in position
Legend for: Fig. 51, Fig. 52 and Fig. 53:
1 Side view of the KISS 4U V2 EATX 4 Locking/unlocking lever
2 5x M4x6 rounded head screws
(per each side of the unit)
5 Slide rail in pulled-out position
6 Slide rail in pushed-in position
3 Inner part of the slide rail
Please note that only the specified (M4x6) screws should be used to attach telescope rails to the
KISS 4U V2 EATX platform.
