Components of the KISS-Stor 1
26 KISS-Stor 1 – User’s Manual
Rail Channel
The rail channel (one on each side) allows you to attach the KISS-Stor 1 to a
main rail system.
Guide Ribs for Drive Carriers
The guide ribs separate the cavity of the KISS-Stor 1 drives cage in three bays in
order to accommodate the LED Insicators module (fix-mounted) and two hard
disk drive carriers (top and bottom).
1 4
3
2
5

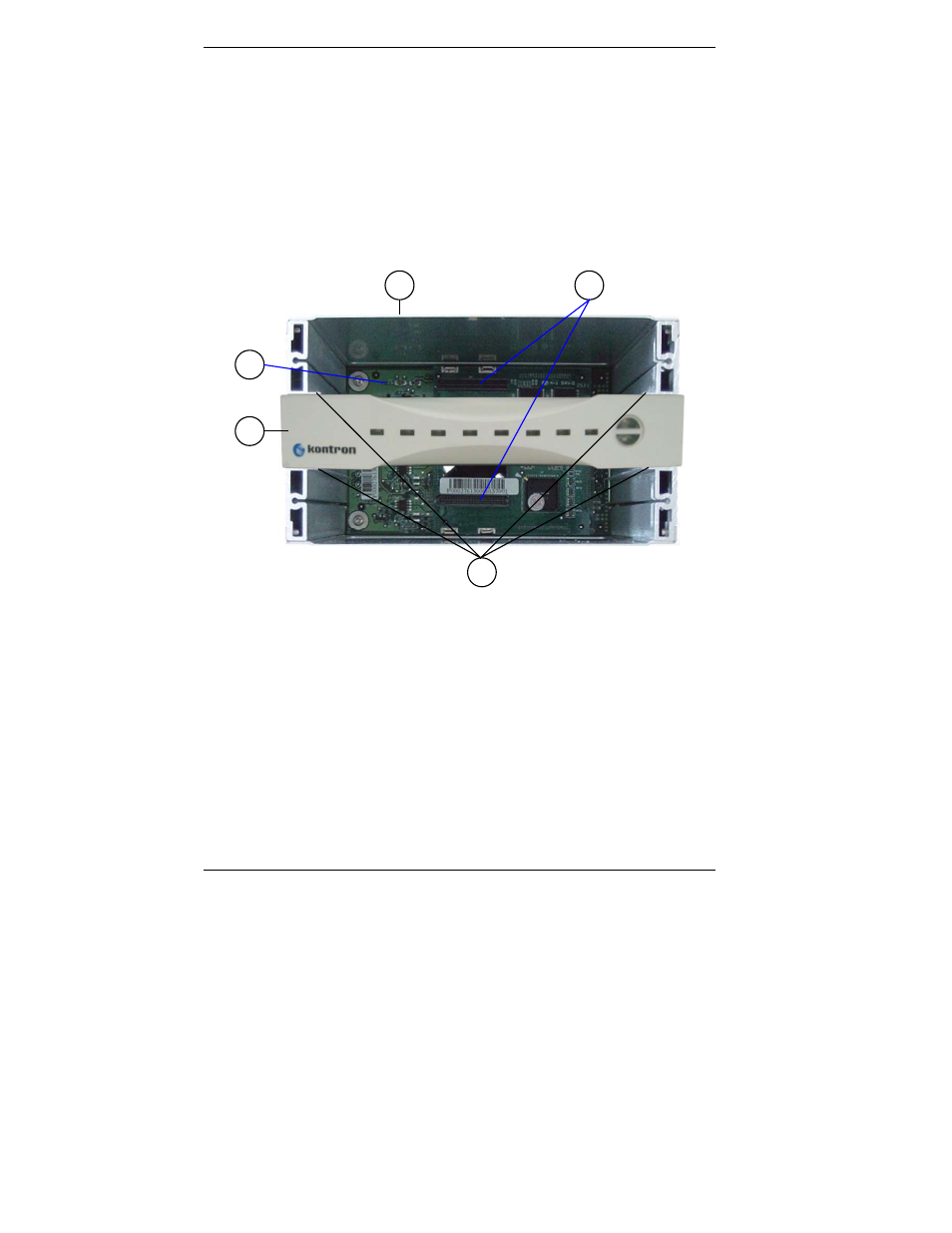

Fig. 10: Detail: Inside of the KISS-Stor 1 (without drive carriers)
1 Drive cage of the KISS-Stor 1
2 PCB with the RAID1 controller
3 LED indicators module (not removable)
4 2x docking connectors for
the drive carriers
5 Guide ribs for drive carriers
(bay)
Docking Connectors for the Drive Carriers
Each of these two connectors allows you to dock one drive carrier to the drives
cage of the KISS-Stor 1.
