Hard Disk Status / Rebuild Indicators
The upper indicator represents the top drive carrier, the lower indicator represents
the bottom drive carrier (refer to fig. 4, pos. 4 and pos. 5 and fig. 5 ). If a drive fails,
the appropriate LED indicator turns on, red and an audible alarm sounds. You can
turn off the audible alarm by unlocking the drive carrier.
The red indicator of the target drive carrier will light up and blink while rebuilding
(refer to “Disk Activity LED-Indicators” chapter).
1
2

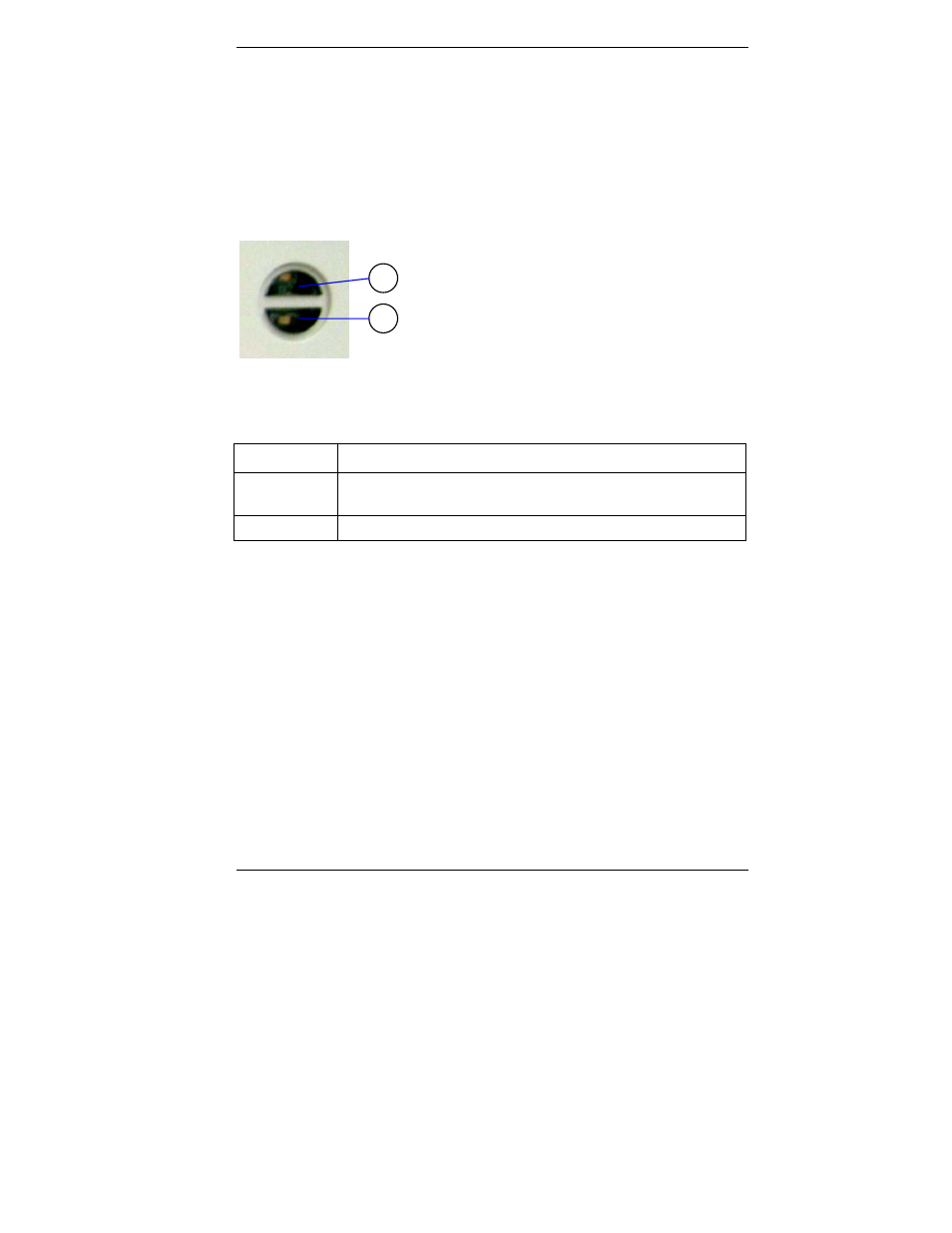

Fig. 5: Detail – Hard Disk Status /
Rebuild Indicators
LED Indicator Hard Disk Status / Rebuilding Indicators
Red Disk drive is not present, is not properly installed, is unlocked,
or disk has failed
Red Flashing Disk drive is rebuilding data
1 Hard Disk Status / Rebuild
Indicators of the top installed
HD drive
2 Hard Disk Status / Rebuild
Indicators of the bottom
installed HD drive
