Page 29
COM Express® Eval Type 10
/ Connectors and Features
26

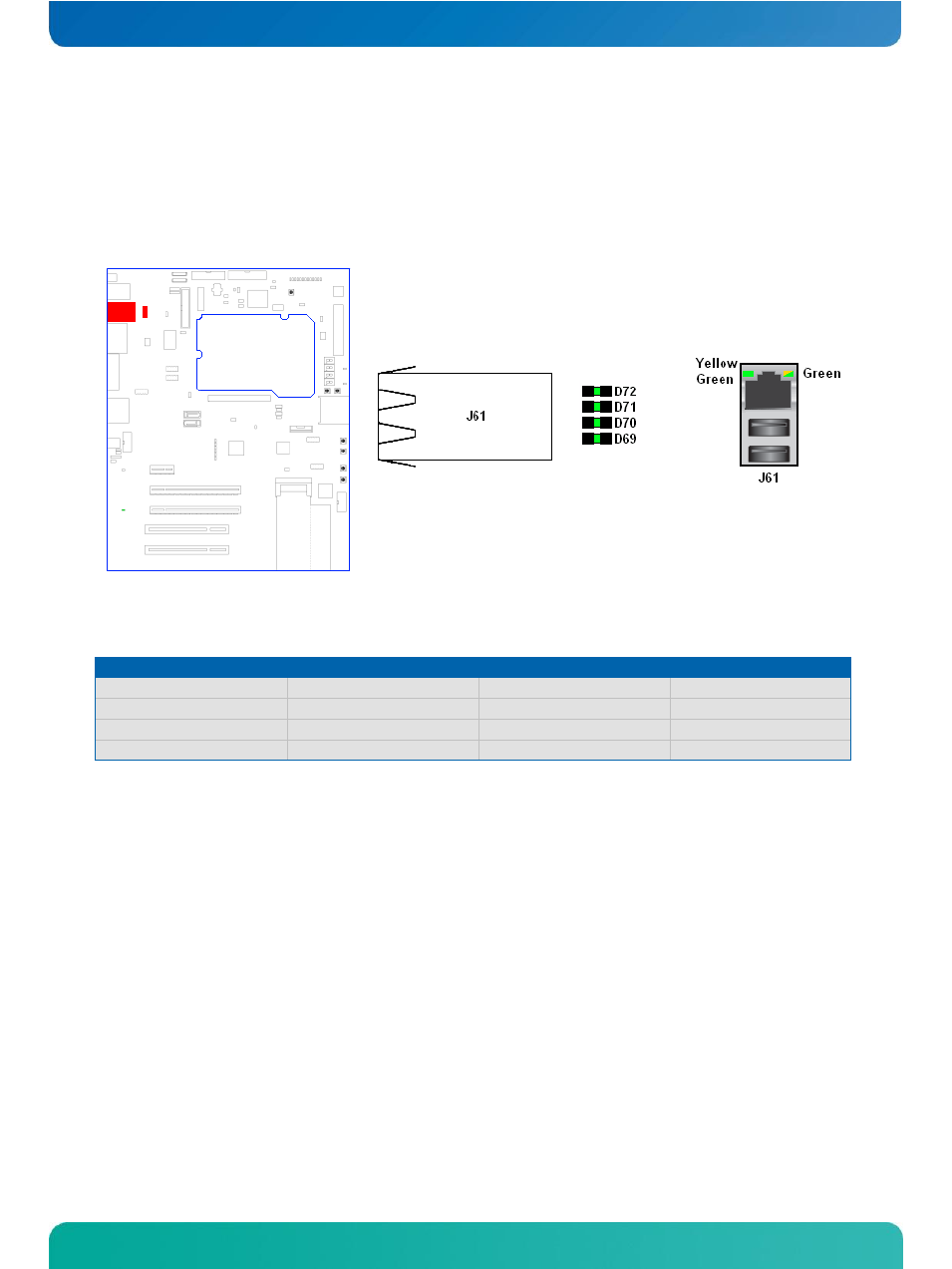

5.7 Ethernet
The COM Express® Eval Type 10 provides a RJ45/Dual USB Combo with a single RJ45 in combination with 2 USB ports
(USB 4/6). Ethernet Connector J61 with integrated magnetics and LED is configured to support modules with Gigabit
Ethernet controller only. Modules with 10/100 MBit Ethernet controller are not supported.
J61 LED function
Function
J61 Left LED
J61 Right LED
Status LED
Activity
Green
-
D69
Link10
-
Off
D70
Link100
-
Yellow
D71
Link1000
-
Green
D72
