5.6 High Definition Audio
The COM Express® Eval Type 10 provides HDAudio via Realtek ALC888/ALC886 High Definition Audio Codec supporting
analog, optical and digital audio connections.
The onboard buzzer SPK1 can be disabled by opening jumper J1 (default closed). Optical S/PDIF for Toslink
connection is available on rear panel connector J2.

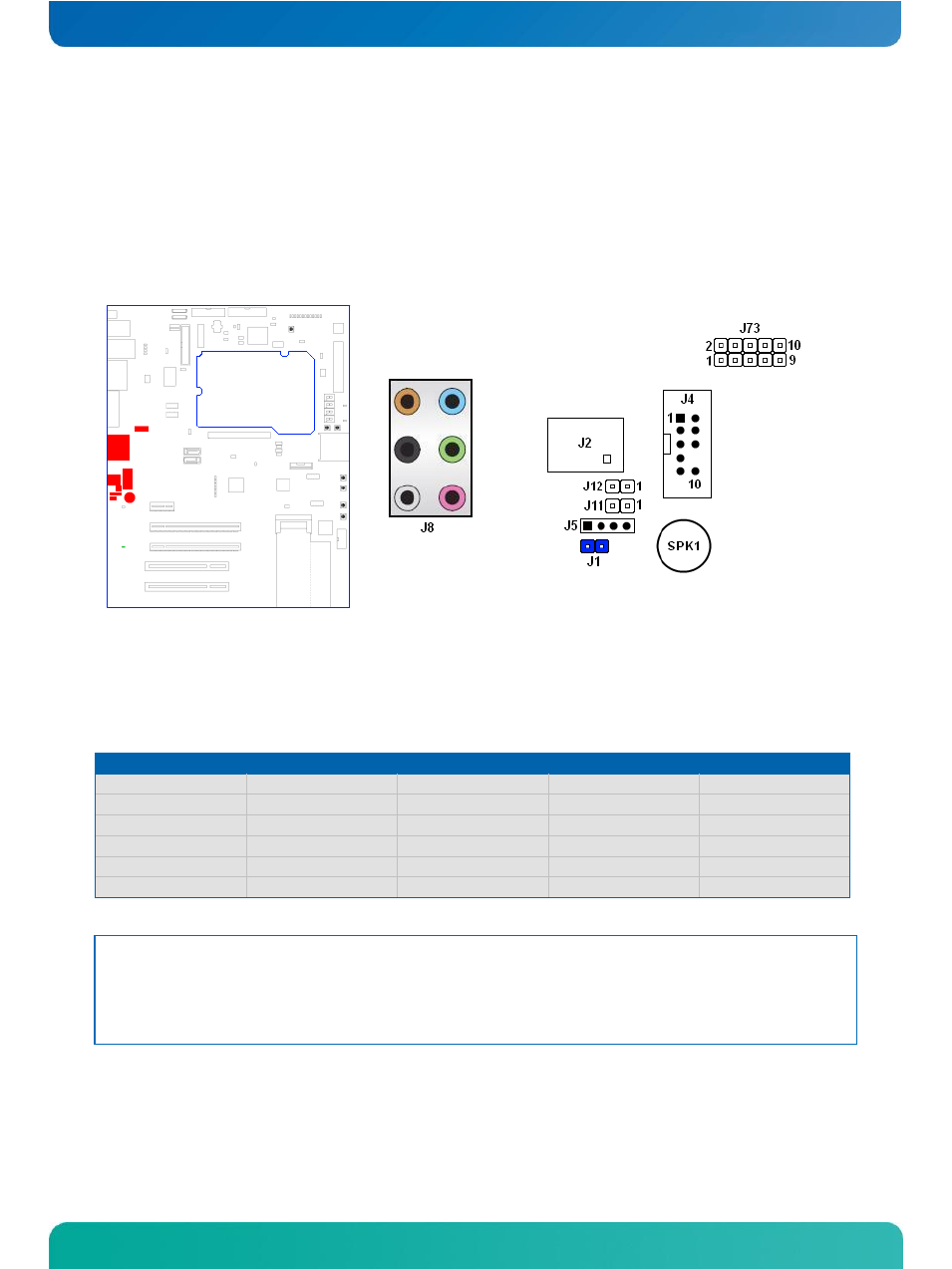

Audio Connector J8 - Speaker Configuration
The Audio Connector J8 on COM Express® Eval Type 10 is a full featured analog audio jack for speaker configuration up
to 8-channel.
J8 2-channel 4-channel 6-channel 8-channel
Orange - - Center/Subwoofer Center/Subwoofer
Black - Rear Speaker Side Speaker Rear Speaker Out
Gray - - - Side Speaker Out
Blue Line In Line In Line In Line In
Green Line Out Front Speaker Front Speaker Front Speaker
Pink Mic In Mic In Mic In Mic In
Note1: In addition to the default speaker settings, the analog audio Jacks can be reconfigured to perform different
functions via the Realtek HDAudio Driver Software which is available on Kontron website. Only microphones
still must be connected to the default pink jack.
Note2: Audio is only supported with HD Audio compatible COM Express® Modules.
