3 serial ata, 4 storage and gpio – Kontron COMe Eval Carrier T2 User Manual
Page 20
COM Express® Eval Carrier Type 2
19
5.3 Serial ATA
The COM Express® Eval Type 6 provides 4 7-pin SATA data connectors as standard 1.27mm Pitch Serial ATA High
Speed Header with Locking Latch.
SATA Pin
Signal
1
Ground
2
Transmit +
3
Transmit -
4
Ground
5
Receive -
6
Receive +
7
Ground
Connector
SATA Port
J18
SATA #0
J19
SATA #1
J26
SATA #2
J29
SATA #3

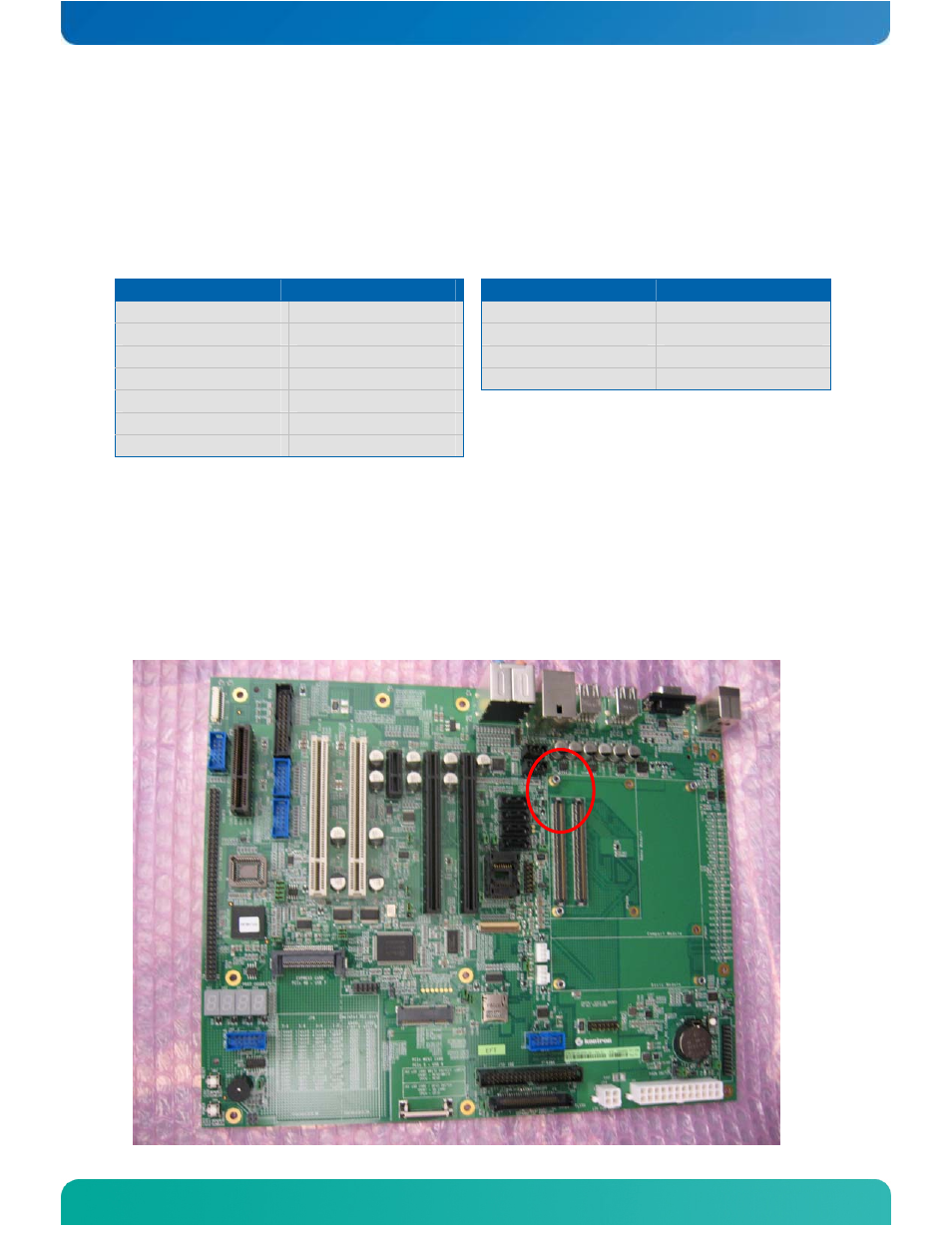

5.4 Storage and GPIO
This carrier board supports connections for various storage media including CompactFlash and microSD. Also
available is connection for GPIO. Consult your module manual for what GPIO it is enabled to communicate with.
