5.8 Ethernet

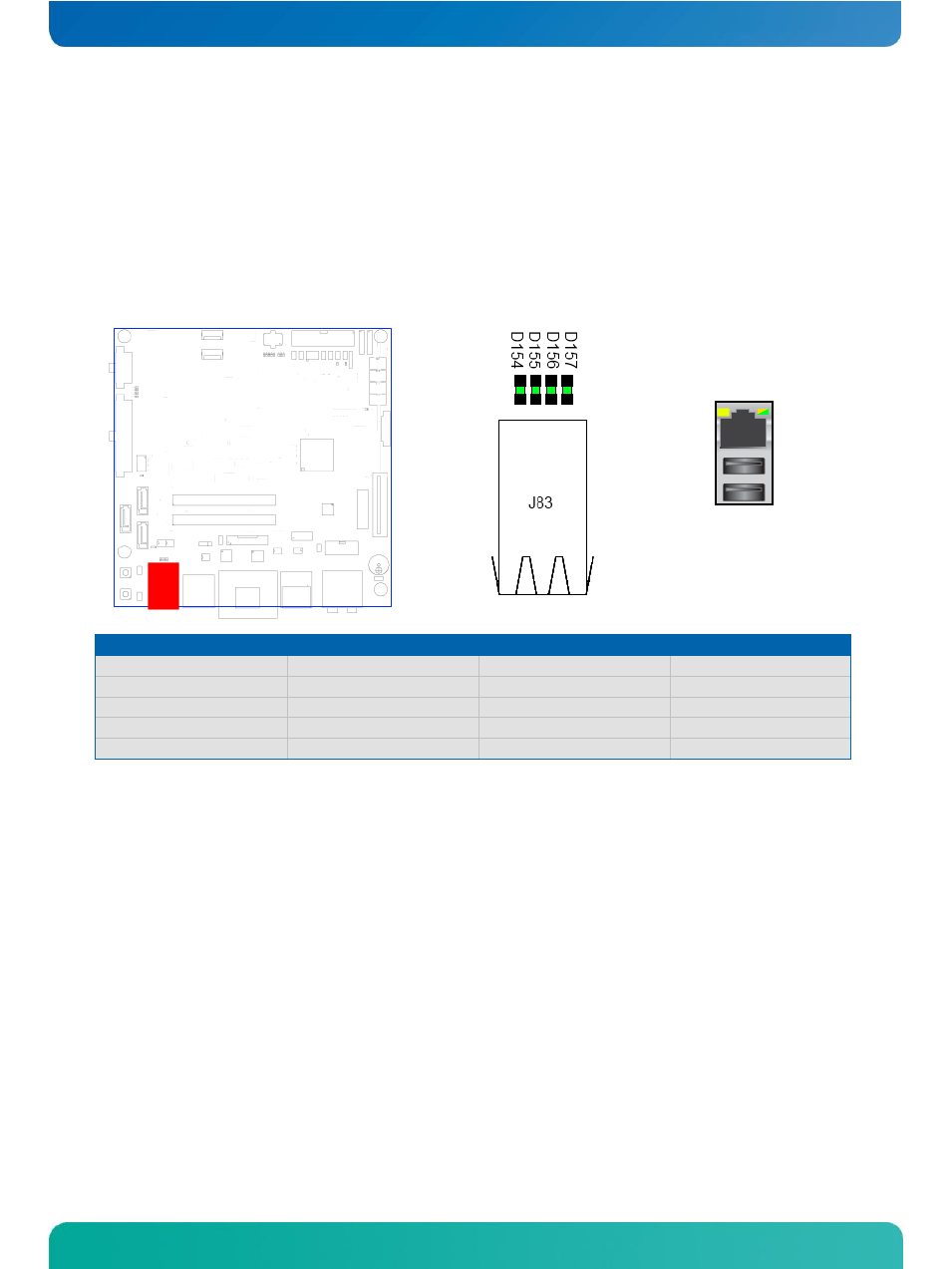

The COM Express® Reference Carrier Type 6 provides a RJ45/Dual USB Combo with a single RJ45 in combination with 2
USB ports (3.0) (USB 0/1). Ethernet Connector J83 with integrated magnetics and LED is configured to support
modules with Gigabit Ethernet controller only. Modules with 10/100 MBit Ethernet controller are not supported.
The proper function of the Ethernet LEDs depends on the module circuit.
Function J83 Left LED J83 Right LED Status LED
Activity Yellow blinking - D154
Link Yellow - D157
Link10 - Off -
Link100 - Orange D156
Link1000 - Green D157
