Page 33
COMe-bIP6 / Product Specification
3.14 Onboard Fan Connector

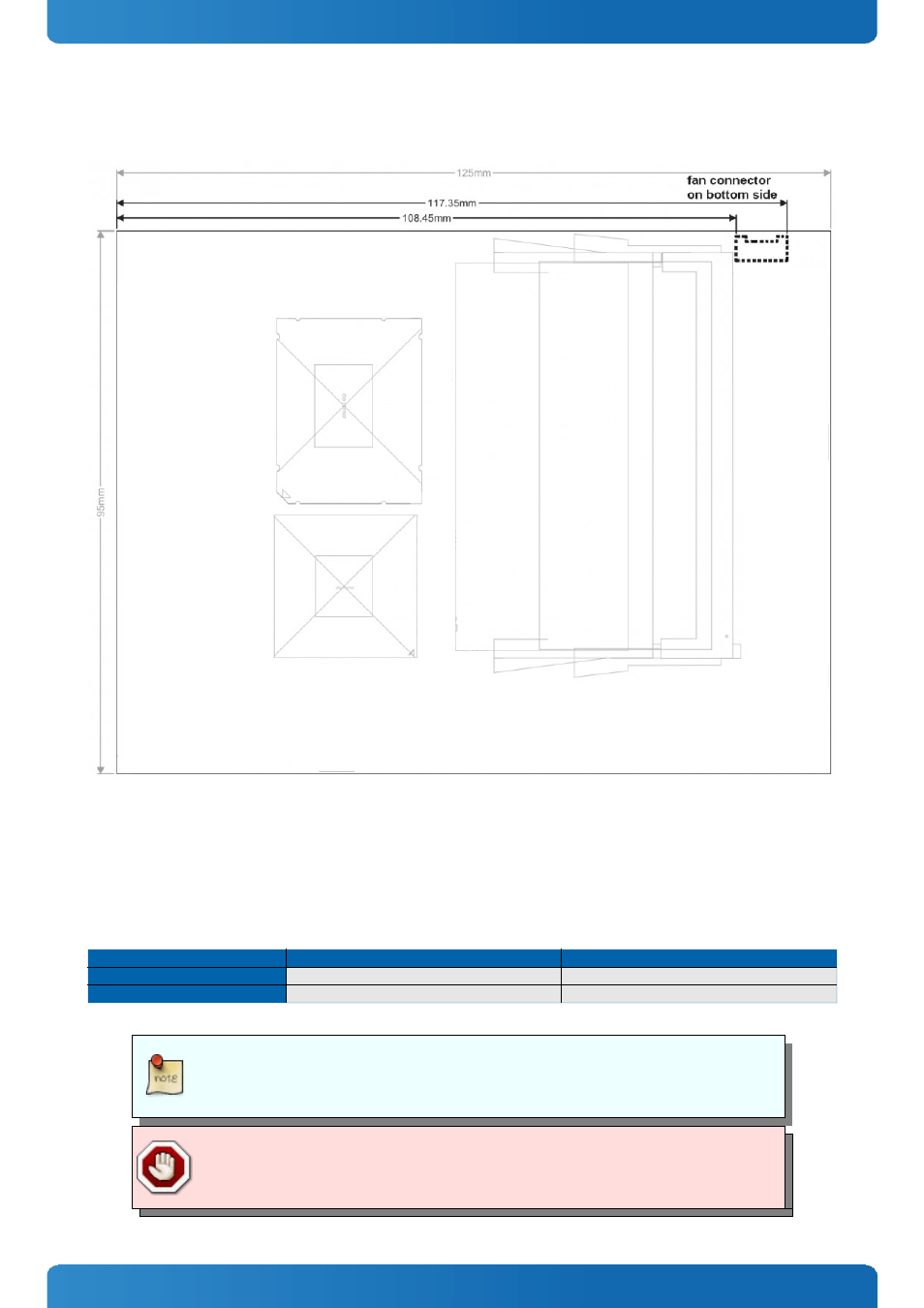

Location of the FAN Connector
Specification of the FAN Connector:
» Part number (Molex) J8: 53261-0371, Mates with: 51021-0300, Crimp terminals: 50079-8100
Pin assignment
» Pin1: Tacho, Pin2: VCC, Pin3: GND
Electrical characteristic
Module Input Voltage
8.5 - 13V
>13V
FAN Output Voltage
8.5 - 13V
13V
Max. FAN Output Current
350mA
150mA
To connect a standard FAN with 3pin connector to the module please use adaptor cable
KAB-HSP 200mm (96079-0000-00-0) or KAB-HSP 40mm (96079-0000-00-2)
Please check the FAN specifications when using the onboard FAN connector at input
voltages above 13V according the output current limitation
33
