COMe-bIP6 / BIOS Operation

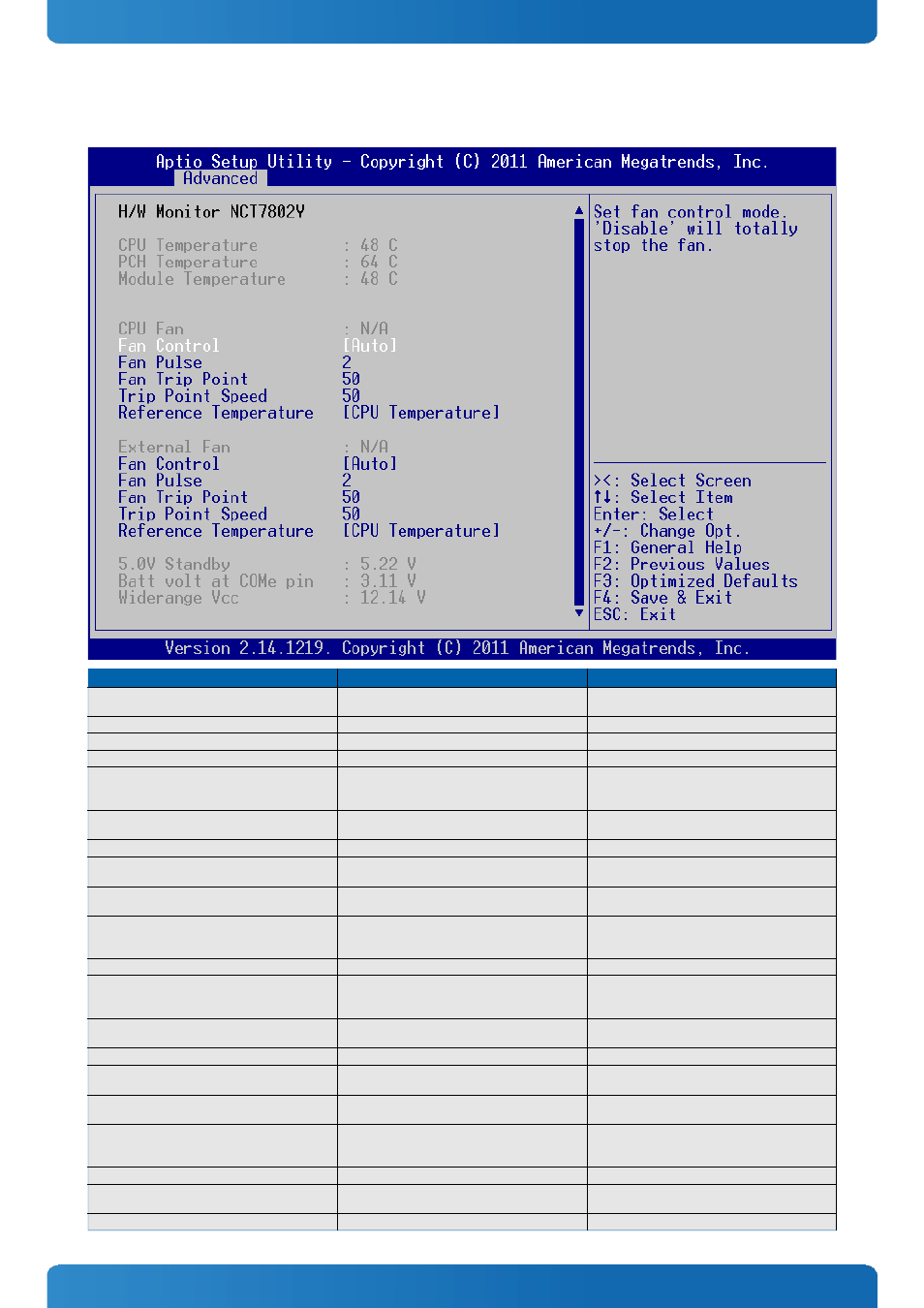

H/W Monitor
Hardware Monitor measurements and configuration for the onboard Nuvoton NCT7802Y.
Feature Value/Options Description
CPU Temperatue xx°C Shows the measured temperature of the CPU Diode with
onboard HWM
PCH Temperature xx°C Shows the internal Platform Controller Hub temperature
Module Temperature xx°C Shows the internal hardwaremonitor temperature
CPU FAN xxxx rpm Shows the fan speed of onboard FAN connector
FAN Control Disabled
Manual
Auto Set fan control mode. 'Disable' will totally stop the fan
Fan Pulse 2 Select the number of pulses the CPU fan produces
during one revolution. Range 1-4
Fan Trip Point 50 Temperature where fan accelerates. Range 20 - 80°C
Fan Speed 70 Manual fan speed in %. Minimum value is 30 (in Manual
mode only)
Trip Point Speed 50 Fan speed at trip point in %. Minimum value is 30. Fan
always runs at 100% at Tjmax - 10°C
Reference Temperature PCH Temperature
Module Temperature
CPU Temperature
Determines the temperature source which is used for
automatic fan control
External FAN xxxx rpm Shows the fan speed of external COMe FAN
FAN Control Disabled
Manual
Auto
Set fan control mode. 'Disable' will totally stop the fan
Fan Pulse 2 Select the number of pulses the CPU fan produces
during one revolution. Range 1-4
Fan Trip Point 50 Temperature where fan accelerates. Range 20 - 80°C
Fan Speed 70 Manual fan speed in %. Minimum value is 30 (in Manual
mode only)
Trip Point Speed 50 Fan speed at trip point in %. Minimum value is 30. Fan
always runs at 100% at Tjmax - 10°C
Reference Temperature PCH Temperature
Module Temperature
CPU Temperature Determines the temperature source which is used for
automatic fan control
5.0V Standby x.xx V Shows the 5V Standby Voltage input
Batt volt at COMe pin x.xx V Shows the RTC Battery Voltage input measured at COMe
connector
Widerange Vcc x.xx V Shows the Module Main Input Voltage
