MSM800XEV/XEL
/ System Resources
www.kontron.com
63

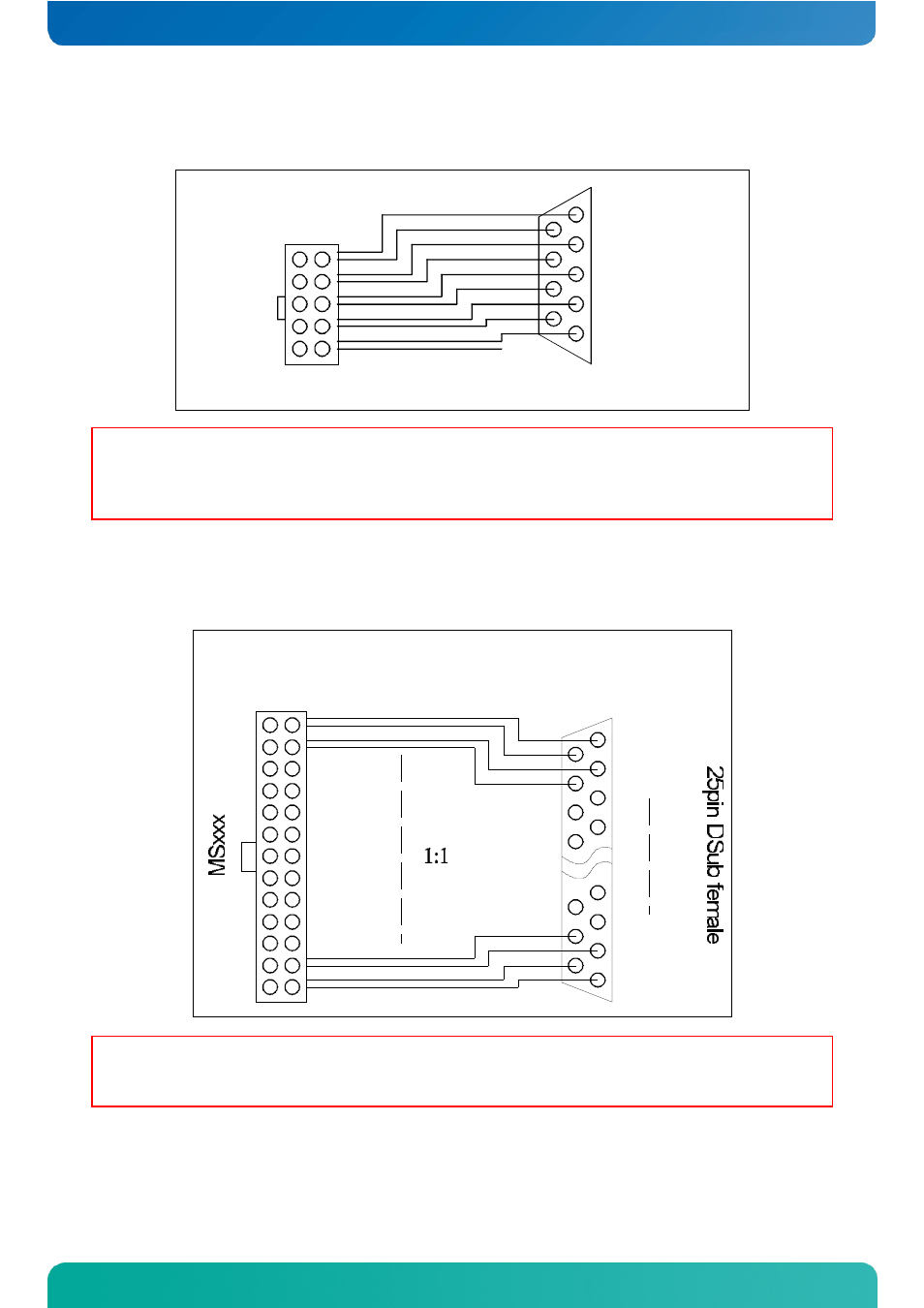

7.3.2 The COM 1/2 Serial Cable
DT terminal for dual row 0.1" (2.54 mm grid) and 1.27 mm flat cable.
2
1
COM1
9pin D-Sub
male
COM1/2
1
6
2
3
4
5
7
8
9
Line of pin 1
9 10
Attention:
Do not short circuit these signal lines.
Never connect any pins on the same plug or to any other plug on the MICROSPACE MSM800. The +/-
10Volts will destroy the MICROSPACE core logic immediately.
In this case the warranty is void!
Do not overload the output; the maximum output current converters: 10mA
7.3.3 The Printer Cable
IDT terminal for dual row 0.1" (2.54mm grid) and 1.27 mm flat cable
14
2
15
1
24
25
12
13
Parallelport Cable LPT1
Attention:
Maximum length of this cable is 6 meters.
Prevent short-circuits.
Never apply power to these signals, the MICROSPACE MSM800 will be destroyed
.
