CP-RIO6-001-HD-VGA Functional Description
ID 1052-4138, Rev. 1.0 Page 2 - 7
2.1.4 Serial ATA Interfaces
The CP-RIO6-001-HD-VGA provides two SATA interfaces, one for connecting a standard 2.5"
SATA HDD/SSD and one for connecting a SATA device via a SATA cable.
The SATA interfaces are capable of supporting SATA 1.5 Gb/s and SATA 3.0 Gb/s signaling.
2.1.4.1 SATA Connector J13
The CP-RIO6-001-HD-VGA rear I/O module is equipped with a SATA connector, J13, used to
connect a standard SATA device to the rear I/O module via a SATA cable. The rear I/O module
will not exceed the thickness of 4HP when a Serial ATA cable is used.
The following figure and table provide pinout information for the SATA connector J13.
Note ...
To ensure secure connectivity, the SATA connector supports the use of SATA
cables with a locking latch.

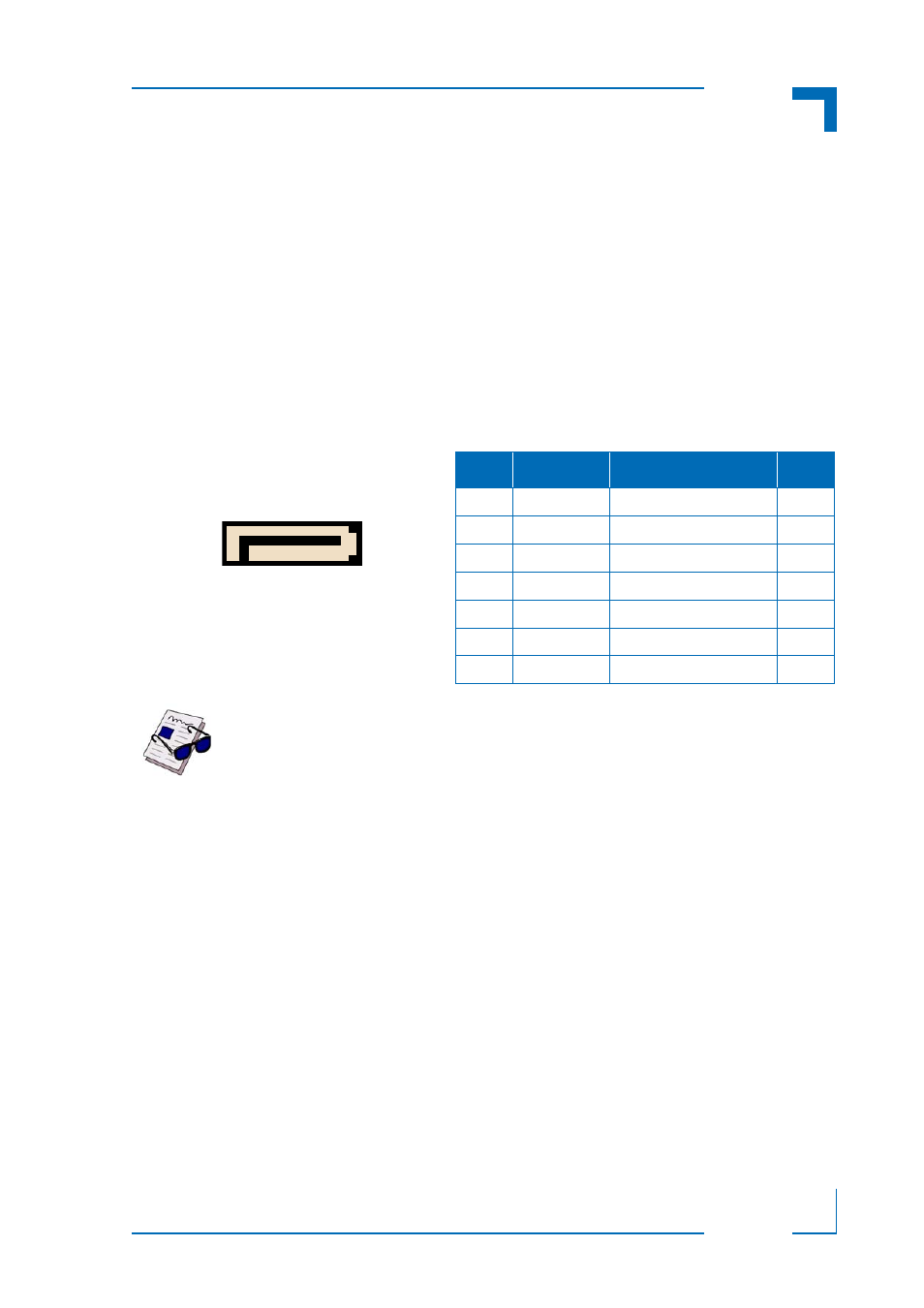

Figure 2-5: SATA Con. J13
7 1
Table 2-5: SATA Connector J13 Pinout
PIN SIGNAL DESCRIPTION I/O
1 GND Ground signal --
2 SATA_TX+ Differential Transmit + O
3 SATA_TX- Differential Transmit - O
4 GND Ground signal --
5 SATA_RX- Differential Receive - I
6 SATA_RX+ Differential Receive + I
7 GND Ground signal --
