Page 27

CP3002

Introduction

ID 1042-9252, Rev. 2.0

Page 1 - 7

P R E L I M I N A R Y

1.4.2

Front Panel

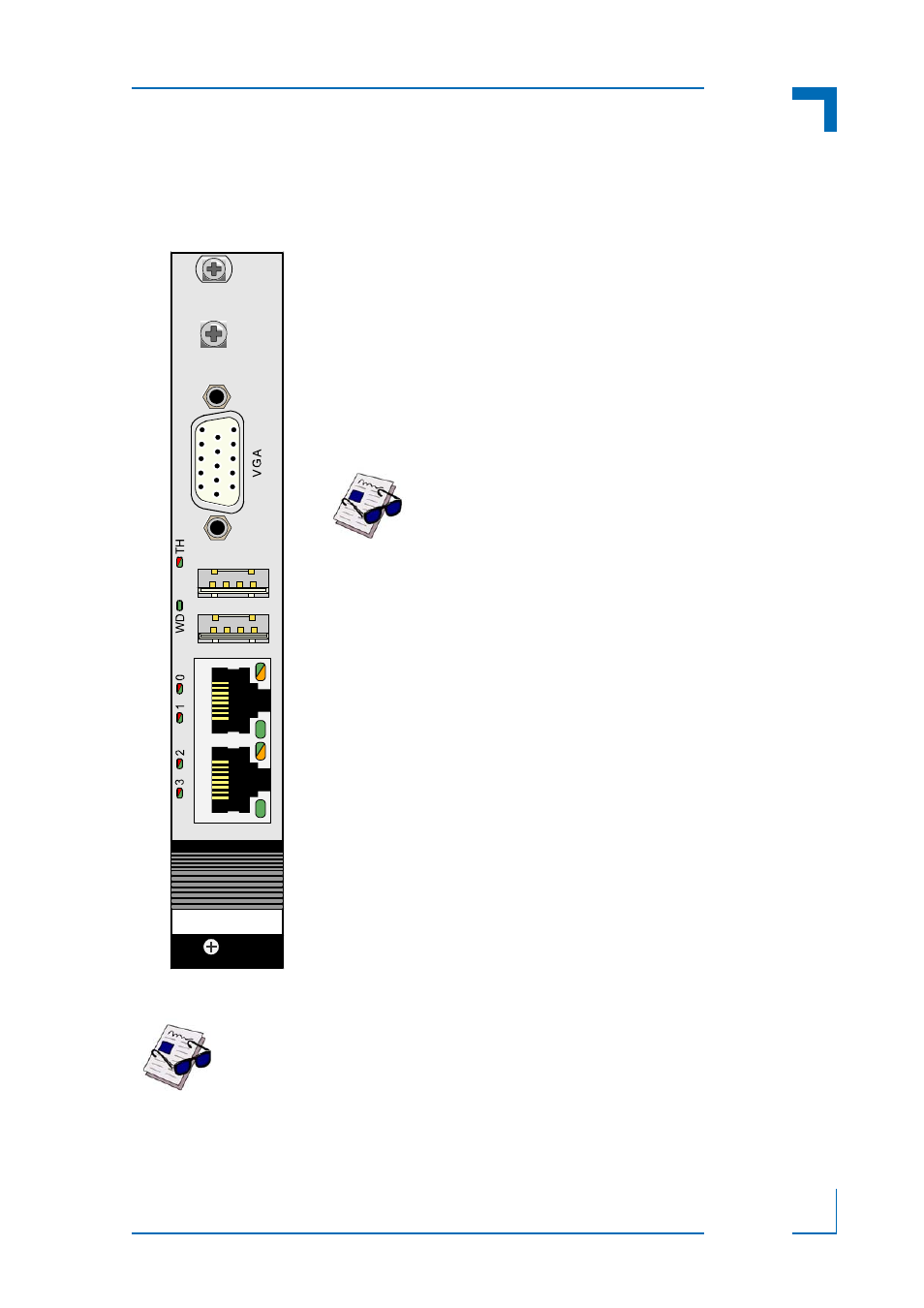

Figure 1-2: 4HP CP3002 Front Panel

Note ...

For information regarding the front panel of the 8HP CP3002, refer to Appendix
A, CP3002-HDD Module.

USB 2.0

C P 3 0 0 2

GbE A

GbE B

LEGEND:

Watchdog and Overtemperature Status LEDs:

WD (green):

Watchdog Status

TH (red/green):

Overtemperature Status

General Purpose LEDs:

LED0..3 (red/green/red+green):

General Purpose/POST Code

Ethernet LEDs:

ACT (green): Ethernet Link/Activity

SPEED (green/orange): Ethernet Speed

Note ...

If the General Purpose LEDs 0..3 are lit red dur-
ing boot-up, a failure is indicated before the uEFI
BIOS has started.

For further information, please contact Kontron.
