Caution – Char-Broil 463411512 User Manual
Page 25
13

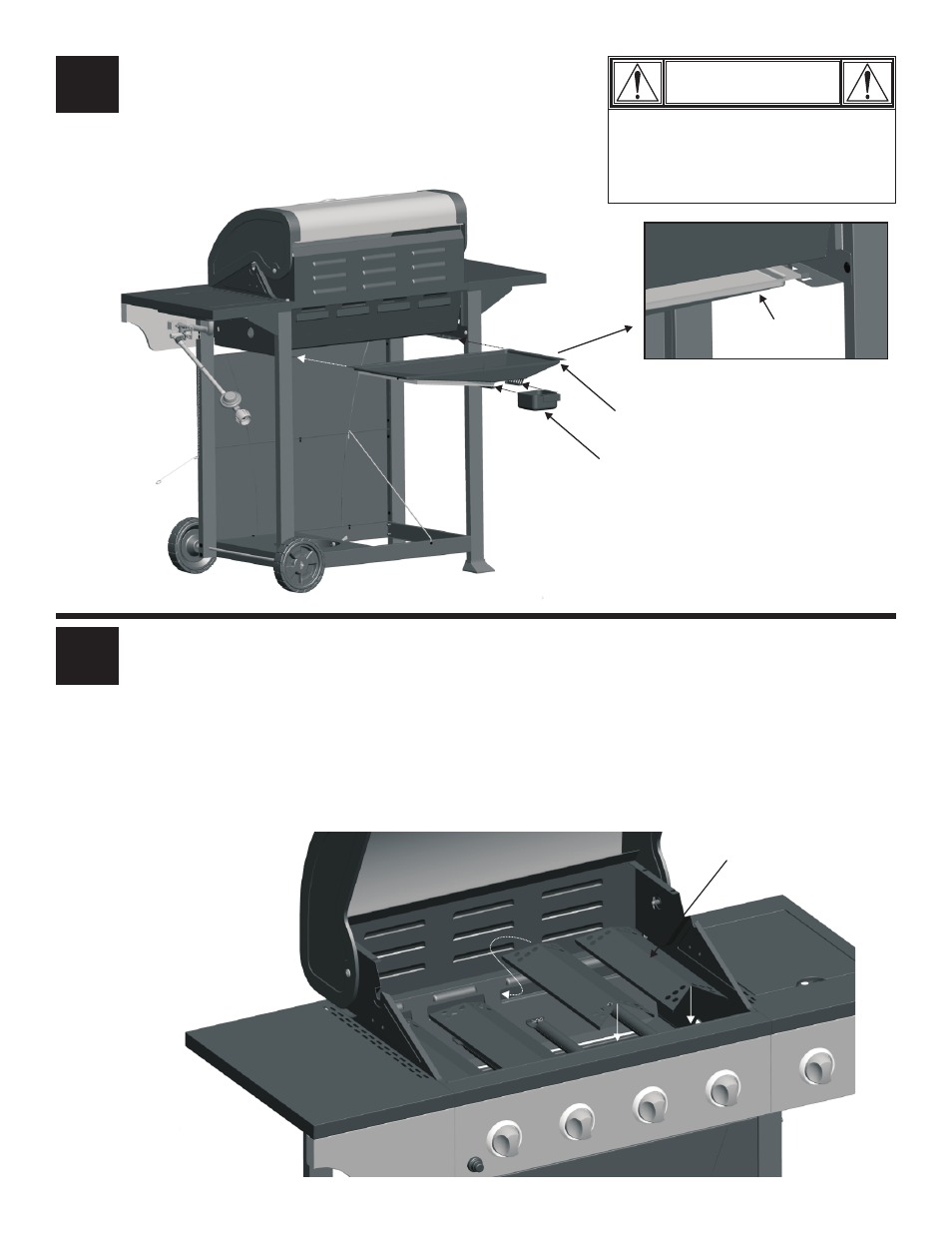

Grease Tray and Grease Pan
□ Slide grease tray onto rails beneath firebox past rail stops.
Slide grease pan onto rails beneath grease tray past rail
stops.
4
14
Heat Diffusers
□ Place heat diffusers over burners as shown. Diffuser ends insert into channels on front and back of firebox.
Grease Tray
Grease Pan
Heat Diffuser
Grease Tray
25
CAUTION
Failure to install grease tray and pan
will cause hot grease to drip from
bottom of grill with risk of fire or
property damage.
