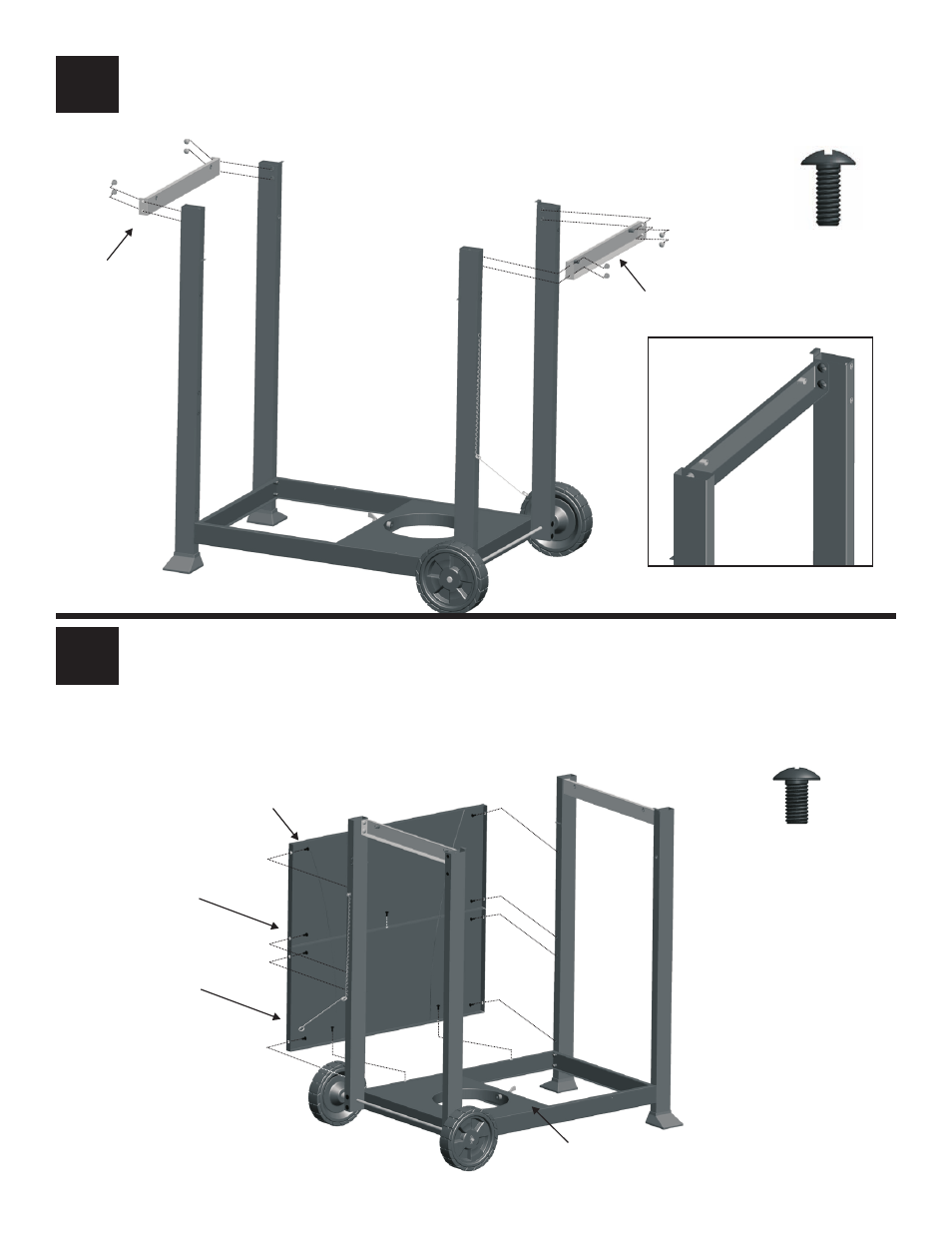

Side Braces
□ Turn cart upright.
□ Attach side braces to legs using four 1/4-20x1/2” screws each side.
Machine Screws
Qty. 8
1/4-20x1/2”
4
Front Panels
Machine Screws
Qty. 11
#8-32x3/8”
Machine Screws
#8-32x3/8”
Lower Front Panel
Bottom Shelf
□ Fit lower front panel between front legs and attach with two #8-32x3/8” machine screws each side. Then
attach lower front panel to bottom shelf with two #8-32x3/8” machine screws.
□ Fit upper front panel between front legs and attach with two #8-32x3/8” machine screws each side. Then
use one #8-32x3/8” machine screw to secure two front panels in the middle hole as shown.
Upper Front Panel
18
Side Brace
Side Brace
