Char-Broil 463411512 User Manual
Page 21
8

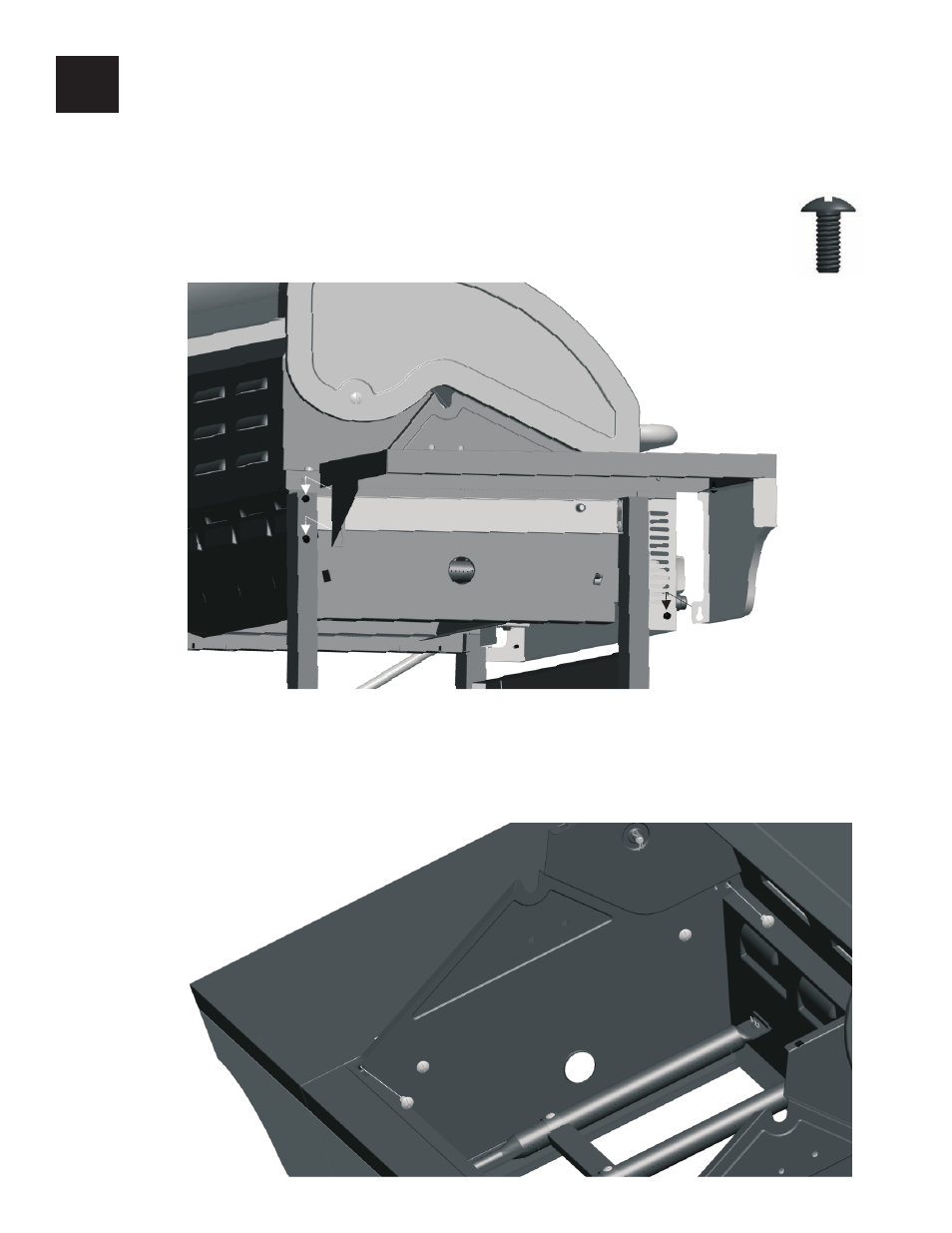

Left Side Shelf
□
Loosen the preassembled screws in the left rear leg and front of firebox, shown A, to within 1/8" of surface.
Hang left side shelf onto the screws through the keyhole slots in the shelf. Fully tighten all screws.
□ Use two 1/4-20x1/2” machine screws to attach left side shelf to firebox from inner firebox as shown (B).
A
21
Machine Screws
Qty. 2
1/4-20x1/2”
B
