AeroFlo 2 18 & 30 PARTS
AeroFlo 2 18 & 30 PARTS:
assembled dimensions: AF18 - 5’4L X 23”W X 22”H
AF30 - 7’6”L X 23”W X 22”H

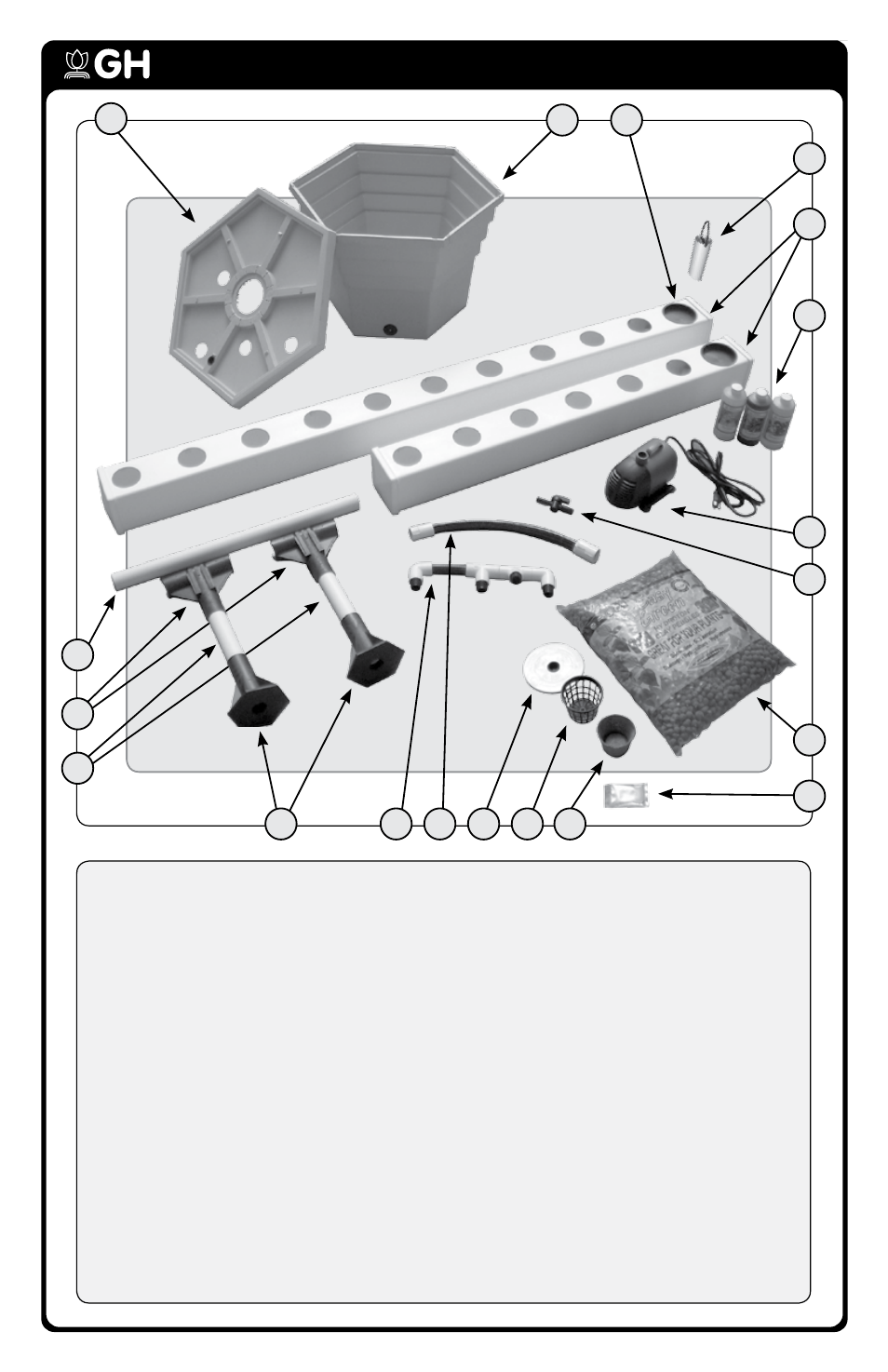

Parts Box:
1: AF18= WaterPower Pump 85
AF30= WaterPower Pump 120
2: Pump line
3: Manifold
4: Drain Valve
5: Reservoir 17 gallon
6: Reservoir Lid
7: Hatch Cover
8: SnapStand Support Legs, 2ea
9: SnapStand Base, 2ea
10: SnapStand Cross Fitting, 2 ea
11: SnapStand Cross Support
12: Clay Pebbles 9 L
13: FloraSeries Nutrients
1
Chambers Box:
14: Drain Level Tube (DLT)
15: DLT Lubricant
16: DLT 4” Covers
17: Net Pots 3” (18 or 30)
18: CocoTek Liners 3” (18 or 30)
19: Growing Chambers (4’ or 6’)
4
3 9
10
13
5 6
19
2
12
7 17 18
15
11
8
16
14
