Operation
| 23
Operation
Before connecting any components, follow the
safety information in the ETS-Lindgren
Product Information Bulletin included with your
shipment.

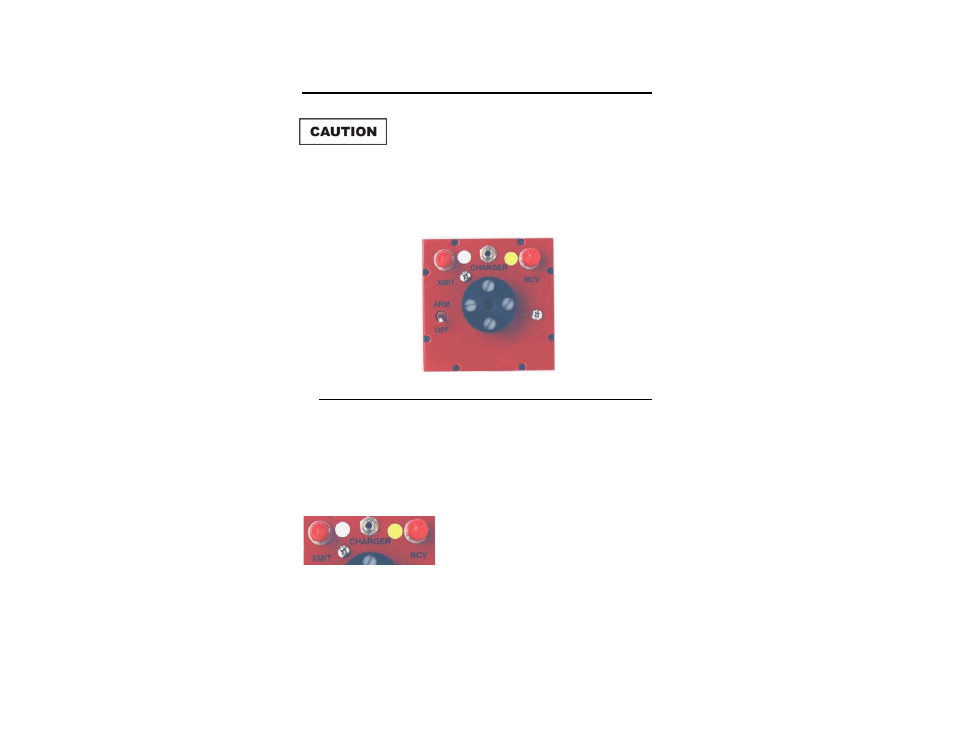

A switch, two fiber optic connectors and a battery charger connector are mounted
on the HI-4433 electronics housings.
Xmit/Rcv
The fiber optic cable assembly from the
receiver is attached to the probe via two
connectors. The cables are color-coded:
white for XMIT, yellow for RCV. Identically
colored dots are located on the electronics
housing adjacent to these connectors.
Ensure that each cable is attached to the
proper probe connector.
When the fiber optic cables are not
attached, always cover the probe
connectors with the protective plastic
covers supplied with the unit, or with
similar material. This prevents dirt or
other contaminants from entering the
connector and causing communication
problems.
