ETS-Lindgren 2171B Boresight Antenna Tower - Manual (Page 64)

A
B
11 28
6
30
29
14
12
13
5
29 2 7
9
35 37 27 27
5 4
EPOXY
8 5
EPOXY
17
3
4
25 20 21
10
34 36
4
22
23
DETAIL A
SCALE 1 : 4
23
33 27 37
DETAIL B
SCALE 1 : 4
20 26
24 26 18
37 930688 NUT,M6,HEX,SS,NYLOK 14
36 930681 NUT,M6,HEX,SS 8
35 930665 BOLT,M6 X 35,HEX,SS 6
34 930663 SCREW,M6 X 35,PHIL,PAN,SS 4
33 930662 SCREW,M6 X 30,PHIL,PAN,SS 12
32 930341 SCREW,M3 X 12MM,PHIL,FLAT,SS 4
31 920001 EPOXY,2-PART T88 .02
30 911204 BOLT,5/8-11 X 4.5",HEX,GF NYLON,BLACK 3
29 910899 NUT,5/8-11,FG,BROWN 6
28 910686 SCREW,10-32 X 1/2,PHIL,FLAT,SS 4
27 910455 WASHER,1/4,FLAT,SS 24
26 905194 COUPLING,BULKHEAD,1/8 NPT 2
25 905093 FLOW CONTROL,RT ANG,1/8 NPT 2
24 890950 FITTING,TUBE,1/8 NPT TO .17 ID,RT ANGLE 2
23 890949 CASTER,3" RIGID,250 LB 2
22 890948 CASTER,3" SWIVEL W/BRAKE,250 LB 1
21 890465 BARB HOSE 11924-1 CLIPPARD 4
20 890464 NUT TUBE 5000-2 CLIPPARD 4
19 880393 BELT,TIMING,T10,25MM,ESD 33
18 860140 NYLON TUBING,.250 OD X .170 ID,BLACK 33
17 120161 MAST BOLT,GLUED 2
16 120067 FIBER OPTIC PLUG PLATE,MAST,2171B 1
15 119970 FIBER OPTIC PLUG,MAST,2171B 1
14 120265 MAST,2170B 1
13 118623 CARRIER2170B 1
12 118181 ASSY.,PULLEY BLOCK,2171B 1
11 118179 SWITCH,LIMIT,F.O.,.25 WT 2
10 118177 PROTECTOR,F.O. AND AIR,2171B 1
9 118176 GUSSET,REAR,2171B 1
8 118175 GUSSET,FORWARD,2171B 1
7 118174 NUT,GUSSET,2171B 5
6 118173 TUBE,BRACE,2171B 1
5 118172 BRACE,FORWARD,2171B 2
4 118171 BASE,2171B 1
3 118166 MOTORBASE,2171 1
2 109282 STUD,5/8-11 X 4.00,FG 3
1 109250 LOCK,MOLDED,F.O. CABLE 4
ITEM
NO.
PART
NUMBER
DESCRIPTION QTY

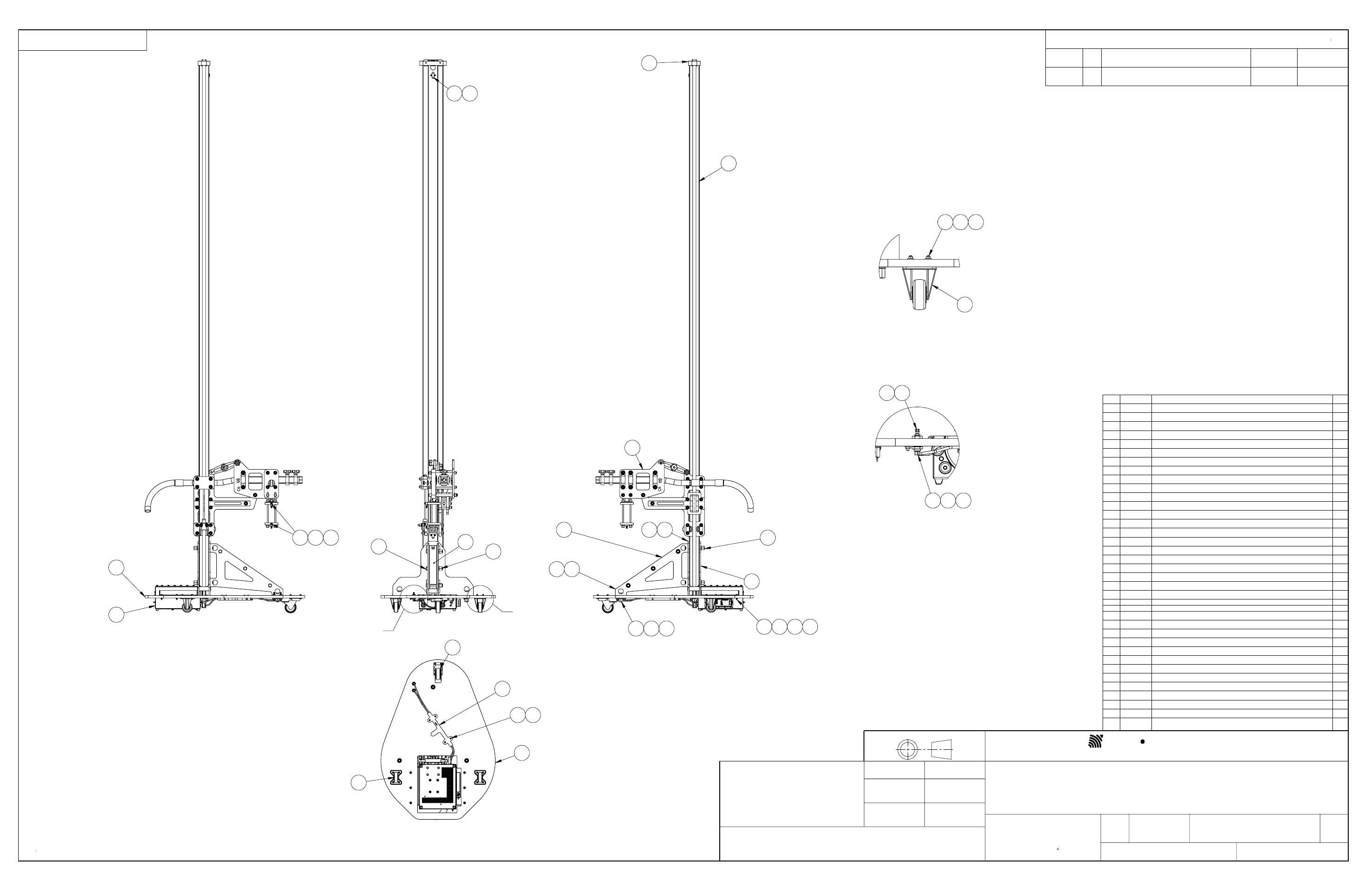

TOWER ASSY,2170B
1:12
118624
A
1 1
09/12/12
X.XX
X.XXX .005
.015 .5
NONE
REF DRAWING
ECN REV APPROVED
REVISIONS
DESCRIPTION DATE
DO NOT SCALE DRAWING
ETS LINDGREN
SIZE
THIRD ANGLE PROJECTION
ENGINEERING
INITIAL
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
REMOVE ALL BURRS AND SHARP EDGES
SURFACE FINISH 63 RMS OR BETTER
FINISH
TOLERANCES ARE:
DECIMALS
±
± ±
ANGLES
DRAFTING
PERMISSION OF ETS LINDGREN
IS PROHIBITED.
ANY DUPLICATION OF THIS
PROPRIETARY INFORMATION
WITHOUT EXPRESS WRITTEN
DOCUMENT, WHOLE OR IN PART,
DATE
TITLE
OF SHEET
DWG. NO.
An ESCO Technologies Company
SCALE
D
TM
REV.
A REPLACED 118625 WITH 120265 12/09/13 JRC
SRK
