Infrared Remote Controller
The Model 2171B/2170B Antenna Positioning Tower is infrared compatible, and
can be used with a universal remote control programmed to a specific protocol,

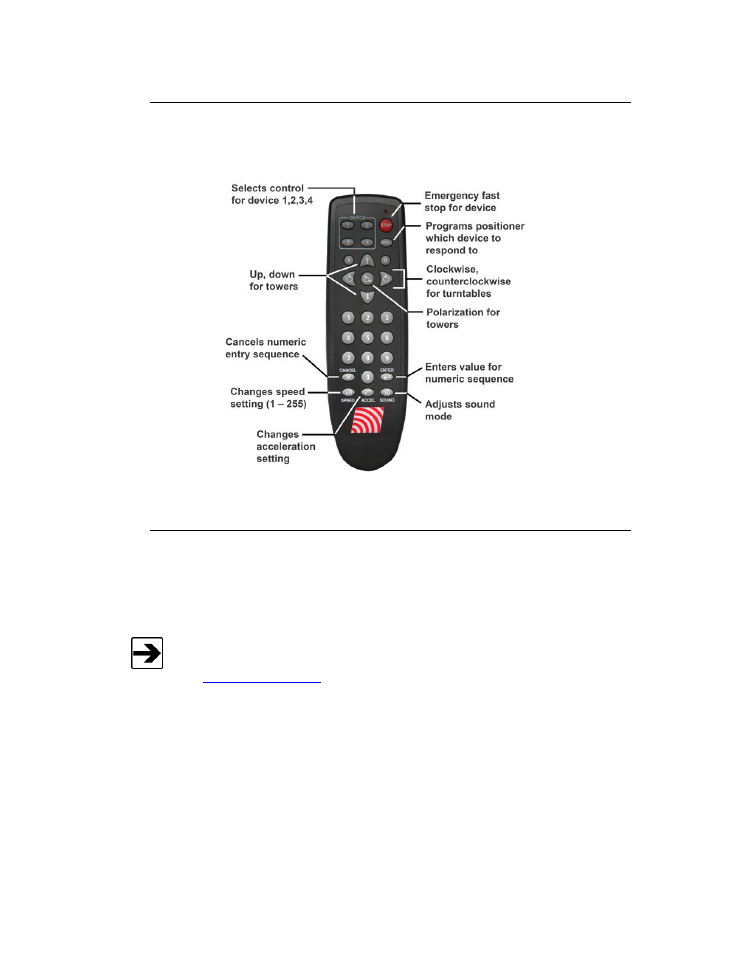

such as the ETS-Lindgren Infrared (IR) Remote Controller (included).
Model 2090 Multi-Device Controller
The ETS-Lindgren EMCenter ™ Modular RF Platform (with EMControl™
Positioner Controller Plug-In Card) may be used to control the
Model 2171B/2170B Antenna Positioning Tower. For information on connecting
and using the EMCenter, see the EMCenter Modular RF Platform User Manual.
If you are unfamiliar with the operation of the Model 2090, see the manual
included with the controller. The manual is also available for download from
www.ets-lindgren.com .
The Model 2090 requires firmware revision 3.21 or higher.
With the assembly of the tower complete, the controller must be connected to the
unit and power applied to both the motor base and controller. See the controller
manual for information on connecting the fiber optic cable.
Use the controller to check the clockwise (CW) and counterclockwise (CCW)
rotation in both directions by a few degrees. The position in degrees
increases (+) in the CW direction and decreases (-) in CCW direction.
