Assembly Instructions

|

27

S

TEP

4

—B

EGIN

B

ELT

I

NSTALLATION

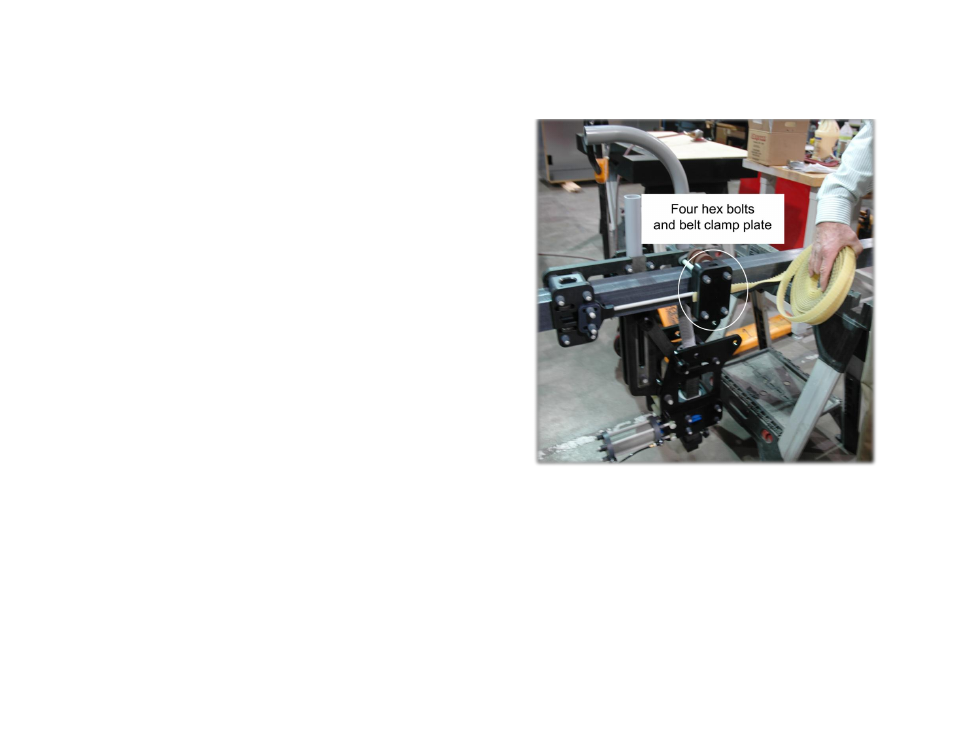

Remove the belt clamp plate by removing the four hex nuts.

With the teeth facing inward, place one end of the belt in the

notch, and then replace the belt clamp plate and hex nuts.

Route the belt up the carrier, over the top of the mast, and

then back down to the carrier.
