Assembly steps, Step 1, Remove carrier from temporary shipping mast – ETS-Lindgren 2171B Boresight Antenna Tower User Manual
Page 25: Step 2, Remove temporary shipping mast from base
Assembly Instructions
|
25
Assembly Steps
TAKE CARE TO AVOID DAMAGE TO FIBER OPTIC CABLES: Never pull, pinch, bend, twist, or place
any kind of stress on the fiber optic cables.
S
TEP
1
—R
EMOVE
C
ARRIER FROM
T
EMPORARY
S
HIPPING
M
AST
With the base on the floor and the temporary shipping mast in a vertical position, carefully lift the carrier straight up, sliding it off of
and away from the temporary shipping mast.
S
TEP
2
—R
EMOVE
T
EMPORARY
S
HIPPING
M
AST FROM
B
ASE
Never use the temporary shipping mast for operation.

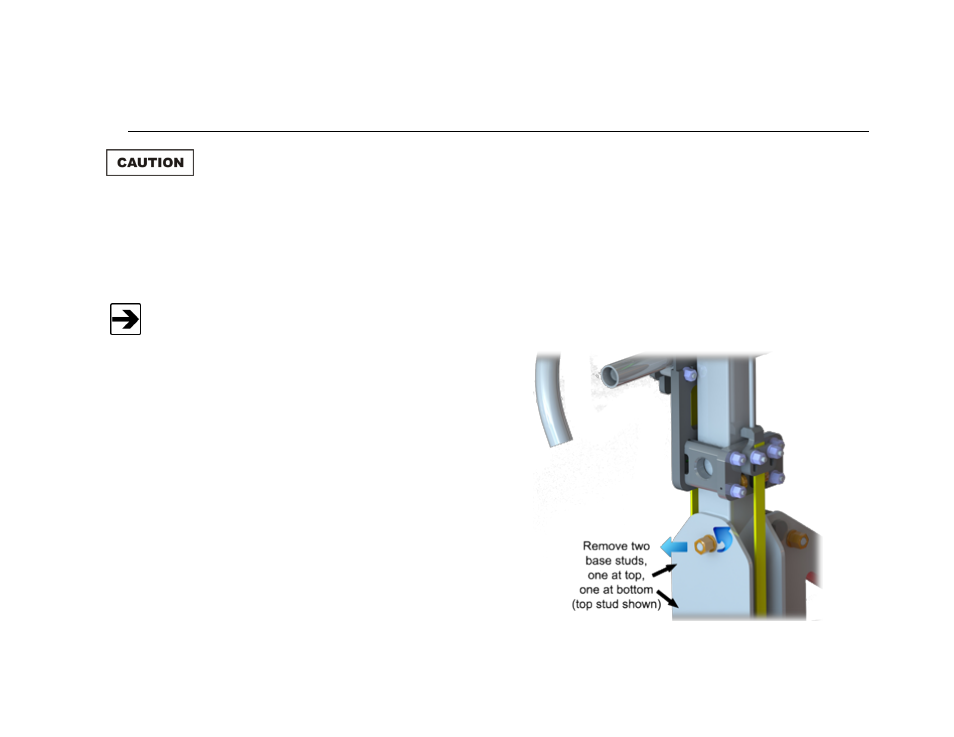

In the following view the carrier and belt are shown, but only the mast is present during this step.
Remove the two base studs by rotating and then
pulling straight out.
Lift up to remove the temporary shipping mast from
the base.
