Testing EUT for susceptibility (immunity) consists of three processes: starting the
EUT, selecting test frequencies (may be done semi automatically), and testing
the EUT at the selected frequencies (done manually).
S
TART THE
EUT
Turn on the EUT, allow it to stabilize, and then verify it is operating properly.
Make sure the input/output stimulation and monitoring equipment is operating
satisfactorily.
S
ELECT
T
EST
F
REQUENCIES

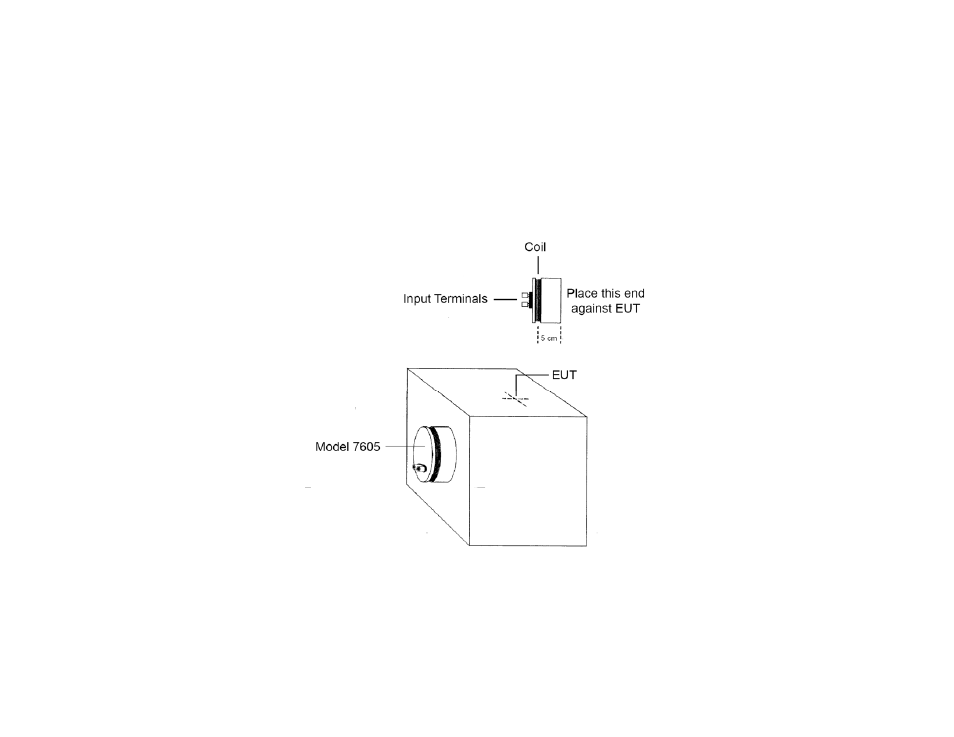

Testing – Showing Application of Model 7605
1.
Position the Model 7605 so that the built-in spacer is flat against one
surface of the EUT. This places it parallel to and 5 cm from the EUT.
MIL-STD-462D Method RS101 Testing
