Method RS101 Calibration
Mount the Model 7605/Model 7606 assembly on a non-metallic tripod. This helps
prevent interaction between the assembly and the surroundings, and allows the
operator to be hands-free near the instrumentation.

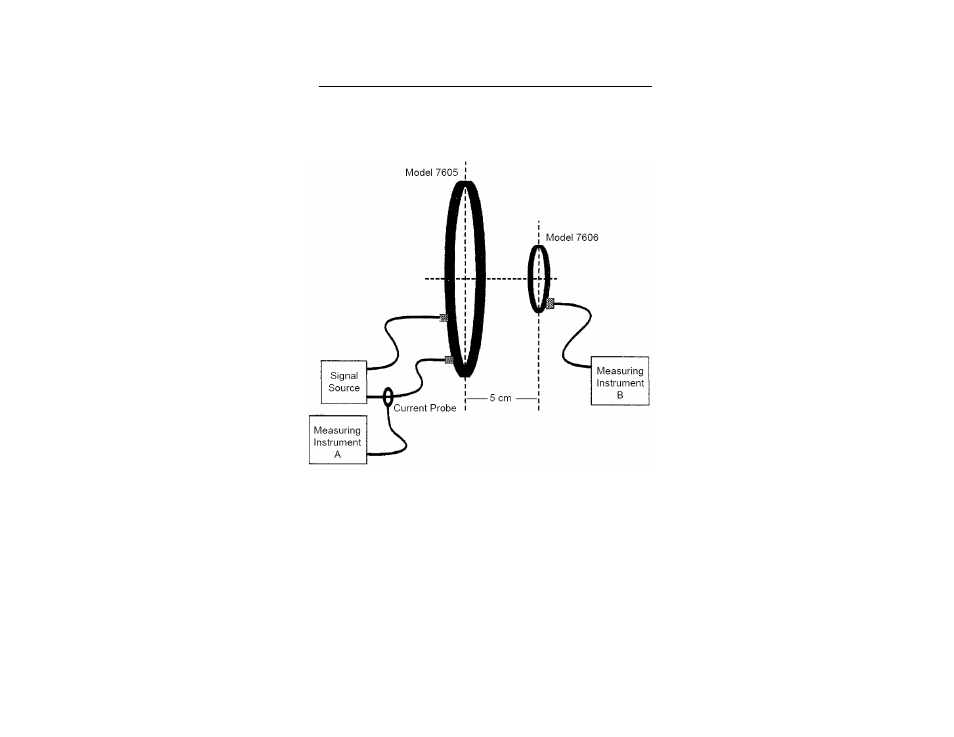

Block Diagram – Calibration Test Setup
During calibration, keep the assembly several diameters away from metal
objects. Space the current probe and other instrumentation at least one meter
from the assembly to keep it from the influence of the Model 7605.
R EQUIRED INSTRUMENTATION
• Model 7605/Model 7606 assembly
• Signal source—see page 26 for more information
• Two measuring instruments—see page 27 for more information
• Current probe—see page 27 for more information
MIL-STD-462D Method RS101 Testing | 25
