Method RS101 Testing

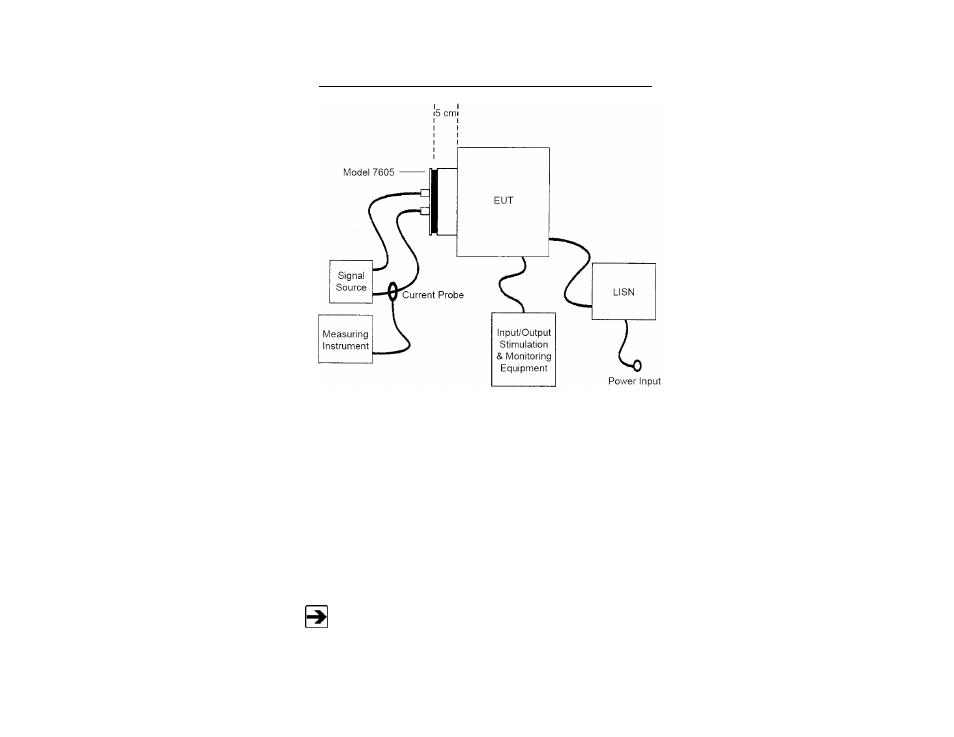

Block Diagram – RS101 Test Setup
This diagram shows EUT and these items of instrumentation:
• Model 7605
• Test signal source
• Current probe
• Measuring instrument
• Line Impedance Stabilization Network (LISN) in the EUT power line
• One or more pieces of input/output stimulating and monitoring
equipment for exercising the EUT and monitoring performance
All instrumentation, including the current probe, must be outside of the
influence of the Model 7605 magnetic field. A spacing of one meter
should be adequate.
30 | MIL-STD-462D Method RS101 Testing
