4.0 Theory of Operation
Schematic of 7605/7606 in Calibration Configuration

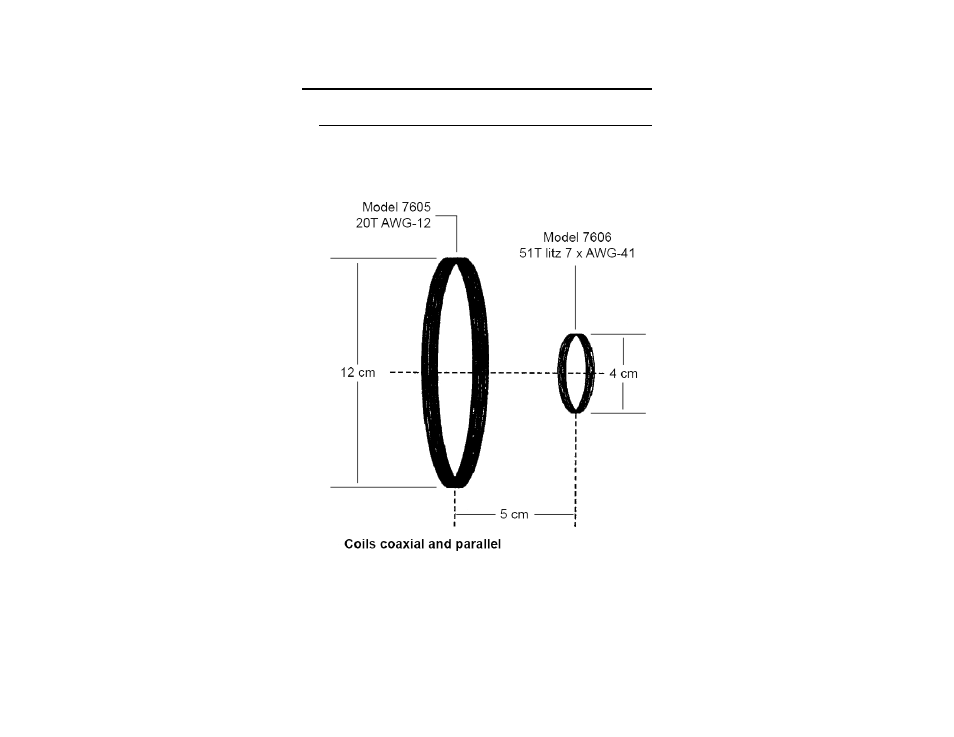

The following illustration shows the Model 7605 Radiating Loop and the
Model 7606 Radiating Sensor as loops or coils separated by a calibration
distance of 5 cm.
