Series 406X Storefront Installation Instructions
EFCO 2014 Page 6

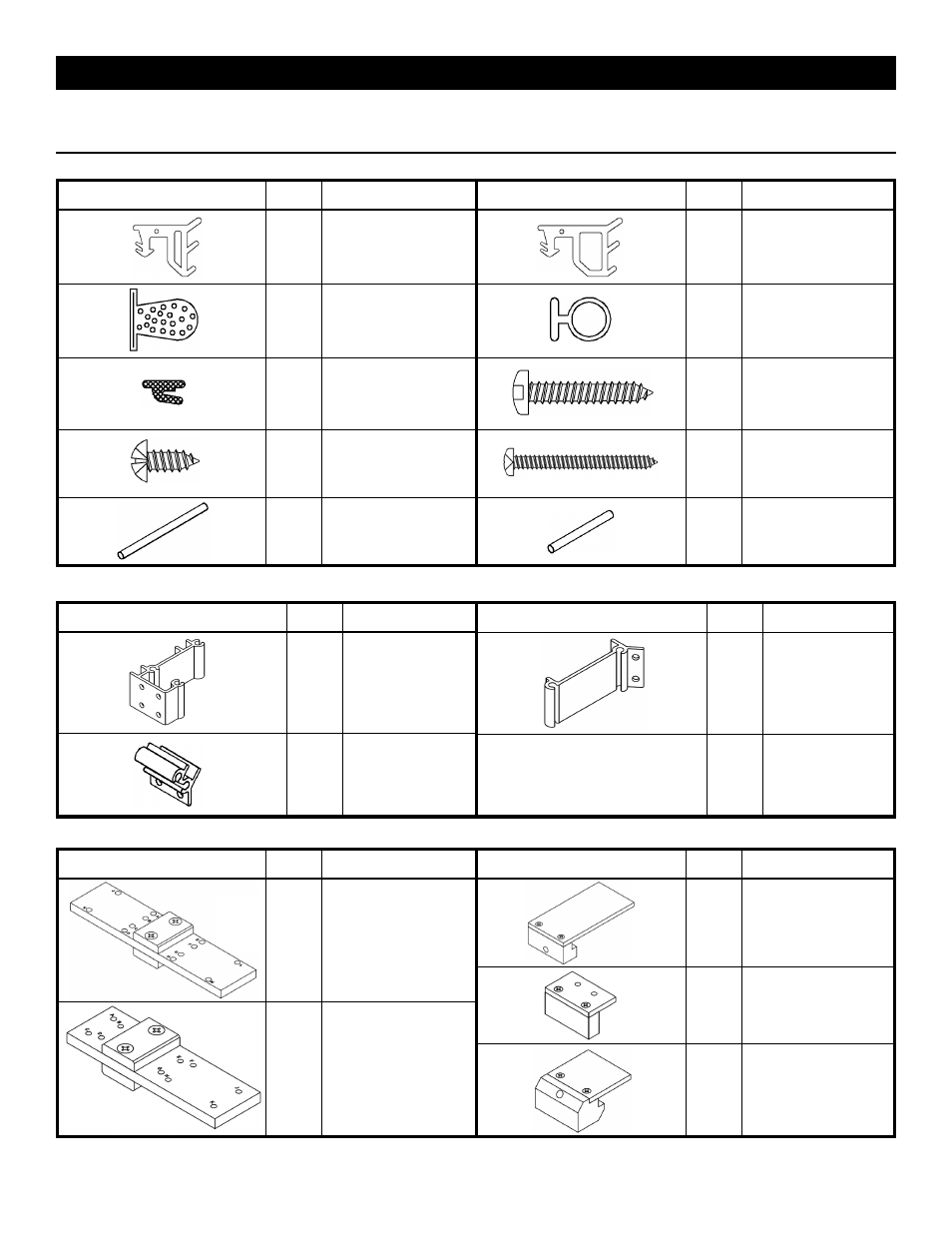

Section 2. Parts Identification
Shear Blocks
Profile Part # Description
KP33
Shear Block Pkg.
for
Horizontals
KO47
Shear Block Pkg. for
21U4
Profile Part # Description
KP32 Shear Block Pkg.
for Sill
Profile Part # Description
W165
Glazing Gasket for
Undersized Glass 3/4”
Infill @ 1” Glazing Pocket
WA04
Standard Weather Seal
@ Sub-Frames
SPL3
Frame Spline Attachment
Screw #12-11 x 1 1/4”
SQ-PH-SMS 18-8 “A”
STB5
Shear Block
Attachment Screw
#12-11 x1-5/8” PL PH-
SMS 18-8 “A”
F726
2” Rod for
Horizontal Dead Load
Support @ Perimeter
Verticals
Profile Part # Description
W164
Standard Glazing Gasket
for 1” Infill @ 1” Glazing
Pocket
WQ02
Optional
Weather Seal @
Sub-Frames
W104
Weather Seal Gasket for
Expansion Mullions
STB9
Horizontal to Shear Block
Screw #12-11 x 1/2”
PL-RH-SMS 18-8 “A”
F727
3” Rod for
Horizontal Dead Load
Support @ Int. Verticals
Misc. Parts (cont.)
Shear Blocks & Drill Fixtures
Profile Part # Description
DJ51
Screw Spline Drill Fixture
for
Vertical
Fabrication
DJ53
Shear Block Drill Fixture
for
Vertical
Fabrication
Profile Part # Description
DJ52
Shear Block Drill Fixture
for
Horizontals
DJ48
Dead Load
Support Pin Drill Fixture
DJ47
Shear Block Drill Fixture
for
Horizontal 21S2
