Series 406X Storefront Installation Instructions
EFCO 2014 Page 5

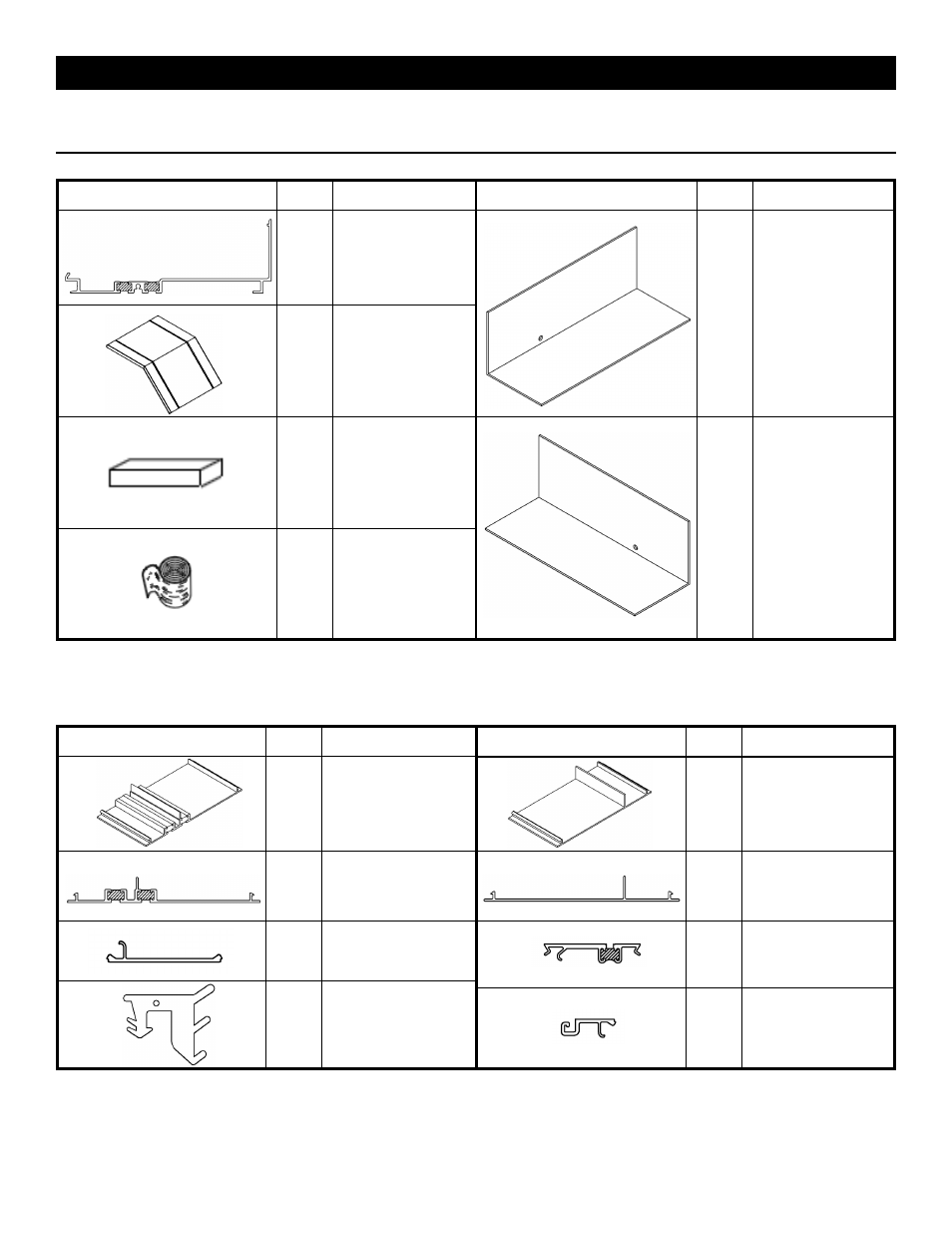

Section 2. Parts Identification
Profile Part # Description
21V1
High Performance Sill
Flashing
HDW1
Water Deflector @
Intermediate Horizontal
HCW6
Weep Baffle used
@ Sill
WM01
Bond Breaker Tape
4” X .062”
Used @ Sill Splices
Profile Part # Description
KP30
LH Sill Flashing
End-Dam
Package Use w/ 21V1
Sill Flashing
KP31
RH Sill Flashing
End-Dam
Package Use w/ 21V1
Sill Flashing
Sill and End-Dam Parts
Profile Part # Description
F707
3” Perimeter
Adaptor Clip
21U6
Stock Length
Perimeter
Adaptor Clip
LC55
Vinyl Pocket Filler @
Glass Pockets @
Perimeter
W166
Glazing Gasket for
Oversized Glass 1 1/16”
Infill @ 1” Glazing Pocket
Profile Part # Description
F729
3” Lightweight Vinyl
Perimeter
Adaptor Clip
LC69
Stock Length Lightweight
Vinyl Perimeter
Adaptor Clip
9351
Snap-In Pocket
Filler for 1”
Glazing Pocket
21T8
Glazing Adaptor for 1/4”
Glass In 1” Glazing
Pocket
Misc. Parts
