Series 403X Storefront Installation Instructions
EFCO 2013 Page 6

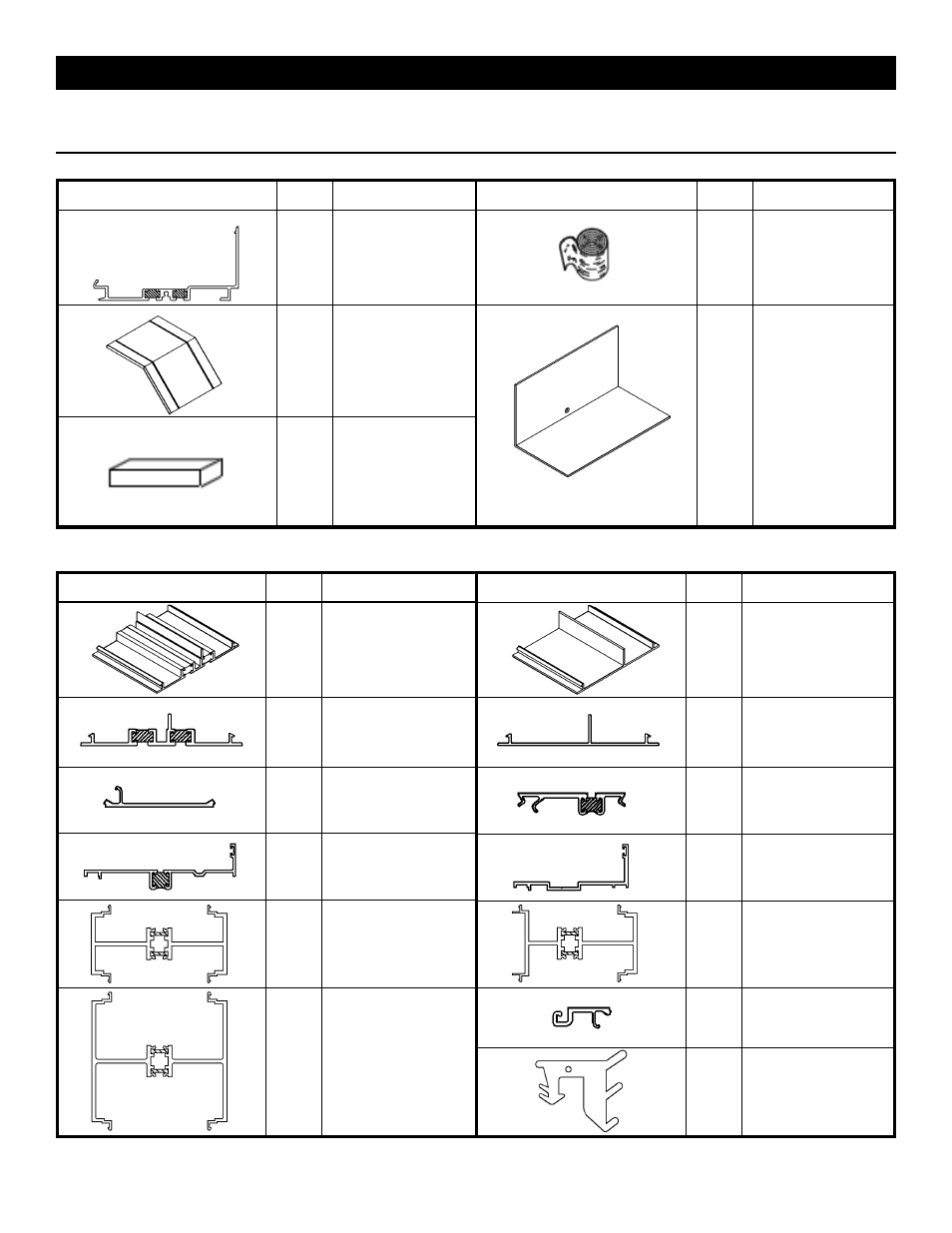

Section 2. Parts Identification
Profile Part # Description
21T1
High Performance Sill
Flashing
HDW1
Water Deflector @
Intermediate Horizontal
HCW6
Weep Baffle used
@ Sill
Profile Part # Description
KO46
Sill Flashing End-Dam
Package Use w/ 21T1
Sill Flashing
WM01
Bond Breaker Tape
4” X .062”
Used @ Sill Splices
Sill and End-Dam Parts
Profile Part # Description
F728
3” Perimeter
Adaptor Clip
21S4
Stock Length
Perimeter
Adaptor Clip
LC55
Vinyl Pocket Filler @
Glass Pockets @
Perimeter
9938
Shadow line
Window Adaptor Equal
Leg Use W104
Weathering
1G69
Horizontal / Vertical Stack
Adaptor 2” Sightline
1G15
Horizontal / Vertical Stack
Adaptor 4” Sightline
Profile Part # Description
F729
3” Lightweight Vinyl
Perimeter
Adaptor Clip
LC57
Stock Length Lightweight
Vinyl Perimeter
Adaptor Clip
9351
Snap-In Pocket
Filler for 1”
Glazing Pocket
8643
System II Window
Adaptor Equal Leg
1G68
Horizontal / Vertical
Stack Adaptor
2” Sightline w/ Reveal
21T8
Glazing Adaptor for 1/4”
Glass In 1” Glazing Pock-
et
W166
Glazing Gasket for
Oversized Glass 1 1/16”
Infill @ 1” Glazing Pocket
Misc. Parts
