EFCO CORPORATION 6/2012 PART NO. Y552
Series 5500 Inside Glazed Installation Instructions

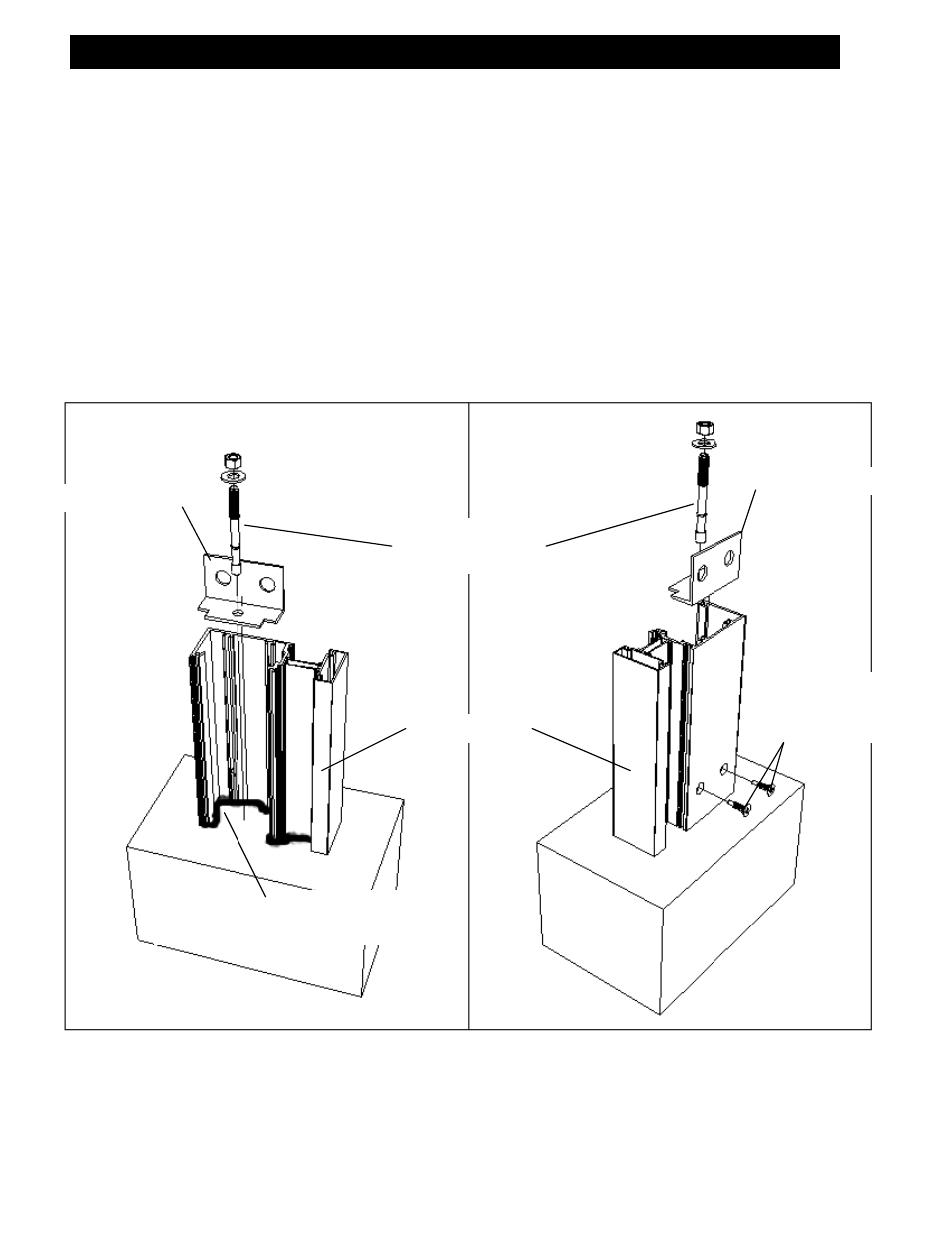

STEP #5 ANCHOR DOOR JAMB
A. To maintain Exterior sealant line, apply silicone to the interior surfaces of the door jamb
and tool to the condition.
B. Ensure the clip is flush with the bottom of the mullion and the top of the condition. Attach
the anchor clip to the door jamb with screws as shown.
C. Drill anchor bolt holes through the clip and into the substrate as required.
D. Bolt the anchor clip to the condition. (See page 39.)
ANCHOR CLIP
ANCHOR BOLTS
AS REQUIRED
DOOR JAMB
ANCHOR CLIP
ATTACHMENT
SCREWS
ANCHOR CLIP
Seal and Tool interior of Door
jamb to the condition
