Series 5500 Inside Glazed Installation Instructions
2"
2"
STEP #4 INSTALL EXTERIOR GASKETS IN PRESSURE PLATE
A. Remove the glazing gaskets from the reel, and allow them to relax and shrink.
B. Apply sealant into the raceways a minimum of 2” in each direction from the corners of the
D.L.O. (Refer to the illustration below.)
C. Once the gaskets have relaxed, cut them and install the gaskets into position. The interior
vertical gaskets must be cut vertical D.L.O. plus 1 3/4”. Place the gasket in place starting at
the center of the D.L.O. Crowd in the excess at the ends. The vertical gaskets should run
through and extend past the horizontal gaskets.
D. Cut the horizontal gaskets D.L.O. plus 1/2” and insert the gasket in place, starting at the
center of the D.L.O. Crowd in the excess at the ends.
E. Seal all gasket corners, and butt the joints as indicated in the illustration on page 28.

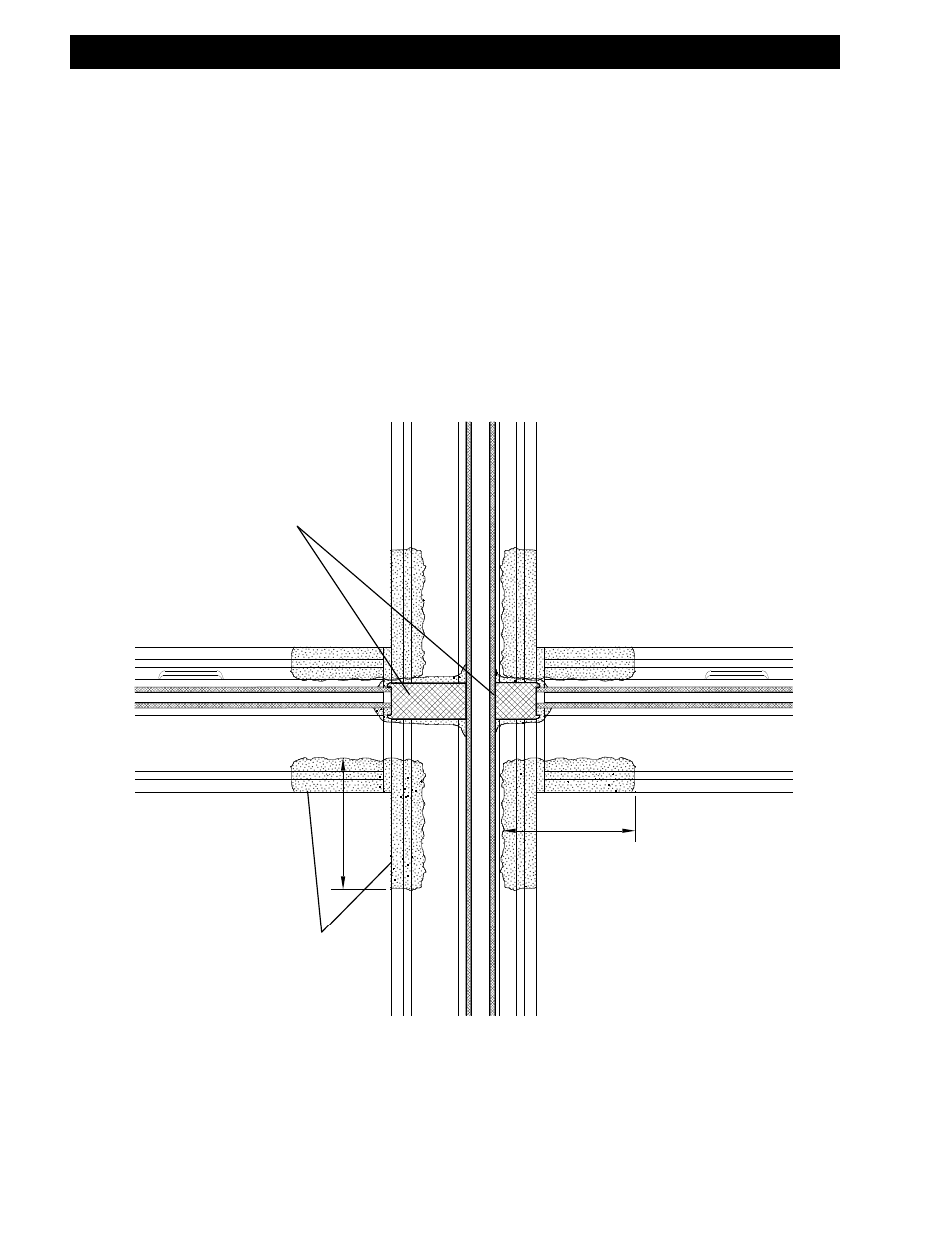

Seal the gasket race-
way and back side of
the gasket 2” in each
direction at all gasket
corners with sealant.
JOINT PLUGS
Note: Sealant should only
be applied immediately be-
fore applying gaskets and
setting glass.
SECTION VIEW OF EXTERIOR
PRESSURE COVERS
Section IV: Glazing Preparation
