24

Top Oven Door

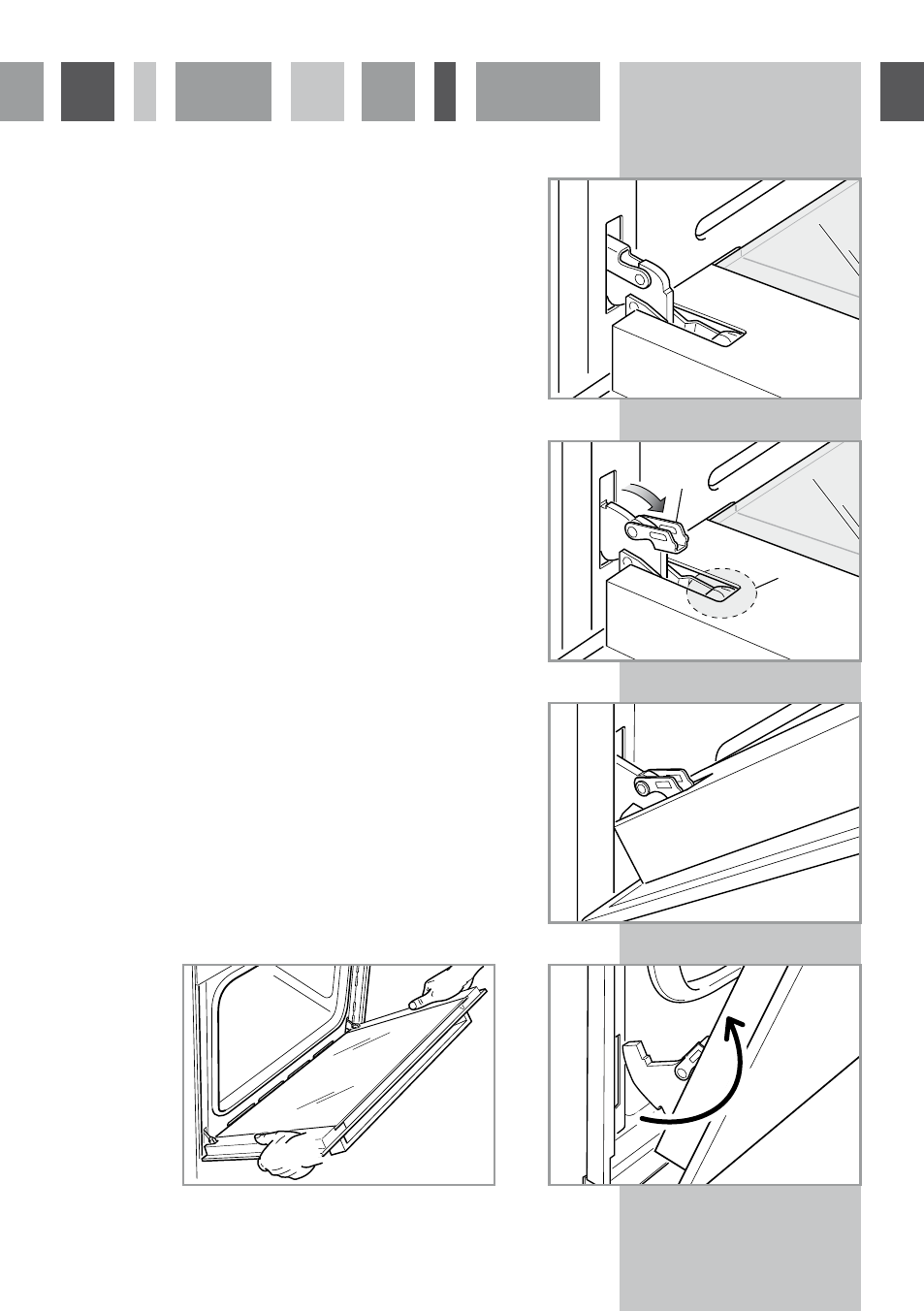

Removing the Oven Door

The oven door can easily be removed as follows:
– Open the door to the full extent (fig. 20a).
– Open the lever A completely on the left and right hinges (fig.

20b).

– Hold the door as shown in fig. 20.
– Gently close the door (fig. 20c) until left and right hinge levers

A are hooked to part B of the door (fig. 20b).

– Withdraw the hinge hooks from their location following arrow

C (fig. 20d).

– Rest the door on a soft surface.

– To replace the door, repeat the above steps in reverse order.

B

A

C

Fig. 20

Fig. 20d

Fig. 20c

Fig. 20b

Fig. 20a

A

B

C
