Correct Position of Triple Ring Burner

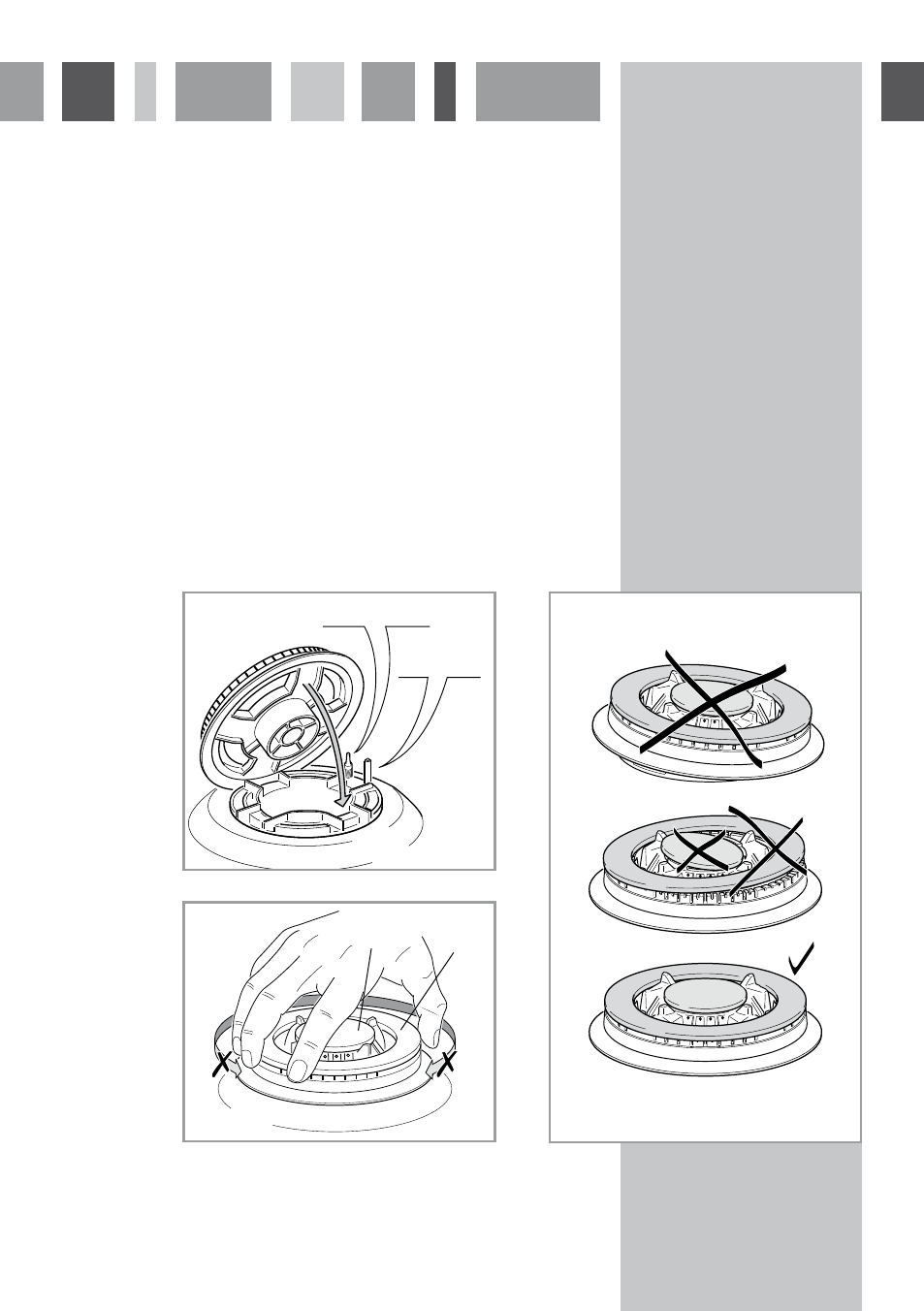

The triple ring burner must be correctly positioned (see fig. 14); the burner ribs must be fitted in their
housing as shown by the arrow.
The burner correctly positioned must not rotate (fig. 15).
Then position the cap “A“ and the ring “B“ (figs. 15 - 16)

A

B

Fig. 15

Fig. 14

Fig. 16

Sensor “T”

Ignitor “S”
