20
F
C
Fig. 13 Fig. 12
Burners and Grids
– These parts can be removed and cleaned with appropriate products.
– After cleaning, the burners and their flame spreaders must be well dried and correctly replaced.
– It is very important to check that the burner flame spreader and the cap have been correctly positioned.
Failure to do so can cause serious problems.
– Check that the electrode “S” (figs. 12-14) is always clean to ensure trouble-free sparking.
– Check that the sensor “T” (figs. 12-14) next to each burner is always clean to ensure correct operation
of the safety valves.
– Both the sensor and ignition plug must be very carefully cleaned.
– Note: To avoid damage to the electric ignition do not use it when the burners are not in
place.

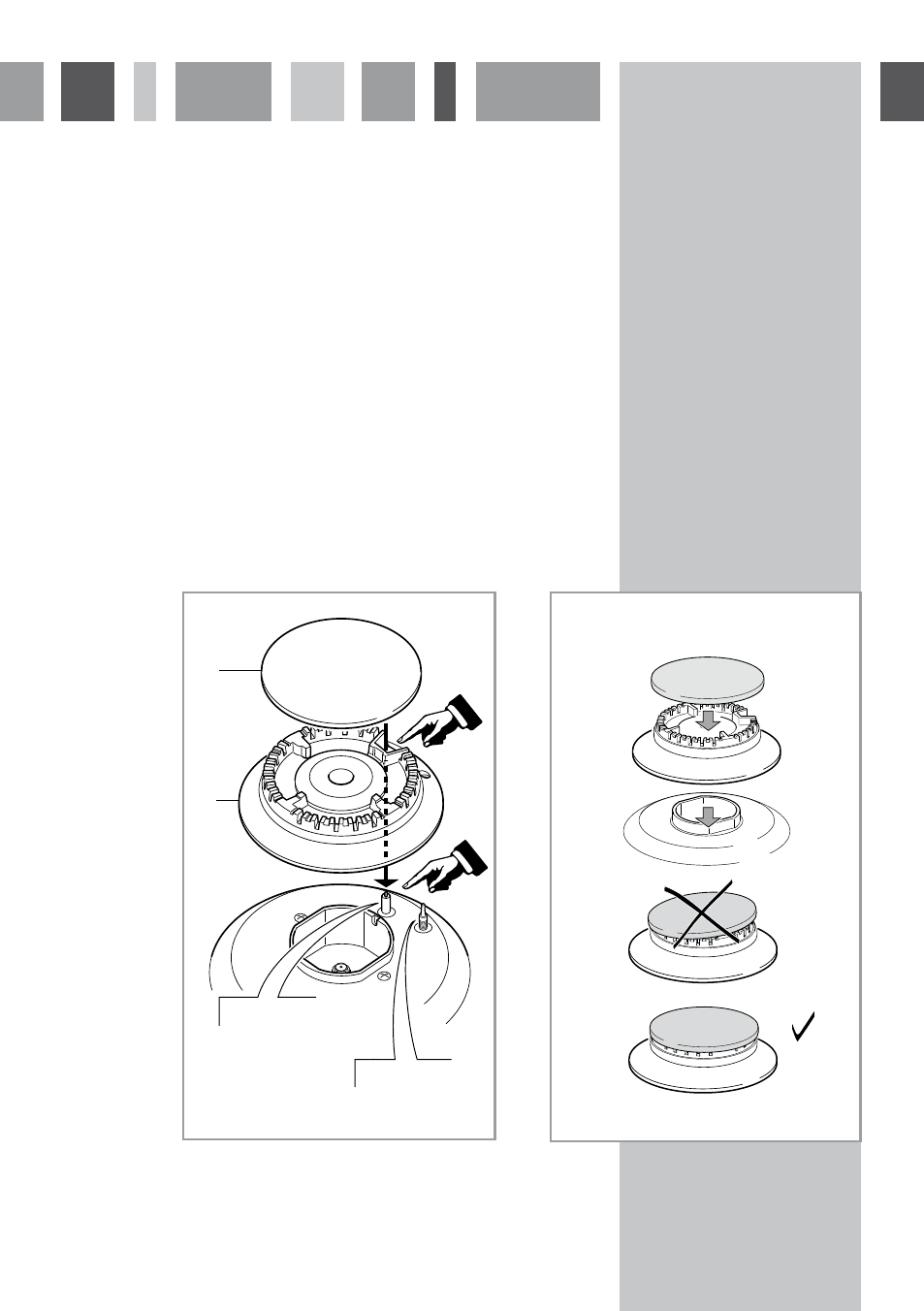

Correct Positioning of the Burners (Auxiliary, Semi-Rapid and Rapid Burners)
– It is very important to check that the burner flame spreader “F” and the cap “C” have been correctly
positioned (see figs. 12 and 13). Failure to do so can cause serious problems.
Ignitor “S”
Sensor “T”
