CE Package Installation Guide for 224 Automotive Dynamometers
C E P A C K A G E
CE Drum Guards—Pit
8
I NSTALLING THE CE D RUM G UARDS —P IT
The CE Drum Guards are secured to the dyno’s pit covers. The following instructions
are for the 224 pit dyno. If you have a 224 above ground dyno please refer to
“Installing the CE Drum Guards—Above Ground” on page 4.
1
Secure the front and rear CE drum guards to the two long pit covers using ten
1/4-20 x 5/8" panhead screws.

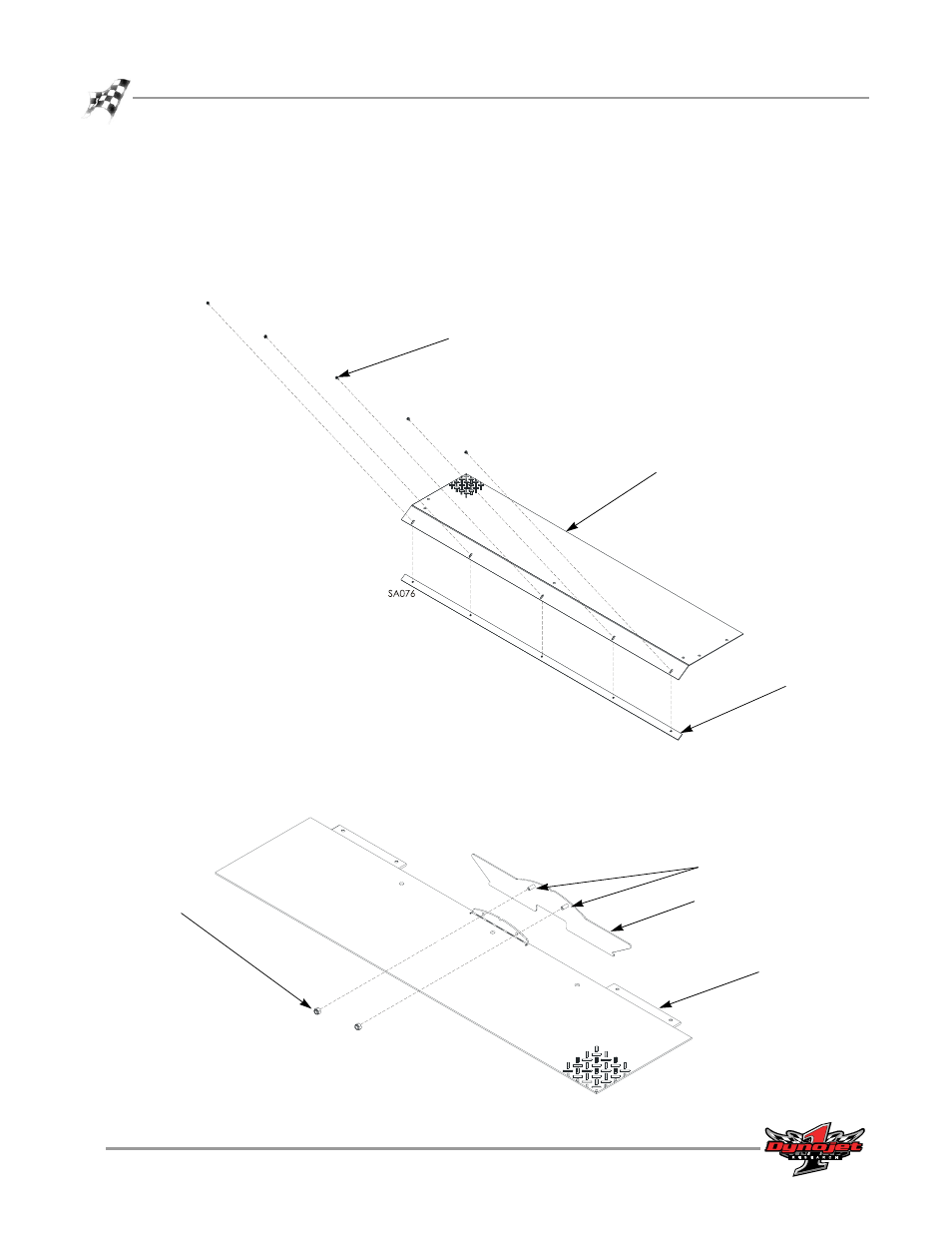

Figure 7: Securing the Front/Rear Drum Guards to the Long Pit Covers
2 Secure the side CE drum guards to the two end pit covers using four 1/4-20 x
nylock nuts.
Figure 8: Securing the Side Drum Guards to the End Pit Covers
screw
long pit cover
front/rear
drum guard
SA089
side drum guard
end pit cover
nylcck nut
stud
