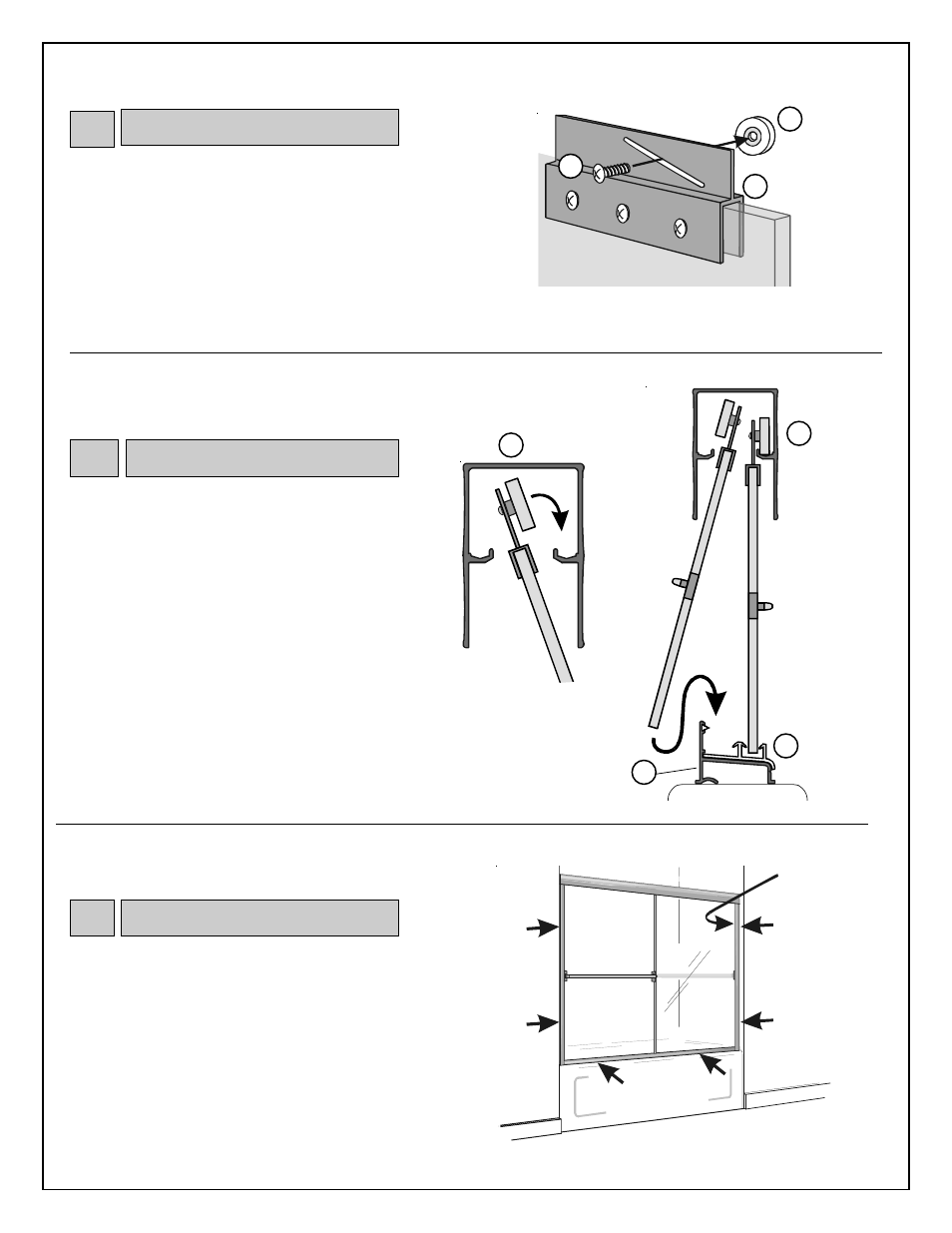

Mount rollers (F) to roller fins using 8-32 x 3/8"
truss head screws (M). Rollers are to be mounted
on same side of doors as towel bars and at the
midpoint of slots.
Rollers may be positioned up or down in slots to
adjust for out of plumb situations.
Roller
8-32 x 3/8"
Truss Head
Screw
M
Roller Fin G
7 Rollers
(F)
F
The use of a caulking compound will assure a
water-tight seal. Seal unit by applying caulk along
outside edge of enclosure where metal and bath
meet, especially where sill meets tub.
If desired, caulk inside of enclosure where jambs
meet walls.
OUTSIDE OF SHOWER
If desired, caulk
inside of shower
where jambs
meet wall.
Lift inside door panel into header with towel bar
facing inside of bath. Seat rollers on roller track
while guiding bottom of door into sill guide.
Repeat for outside door, hanging panel with towel
bar facing outside of bath.
8 Hanging Door Panels
Inside
Panel
Outside
Panel
Header
Sill
Guide
OUTSIDE OF
SHOWER
A
H
C
Inside
Panel
Header
OUTSIDE
OF
SHOWER
C
9 Caulking
Caulk outside
of shower
where metal
and bath meet.
