Towel bars, Rollers, Hanging door panels – Coral Industries Freestyle Bypass (1/4 Frameless) - 2FG1-G User Manual
Page 4: Caulking

2FG1-G 3/06
The use of a caulking compound will assure a water-tight
seal. Seal unit by applying caulk along outside edge of
enclosure where metal and bath meet, especially where
sill meets tub.
If desired, caulk inside of enclosure where jambs meet
walls.

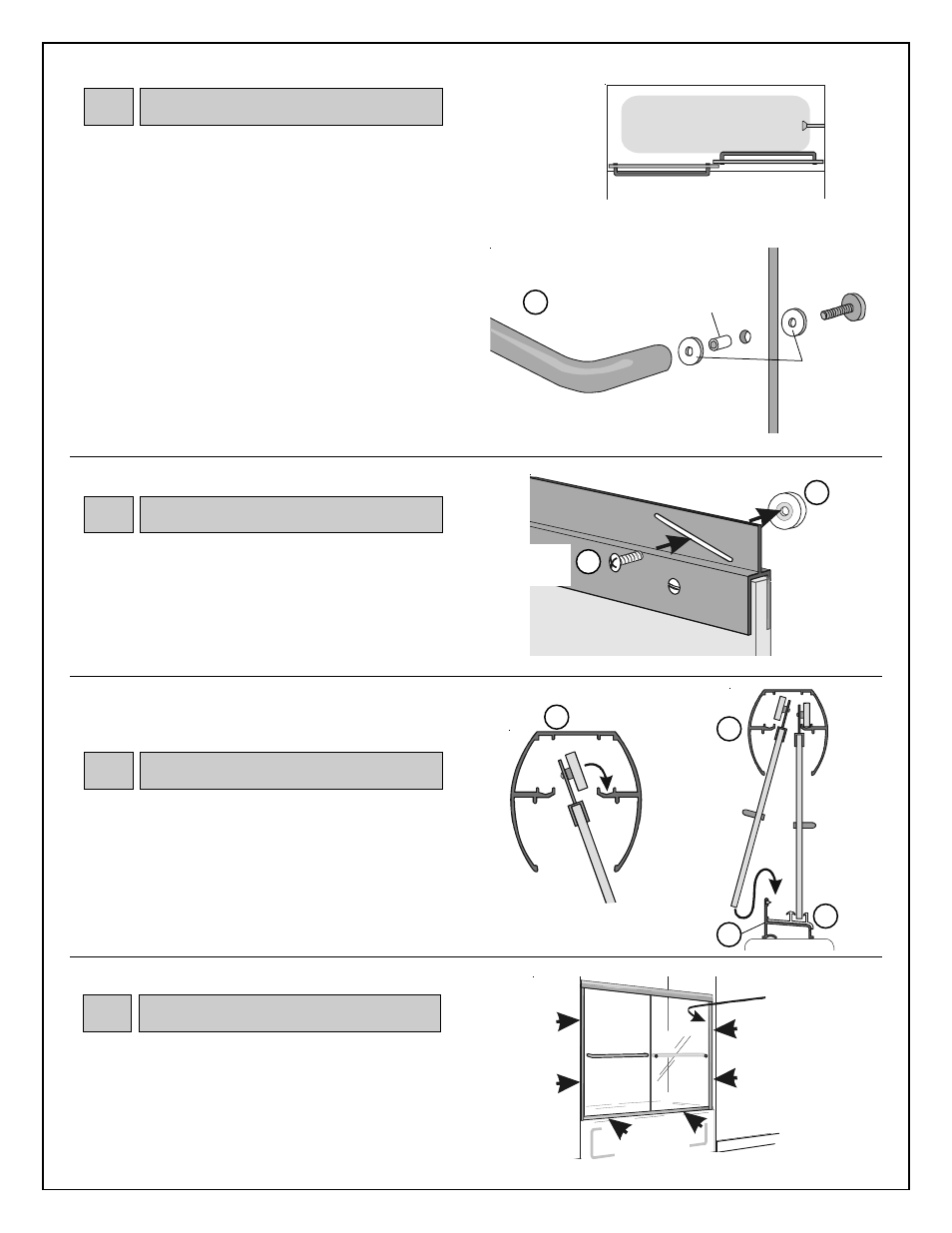

Rollers (E) are to be mounted on towel bar side of door
panels. Mount rollers at midpoint of slots in roller fins
using 8-32 x 3/8" truss head screws (K).
Rollers may be positioned up or down in slots to adjust for
out of plumb situations.
Lift inside door panel into header with towel bar facing
inside of bath. Seat rollers in roller track while guiding
bottom of door into sill guide.
Repeat for outside door, hanging panel with towel bar
facing outside of bath.
8-32 x 3/8"
Truss Head
Screw
Roller
Towel Bar Kit
Towel Bar
Round
Bushing
Plastic
Washer
K
Header
Inside
Panel
Inside
Panel
Outside
Panel
D
E
OUTSIDE
OF BATH
C
Header
C
Sill
A
Guide
G
Towel bars are to be mounted onto door panel through
predrilled holes in glass. Towel bar for outside panel
faces outside of bath while bar for inside panel faces
inside of bath.
Towel bar kit comes with parts assembled in the order
they will be installed on glass. Disassemble parts. Press
bushings into holes in glass. Trim as needed so that
bushings are flush with surface of the glass.
Reassemble towel bar, plastic washers, and end cap on
door panel as shown. Tighten both end caps evenly.
Allen wrench may be used to aid in tightening by inserting
into hole of end cap and turning. Repeat for remaining
door panel.
End Cap
6
Towel Bars
(D)
7
Rollers
(E)
8
Hanging Door Panels
9
Caulking
If desired, caulk
inside of enclosure
where jambs meet
walls.
Caulk
Caulk
OUTSIDE OF BATH
Towel bar for outside
panel faces outside
of bath while bar for
inside panel faces
inside of bath.
OUTSIDE OF BATH
