Page 3: Roller fin

2FG1-G 3/06

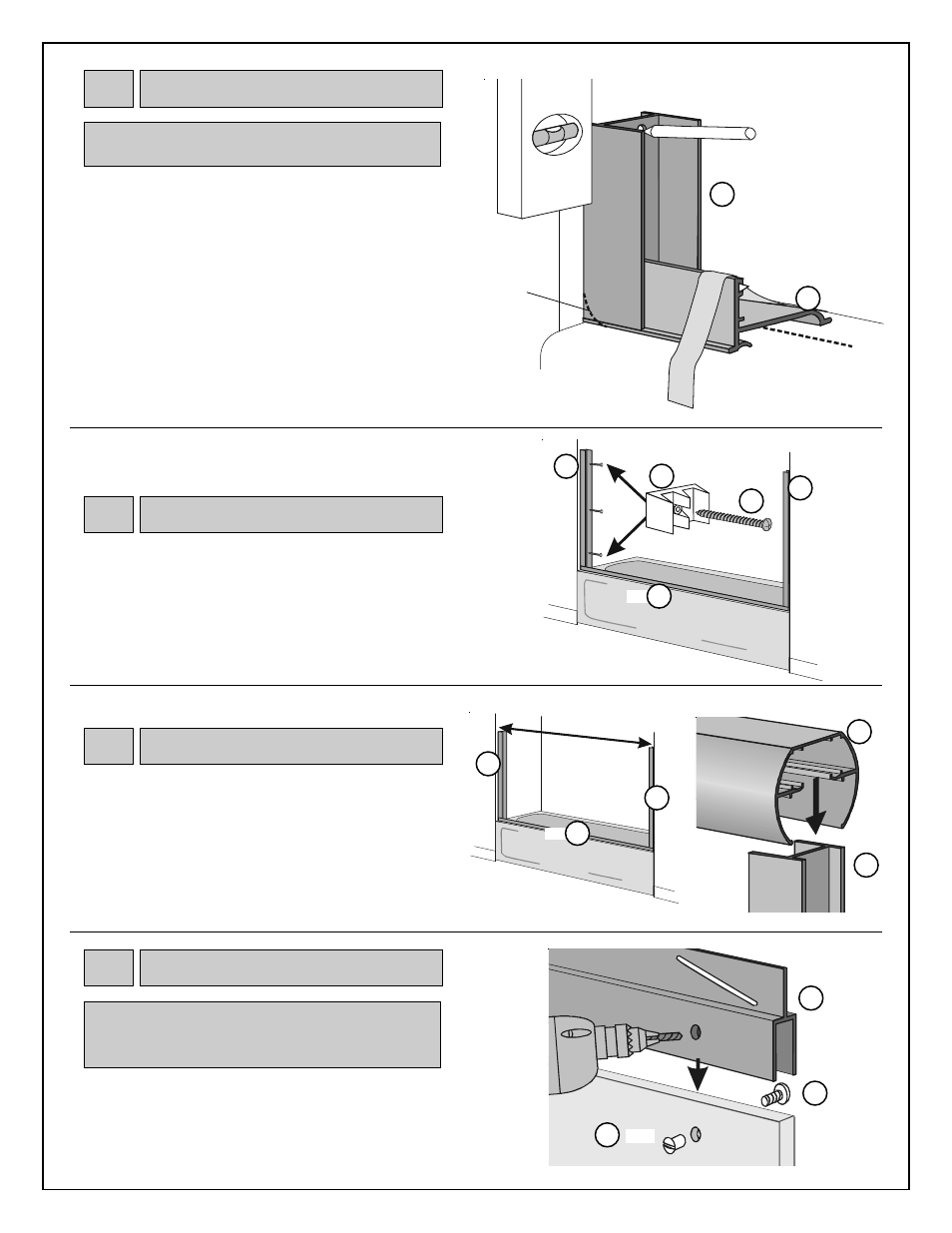

Position sill on centerline of tub with tall edge of sill
toward outside of tub. If necessary for a smooth fit, file
sharp corners of sill to fit contour of your unit. Tape sill to
tub with masking tape. This will help hold sill in place
while positioning jambs.
Place one jamb (B) against wall with short legs against
wall and notched end of jamb resting firmly on sill. Align
jamb vertically using a level and mark wall through
prepunched holes. Repeat procedure with remaining
jamb.
Remove jambs and sill from tub and drill where marked
using 1/8" drill bit.
Reposition jambs on tub and mount to wall using
8A x 1 1/4 " pan head screws (I). Top and bottom holes
are mounting positions for bumpers (H).
Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
Lower header over jambs until seated squarely on legs of
both jambs.
8A x 1 1/4"
Pan Head
Screw
Level
Bumper
Jamb
Mark wall
through pre-
punched holes
and drill.
B
Centerline
File to fit
contour of
unit if
needed
Measure
Masking
Tape
OUTSIDE OF BATH
OUTSIDE OF BATH
I
Jamb
B
Jamb
B
Jamb
B
Jamb
B
Sill
A
Sill
A
Sill
A
H
2
Jambs
(B)
3
Bumpers
(H)
4
Header
(C)
To mount top channel/roller fin (M), align fin with top of
glass and mark through holes in glass. Drill where
marked using 1/4" drill bit in roller fin to match holes in
glass. Secure fin to glass with plastic post (N) and
10-32 x 3/8" pan head screw (O) provided.
Some units come with top channel/roller fin pre-
installed on door panels. If pre-installed on your
unit, proceed to next step.
Post
10-32 x 1/4"
Pan Head
Screw
M
Top Channel/
Roller Fin
N
O
5
Roller Fin
(M)
When anchors (J) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
Header
Jamb
B
C
OUTSIDE OF BATH
