Sill, Guides, Jambs – Coral Industries Freestyle Bypass (1/4 Frameless) - 2FG1-P (If Purchased from a Plumbing Wholesaler) User Manual
Page 4: Bj i, Bumpers

2FG1P 11/05

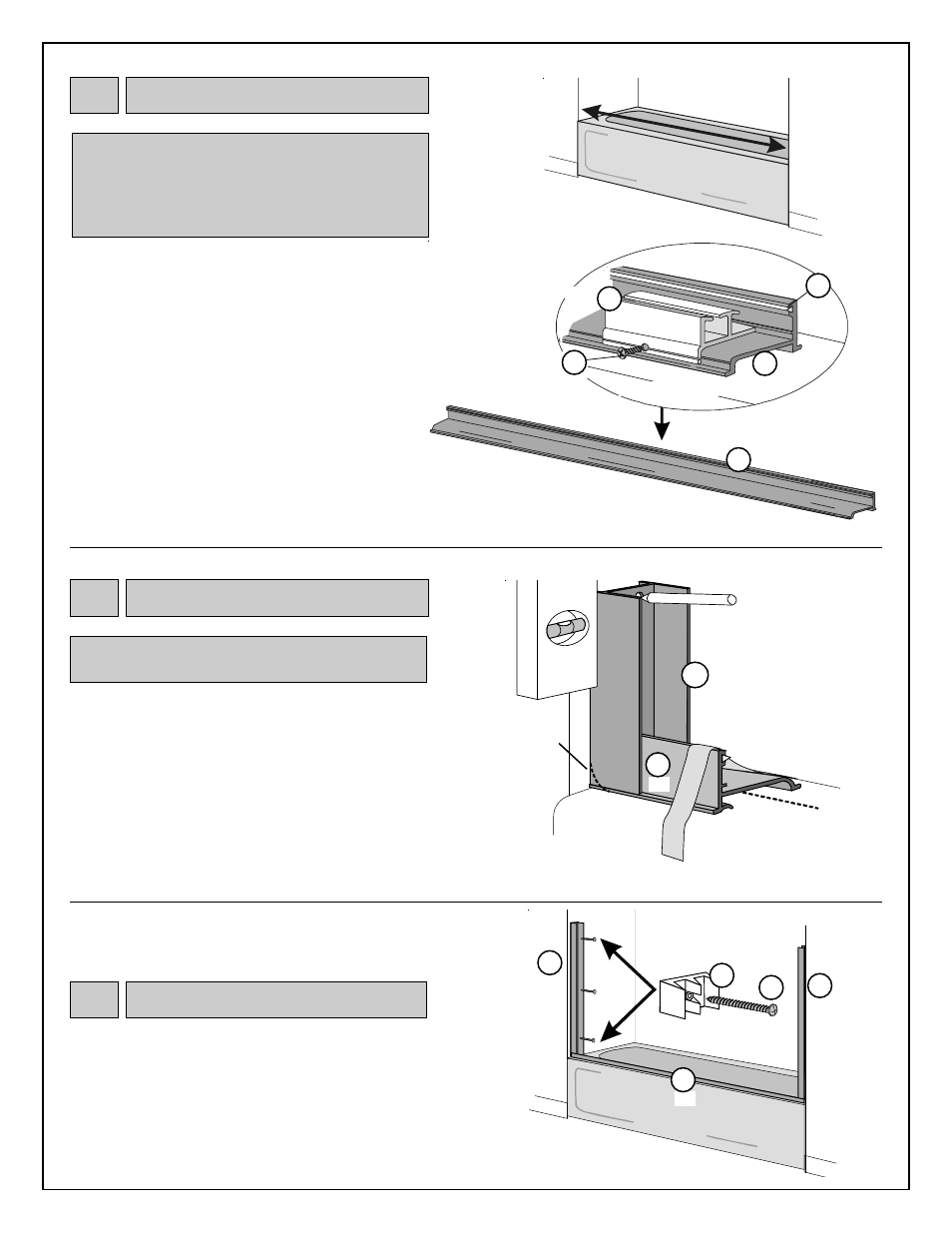

Measure wall to wall at tub level, and cut your sill (A) 5/8"
less than that measurement.
Slide vinyl track guide (D) into small groove on upright
of sill. Trim end flush with edge of sill.
Locate center of sill. Position guide (H) at center of sill
with curved leg fitting over curve of sill, and back of guide
fitting under small lip on back upright of sill.
Position 1/8" drill bit in small groove on curved leg of
guide and drill through guide into sill. Secure guide to
sill with 8A x 3/8" pan head screw (L).
1
Sill
(A)
/ Guides
(D, H)
Due to the manufacturing process, there may be rack
marks present at one end of your sill and header. Sill
and header must be trimmed to fit your individual
opening. When cutting sill and header, make certain
to trim off end with rack marks.
Measure
INSIDE OF BATH
Vinyl Track
Guide
Sill
A
D
8A x 3/8" Pan
Head Screw
Sill
A
Place guide
at center of sill
L
Guide
H
Position sill on centerline of tub with tall edge toward
outside of tub. If necessary for a smooth fit, file sharp
corners of sill to fit contour of your unit. Tape sill to tub
with masking tape. This will help hold sill in place while
positioning jambs.
Place jamb (B) with short legs against wall and bottom
of jamb resting on sill. Align jamb vertically using a level
and mark wall through prepunched holes. Repeat
procedure with remaining jamb. Remove jambs from
tub and drill where marked using 1/8" drill bit.
When anchors (K) are used holes should be drilled
using 3/16" drill bit. (Use masonry bit for tile.)
2
Jambs
(B)
B
Sill
Mark wall
through pre-
punched holes
and drill.
Level
Masking
Tape
Jamb
OUTSIDE OF BATH
Centerline
A
Reposition jambs on tub and mount to wall using
8A x 1 1/4 " pan head screws (J). Top and bottom
holes are mounting positions for bumpers (I).
8A x 1 1/4"
Pan Head
Screw
OUTSIDE OF SHOWER
Jamb
B
Jamb
B
J
I
Bumper
3
Bumpers
(I)
File as
necessary to
fit contour of
your unit.
Sill
A
