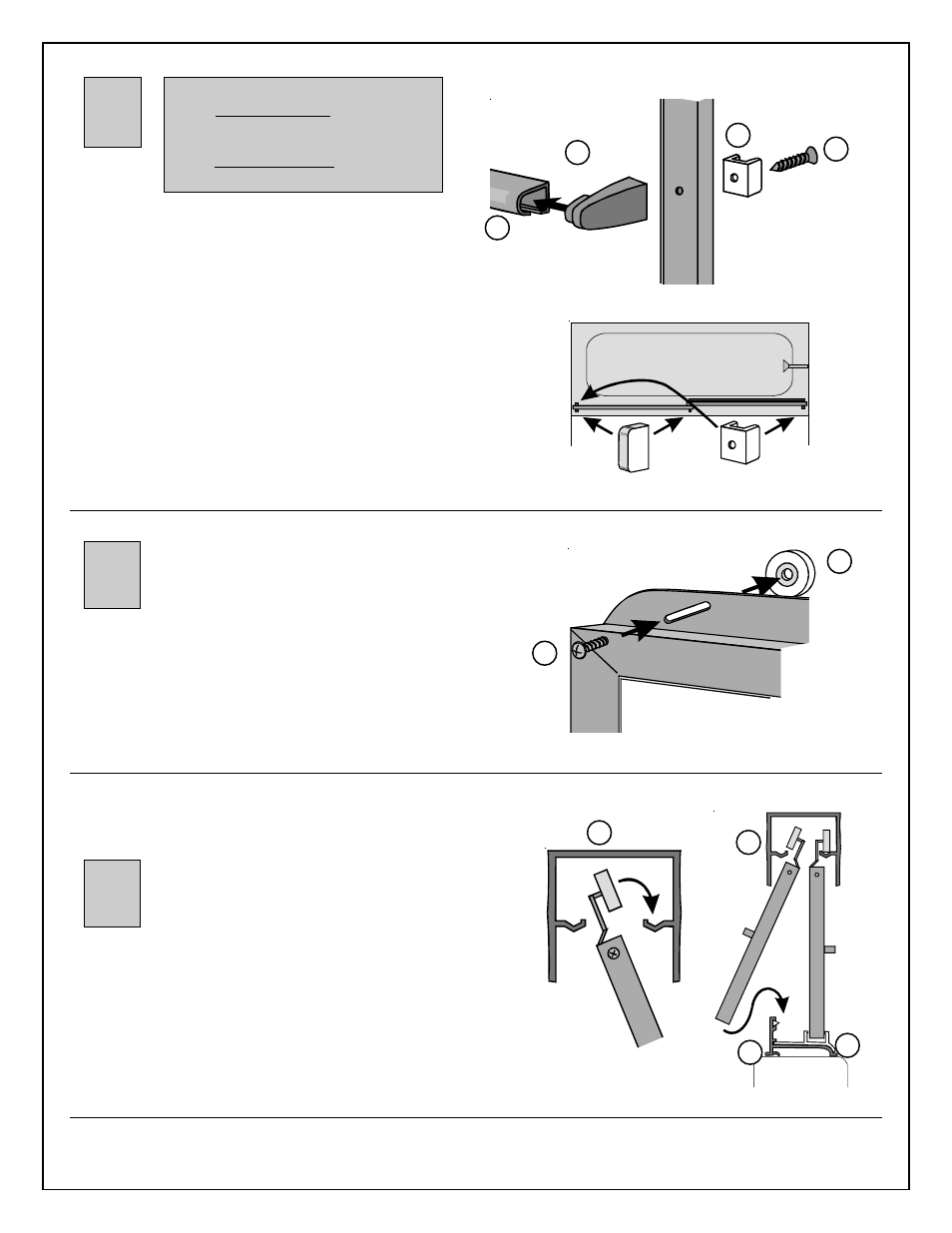

Lift inside door panel into header with towel bar facing
inside of bath. Seat rollers in roller track while guiding
bottom of door into sill guide. Repeat for outside door,
hanging panel with towel bar facing outside of bath.
Mount rollers (F) to top channel of doors using 8-32 x 3/8"
truss head screws (K). Rollers are to be mounted on
same side of doors as towel bars and at the midpoint of
slots.
Rollers may be positioned up or down in slot to adjust for
out of plumb situations.
Inside
Panel
Outside
Panel
Header
Inside
Panel
6
K
8-32 x 3/8"
Truss Head
Screw
F
Roller
Seal unit by caulking along outside of enclosure where metal and bath meet, especially where sill and tub meet. If desired,
caulk inside enclosure where jambs meet walls.
C
Header
C
Sill
A
Guide
G
OUTSIDE
OF BATH
Choose door panel on which you would like towel bar to be
mounted. (Normally, towel bar is mounted on outer panel
facing outside of shower, and pull handles are on inner
panel facing inside of shower.)
Insert towel bar bracket from kit (L) into each end of towel
bar (D). Mount towel bar and pull/stop to jamb side of door
panel using 8A x 1 1/4" pan head screw. Attach opposite
end of towel bar to door panel using 8A x 1" pan head
screw.
On remaining panel, mount pull handle and pull/stop to
jamb side of panel using 8A x 1 1/4" screw. Mount remain-
ing pull handle on opposite side of panel using 8A x 1"
screw.
5 Painted surface of designer glass
faces in toward shower on units with
chrome, gold, or bronze metal frames.
Painted surface of designer glass
faces outside of shower on units with
painted metal frames.
Pull/Stop Pull Handle
8A x 1 1/4"
Flat Head
Screw
Towel Bar
Bracket
Pull/Stop
D
Towel Bar
L
