21Y1 (BYMT) 8/01
Measure from wall to wall (over the top of both jambs)
and cut header (C) to that measurement.
Lower header over jambs until seated squarely on
legs of both jambs.
Secure header to jambs by drilling a 1/8" hole through
header into jambs on inside of tub near walls. Join
using 8A x 3/8" pan head self drilling screws (O).
4
2
Reposition jambs on tub and mount to wall using 8A x 1 1/4 "
pan head jamb screws (H). Top and bottom holes are mounting
positions for bumpers (I).

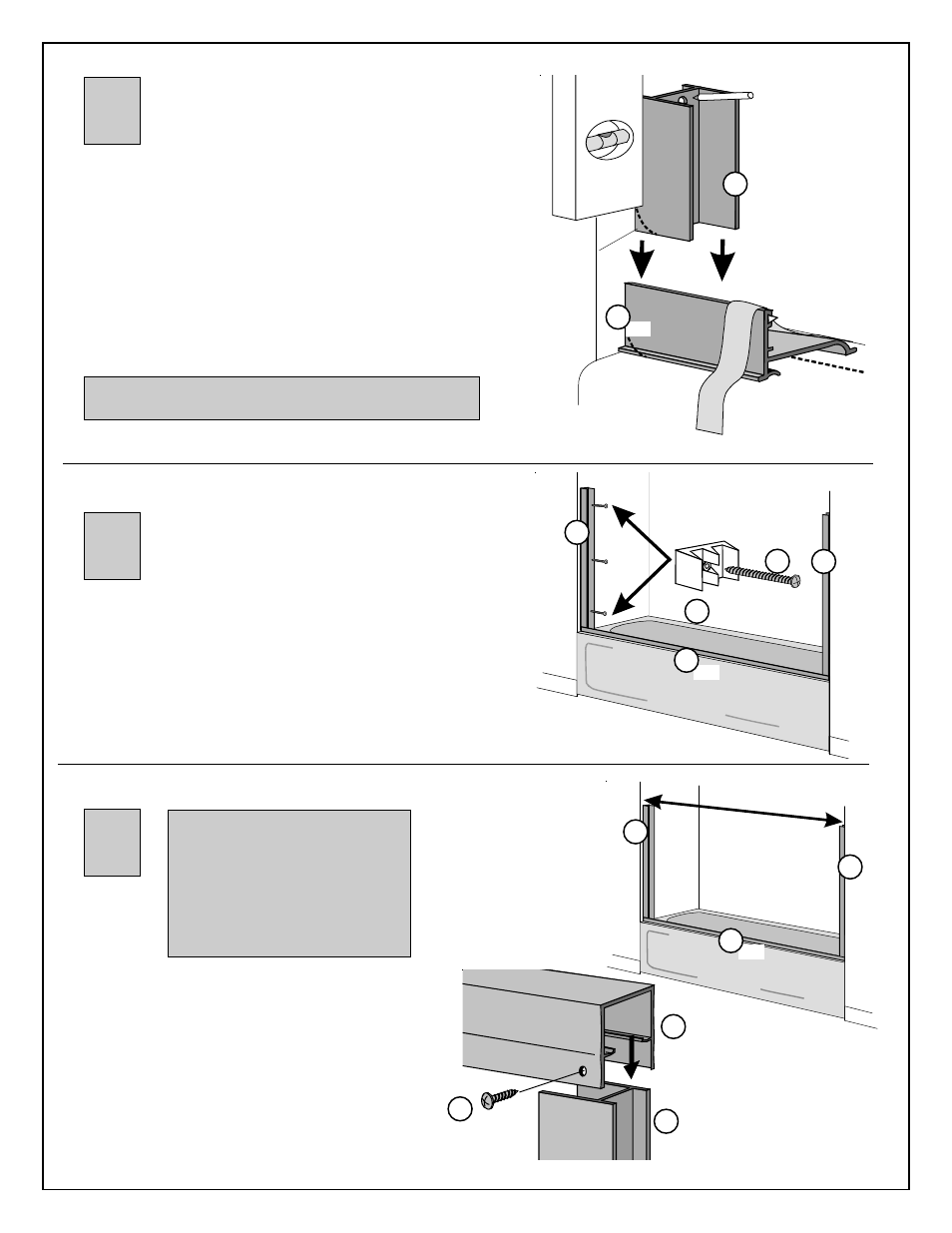

Position sill on centerline of tub with tall edge of sill toward
outside of tub. Tape sill to tub with masking tape. This will help
hold sill in place while positioning jambs.
Place one jamb (B) against wall with short legs against wall and
bottom resting firmly on sill. If necessary for a smooth fit, file back
of jamb (short legs) to fit contour of unit. Align jamb vertically
using a level and mark wall through prepunched holes. Repeat
procedure with remaining jamb.
Remove jambs and drill where marked using 1/8" drill bit.
When anchors (M) are used holes should be drilled using
3/16" drill bit. (Use masonry bit for tile.)
3
Masking Tape
Jamb B
Sill
Mark wall
through hole in
jamb and drill.
Bumper
Level
I
H
Jamb 8A x 1 1/4"
Pan Head
Screw Jamb
B
B
Measure
Jamb
B
Header
C
8A x 3/8"
Pan Head Self
Drilling Screw
O
OUTSIDE OF BATH
INSIDE OF BATH
OUTSIDE OF BATH
File to fit
contour of
unit if
needed
A
Centerline
Sill
A
Sill
A
Jamb
B
Jamb
B
Due to the manufacturing
process, rack marks may be
present at one end of your
header. All headers must be
trimmed to fit individual openings.
When cutting header, make
certain to trim off end with rack
marks.
