26R1-G 5/07
Seal unit by caulking along outside of enclosure where
metal and bath meet, especially where sill and tub
meet.
If desired, caulk inside of enclosure where jambs meet
walls.
Inside
Door
Panel
Inside
Door Panel
Header Header
Outside
Door
Panel
Sill
Guide
OUTSIDE
OF BATH
OUTSIDE
OF BATH
C
C
G
Caulk

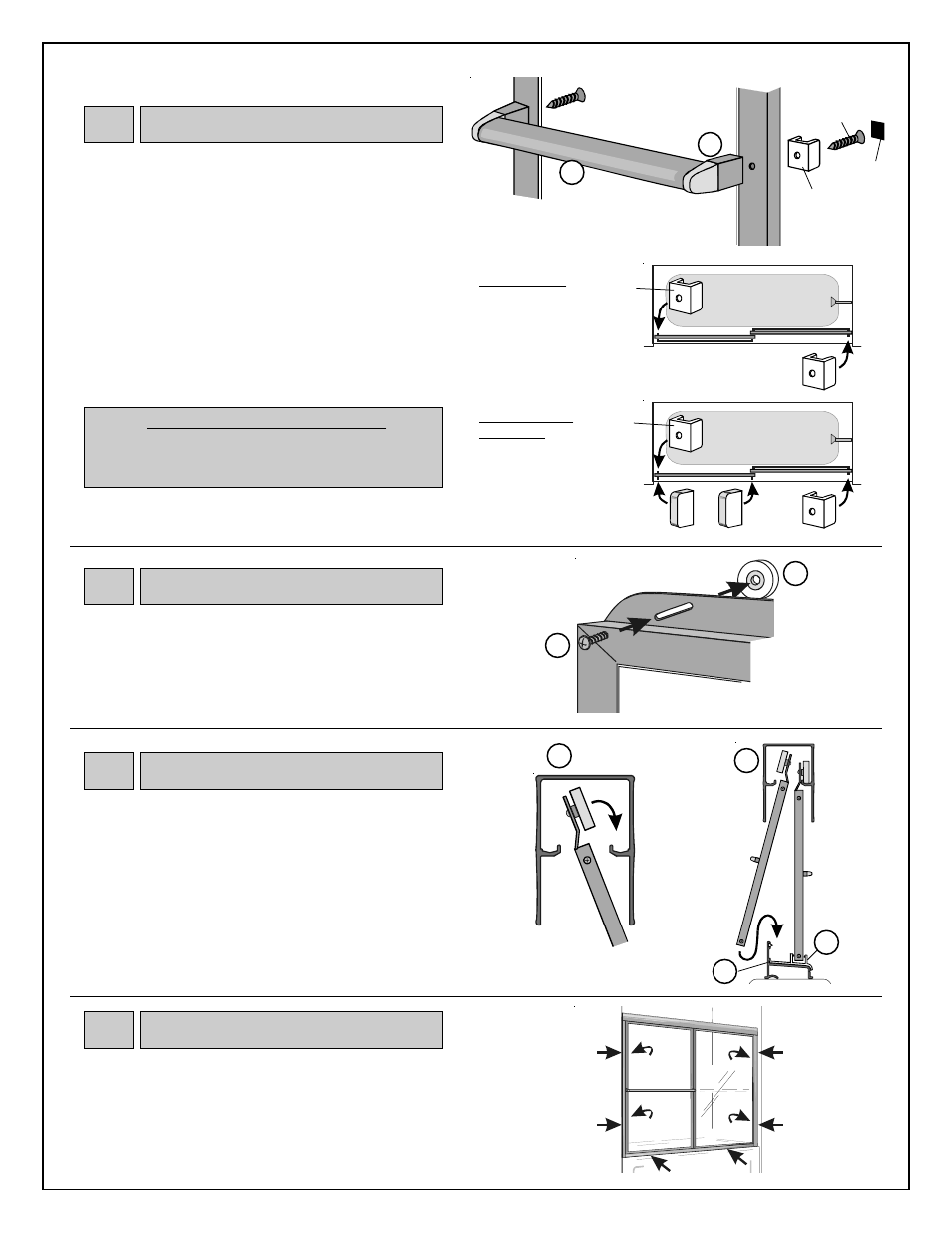

Mount towel bar and pull/stop to door panel using
8A x 1 1/4" flat head screw. On opposite end of towel
bar, mount bracket to door panel using 8A x 1" pan
head screw. Place pull/stop label in recessed area of
pull/stop, covering screw head.
Repeat for remaining panel.
Mount rollers (F) to top channel of doors using
8-32 x 3/8" truss head screws (K). Rollers are to be
mounted on same side of doors as towel bars and at
the midpoint of slots.
E
D
K
F
8-32 x 3/8"
Truss Head
Screw
Towel Bar
Bracket
Assembly
Roller
Towel
Bar
Pull/Stop
Door Panel
Pull/
Stop
Pull Handles
TOWEL BAR / PULL HANDLE KIT (L)
Towel bar is to be mounted on inside panel facing
inside of shower. Pull handles are to be mounted
on outside surface of the outside panel.
Pull /
Stop
Label
Towel Bar Kit:
Towel Bar/ Pull
Handle Kit:
Towel bar for outside panel faces outside of shower,
while towel bar for inside panel faces inside of shower.
Pull/stops should be mounted on edge of panel closest
to jambs as shown in illustration.
8A x 1" Pan
Head Screw 8A x 1 1/4"
Flat Head
Screw
Pull/
Stop
Pull/
Stop
Pull/Stop
7 Towel Bar
(D)
8 Rollers
(F)
9 Hanging Door Panels
A
10 Caulking
OUTSIDE OF
BATH
Caulk
Caulk
Lift door panel into header with towel bar facing inside of
bath. Seat rollers on roller track while guiding bottom of
door into sill guide.
Repeat for remaining door, hanging panel with towel bar
facing outside of bath.
Adjust rollers up or down as needed in roller fin slots to
compensate for out-of-plump conditions, allowing
panels to hang straight.
