2PG1-GP 3/11

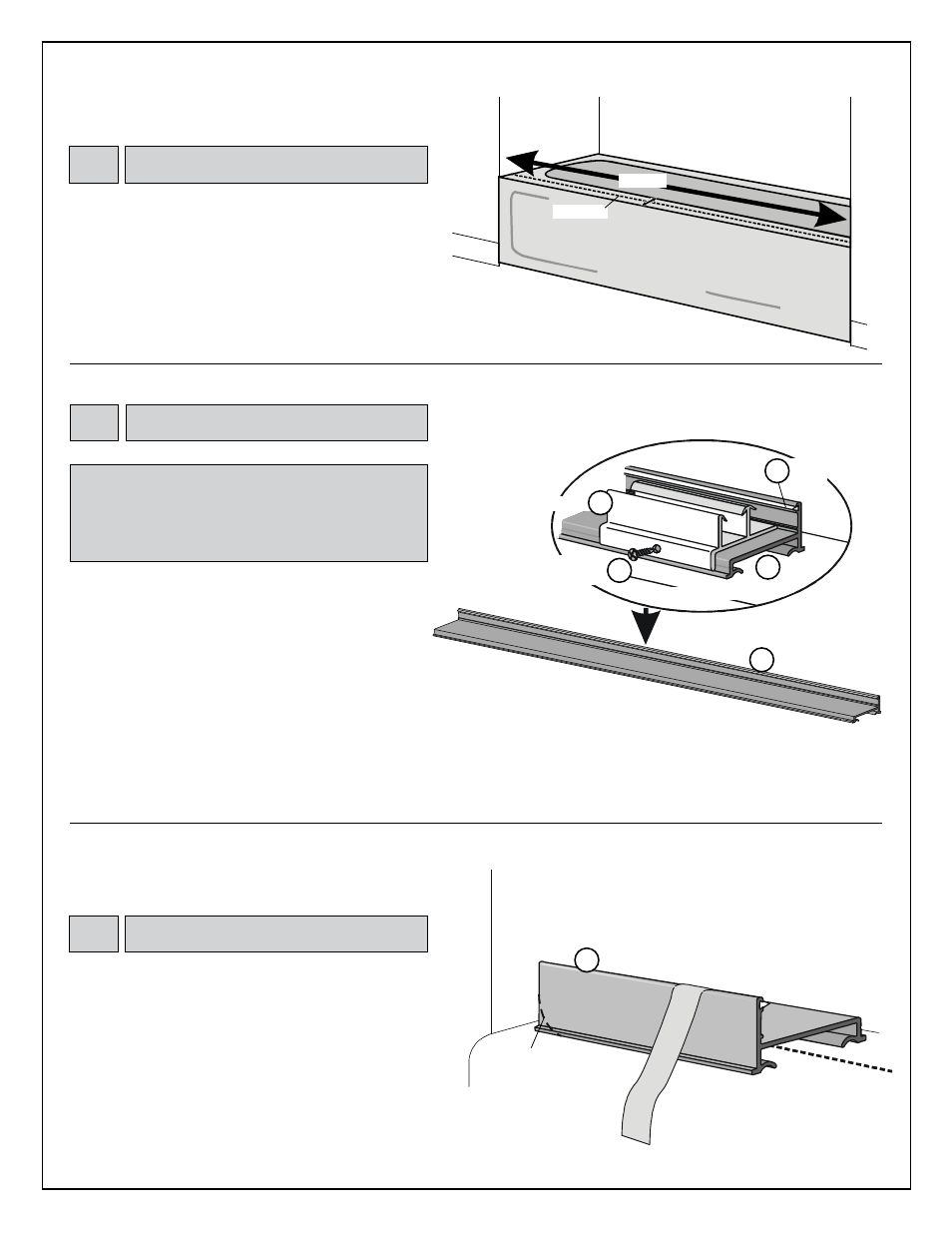

Cut sill (A) 3/4" less than centerline measurement.
Slide vinyl track guide (e) into small groove on upright
of sill. Trim end flush with edge of sill.
Locate center of sill. Position guide (N) at center of sill
with curved leg fitting over curve of sill, and back of guide
fitting under small lip on back upright of sill.
Position 1/8" drill bit in small groove on curved leg of
guide and drill through guide into sill. Secure guide to sill
with 8A x 3/8" pan head screw (O).
Position sill on centerline of tub with tall edge of sill
toward outside of tub. If necessary for a smooth fit, file
ends of sill to fit contour of unit.
Tape sill to tub with masking tape. This will help hold sill
in place while positioning jambs.
Sill
Centerline
Masking
Tape
A
Sill
A
8A x 3/8 Pan
Head Screw
Guide
Sill
A
N
Place guide at
center of sill.
OUTSIDE OF baTH
InSIDE OF baTH
O
2
Sill
(A)
/ Guide
(N)
3
Sill
(A)
Due to the manufacturing process, there may be
rack marks present at one end of your sill and
header. Sill and header must be trimmed to fit your
individual opening. When cutting sill and header,
make certain to trim off end with rack marks.
1
Centerline
Measure your threshold width and determine the
centerline. Measure wall to wall at tub level on the
centerline.
Measure
OUTSIDE OF baTH
Centerline
File to fit
contour
of unit
vinyl Track
Guide
E
