Caulking – Coral Industries 6000 Swing Door/DPNL - 563 User Manual
Page 8
563-GP 2/06

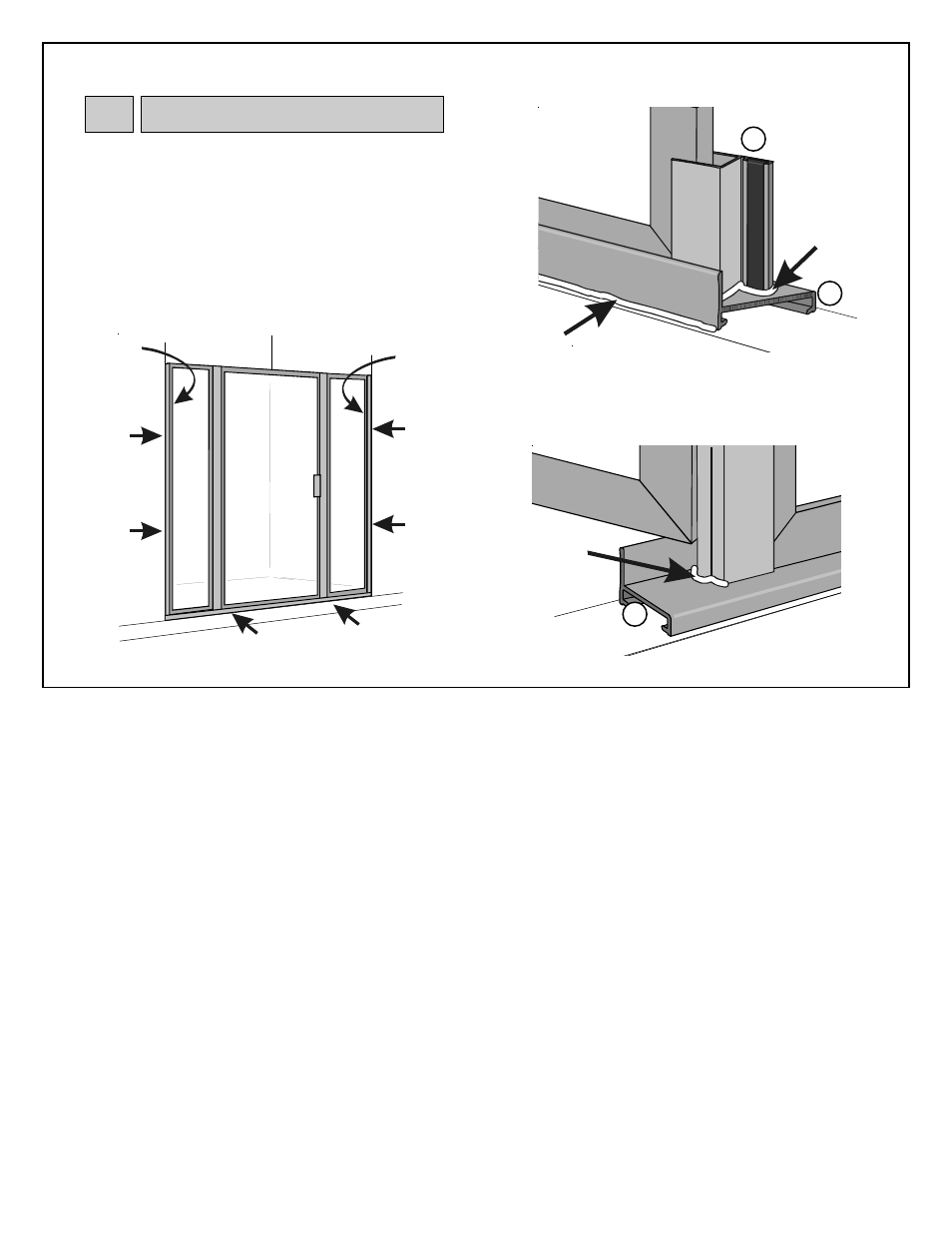

The use of a caulking compound will assure a water-
tight seal of your enclosure. Apply caulk along outside
edge of enclosure where metal and shower meet,
especially where sill meets threshold. If desired, caulk
inside of enclosure where jambs meet walls.
On opening side of door, caulk joint on sill where
magnetic door stop and sill meet. On opposite side,
caulk where hinge door stop and sill meet.
OUTSIDE OF
SHOWER
INSIDE OF SHOWER
Caulk
E
Magnetic
Door Stop
Sill
Caulk
A
Door Panel
10
Caulking
Hinge Door Stop
Caulk
Caulk
OUTSIDE OF SHOWER
Caulk
Sill
A
Caulk
