LEDs

6C105 Overview and Setup Guide

2-5

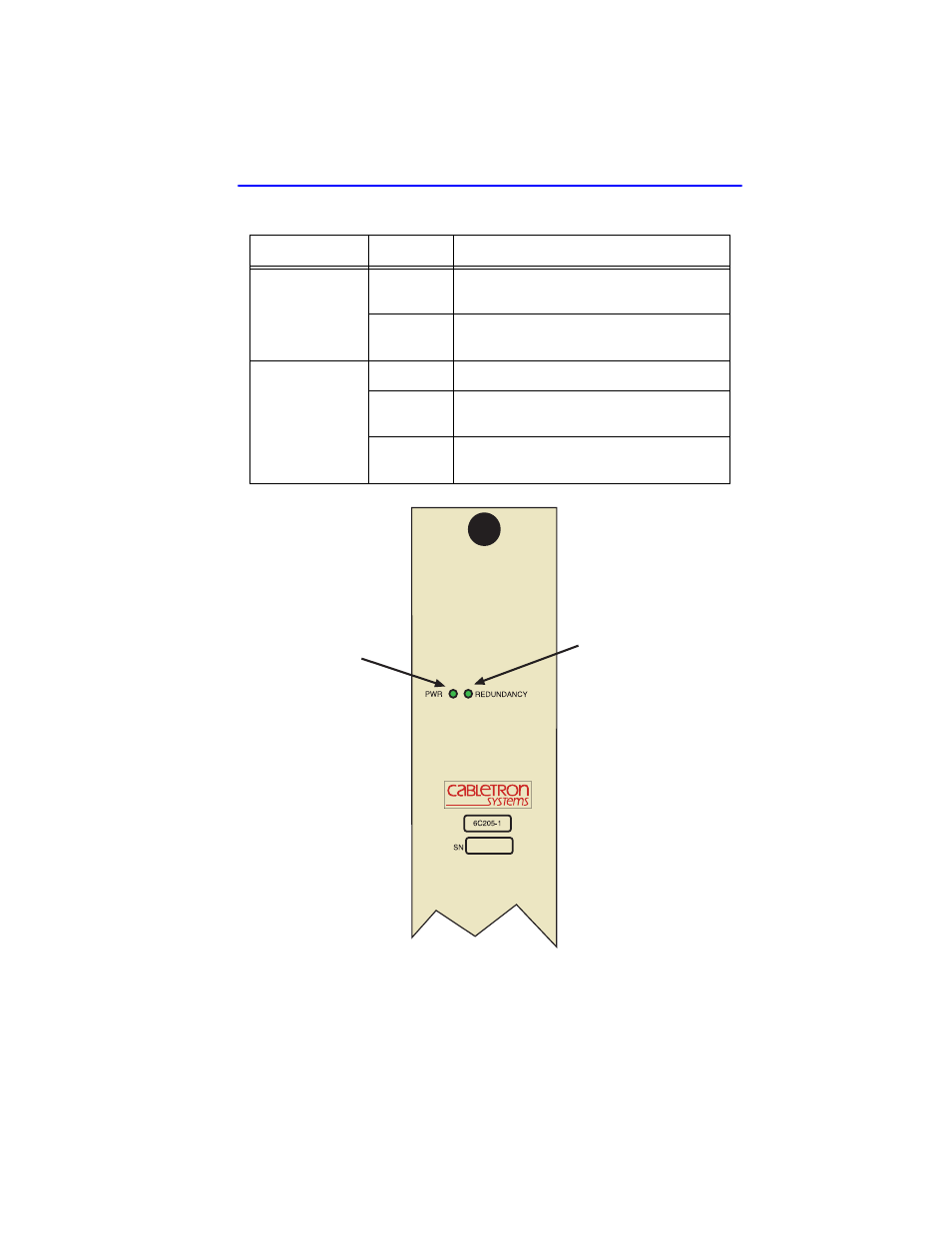

Figure 2-1

Power Supply LEDs

Table 2-1

Power Supply LED States and Their Definitions

LED Name

Color

Status

PWR (Power)

Green

All outputs and input of the power supply
are within regulation.

Red

Any output or input of the specific power
supply is out of regulation.

REDUNDANCY

Green

Redundancy is available.

Amber

Redundancy is possible, but not available
(two power supplies are installed).

Off

Redundancy not possible. (One power
supply installed.)

Redundancy LED

PWR LED
