Chapter 1: Introduction
1-4 6C105 Overview and Setup Guide
1.6 OVERVIEW
The Cabletron Systems 6C105 chassis design provides five 2.4-inch slots
that can contain a variety of interface modules. The chassis supports
redundant power supplies, LANVIEW Diagnostic LEDs, and is 19-inch
rack mountable. All chassis components (power supplies, fan tray, and
modules) are installed from the front of the chassis for ease of
maintenance. All LED indicators are observable from the front of the
chassis to aid in monitoring network operational status and performing
maintenance.

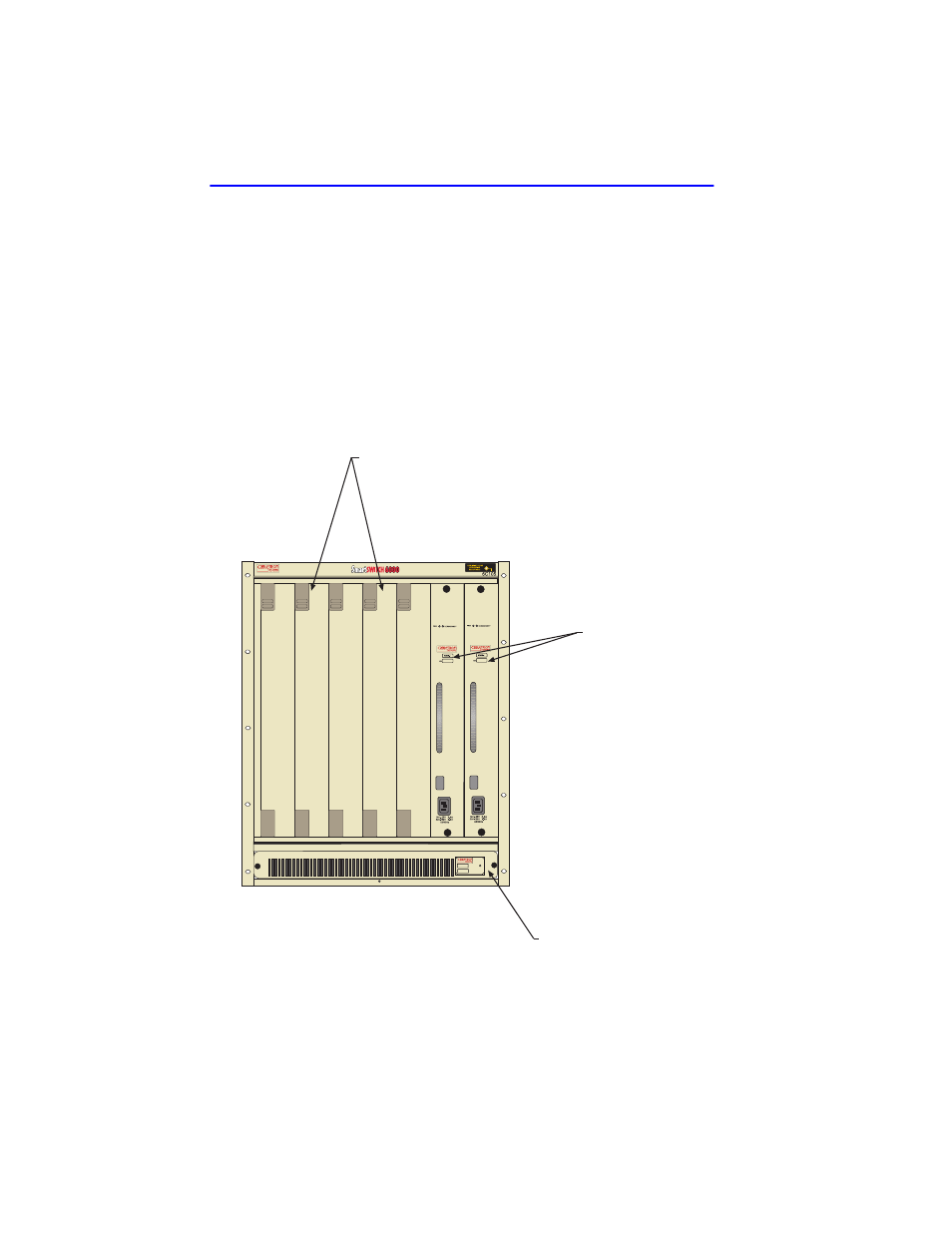

Figure 1-1 illustrates the 6C105 equipped with redundant
power supplies.
Figure 1-1 The 6C105 Chassis with Redundant Power Supplies
1 2 3 4 5 PS1 PS2
Module slots (5)
Fan Tray
Redundant power
supply modules (2)
2016_02
6C405
